Maintenance 117
Replacing the cooling fan of the inverter module (R8i, 2 × R8i,
3×R8i)
WARNING! Obey the safety instructions, page 11. If you ignore the instructions,
physical injury or death, or damage to the equipment can occur.
1. Stop the inverter and do the steps in section Precautions before electrical work on
page 12 before you start the work.
2. Open the inverter cubicle door.

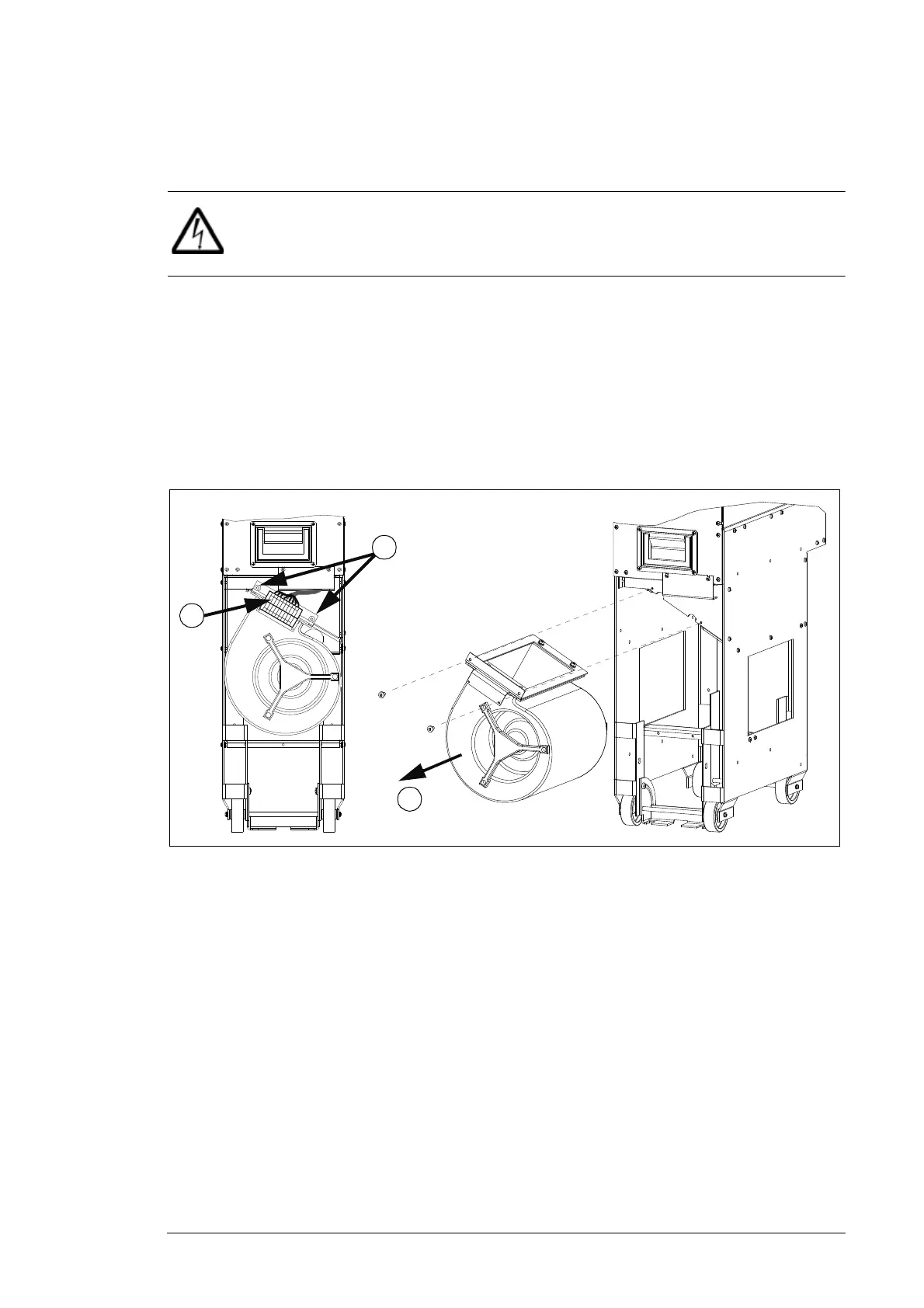

3. Disconnect the fan wiring plug (a).
4. Remove the locking screws (b).
5. Pull the fan out along its sliding rails (c).
6. Install new fan in reverse order.
c
b
a
