34 Operation principle and hardware description

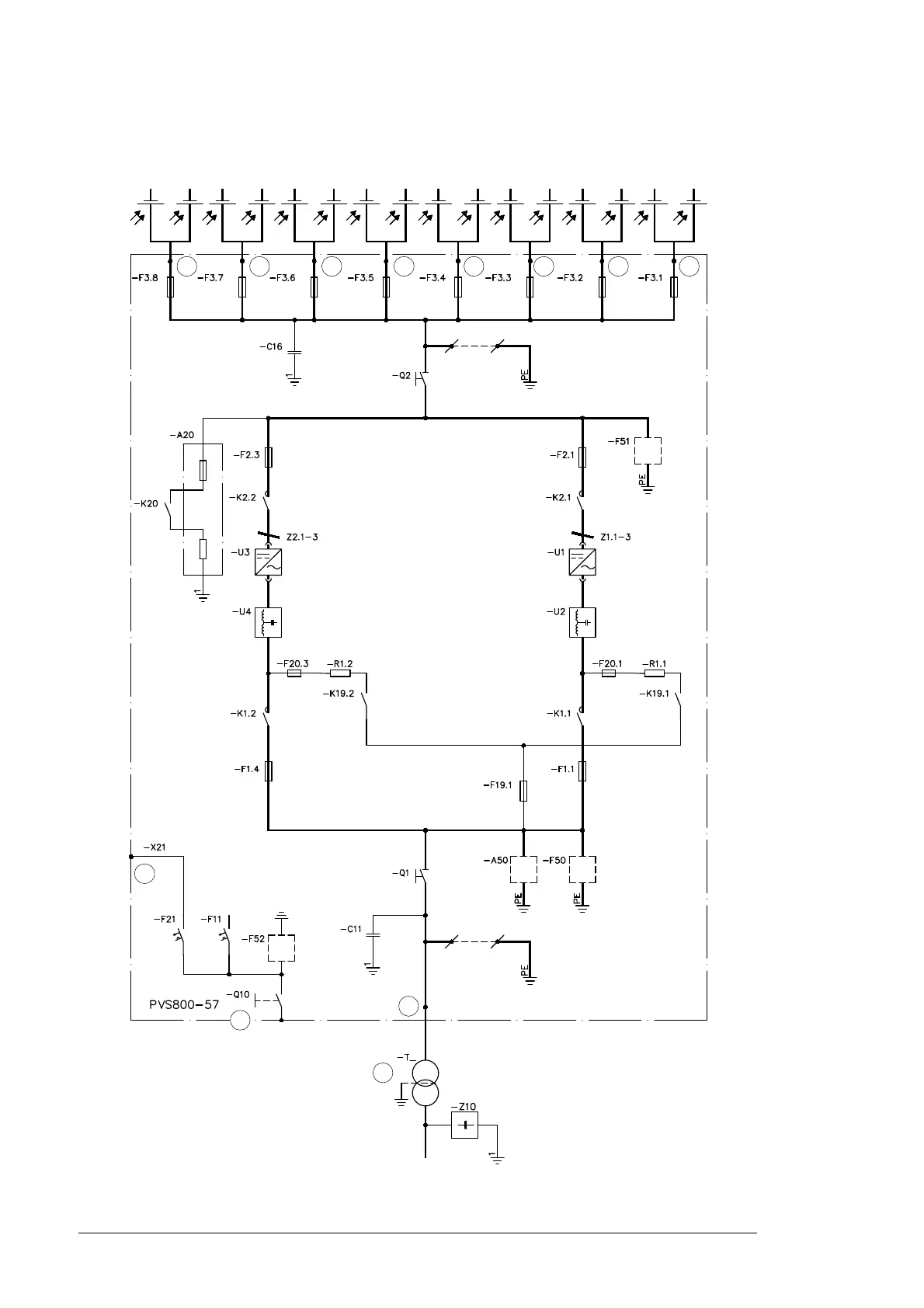

Example main circuit diagram of the inverter system
(2 × R8i)
1
2
4
3
5
Option +E216
IT network only
1 1 1 1 1 1 1
Grid
Auxiliary power supply
