ABB PVS800-57-0100kW-A User Manual

56 Operation principle and hardware description
Type designation labels
 Inverter label

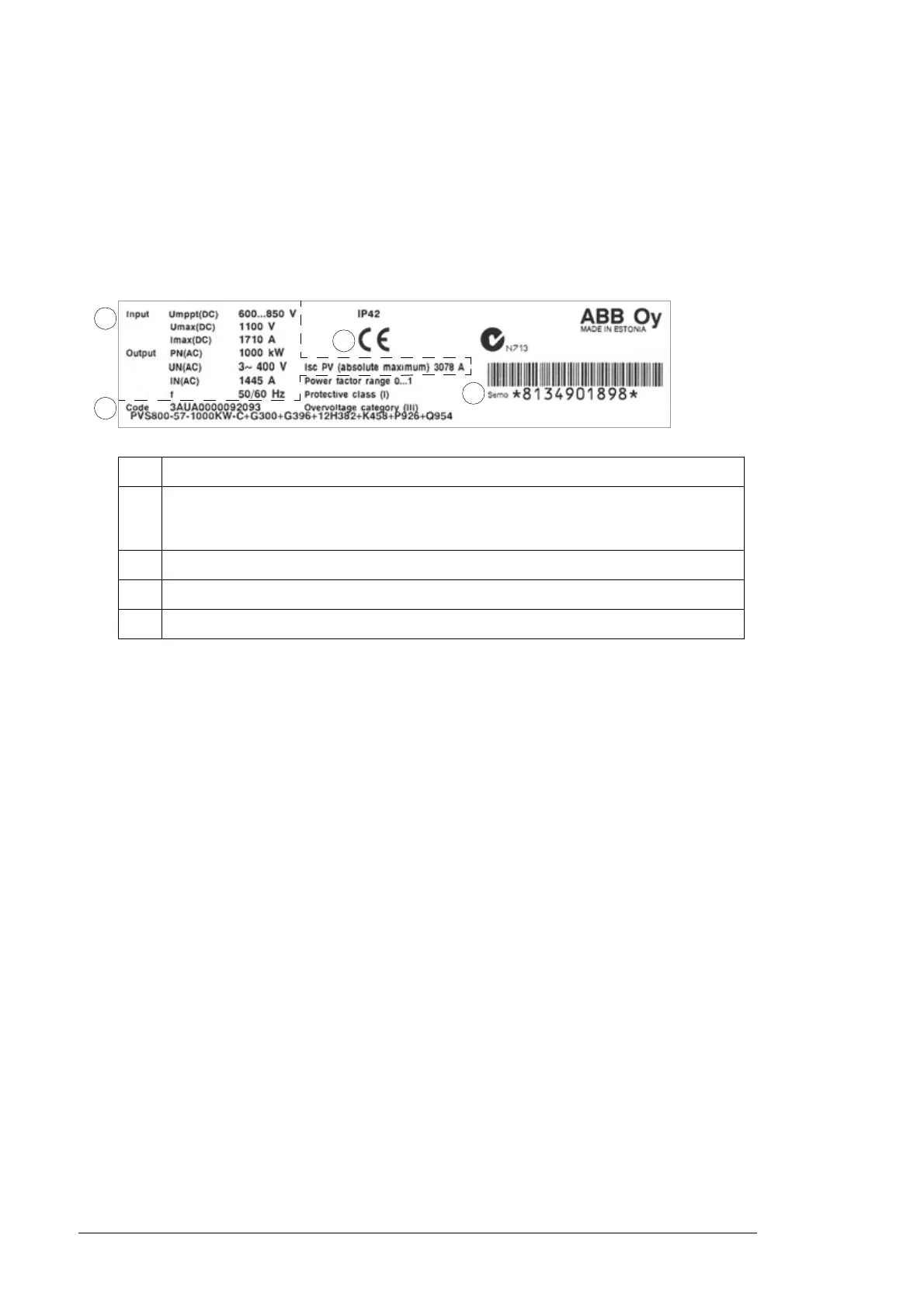

The type designation label of the inverter includes the ratings, valid markings, a type
designation and a serial number, which allow individual recognition of each inverter. The
type designation label is located on the front cover of the inverter cabinet. An example
label is shown below.
No. Description
1 Serial number. The first digit of the serial number refers to the manufacturing plant. The next
four digits refer to the unit’s manufacturing year and week, respectively. The remaining
digits complete the serial number so that there are no two units with the same number.
2 Type designation, see section Type designation key below.
3 Valid markings
4 Ratings of inverter
1
2
3
4

ABB PVS800-57-0100kW-A Specifications

General

Model	PVS800-57-0100kW-A
Type	Central Inverter
Rated AC Power	100 kW
Max. DC Voltage	1000 V
Output Voltage	400 V
Frequency	50/60 Hz
Cooling Method	Forced air cooling
Protection Level	IP54
Operating Temperature Range	-25°C to +60°C
