68 Mechanical installation

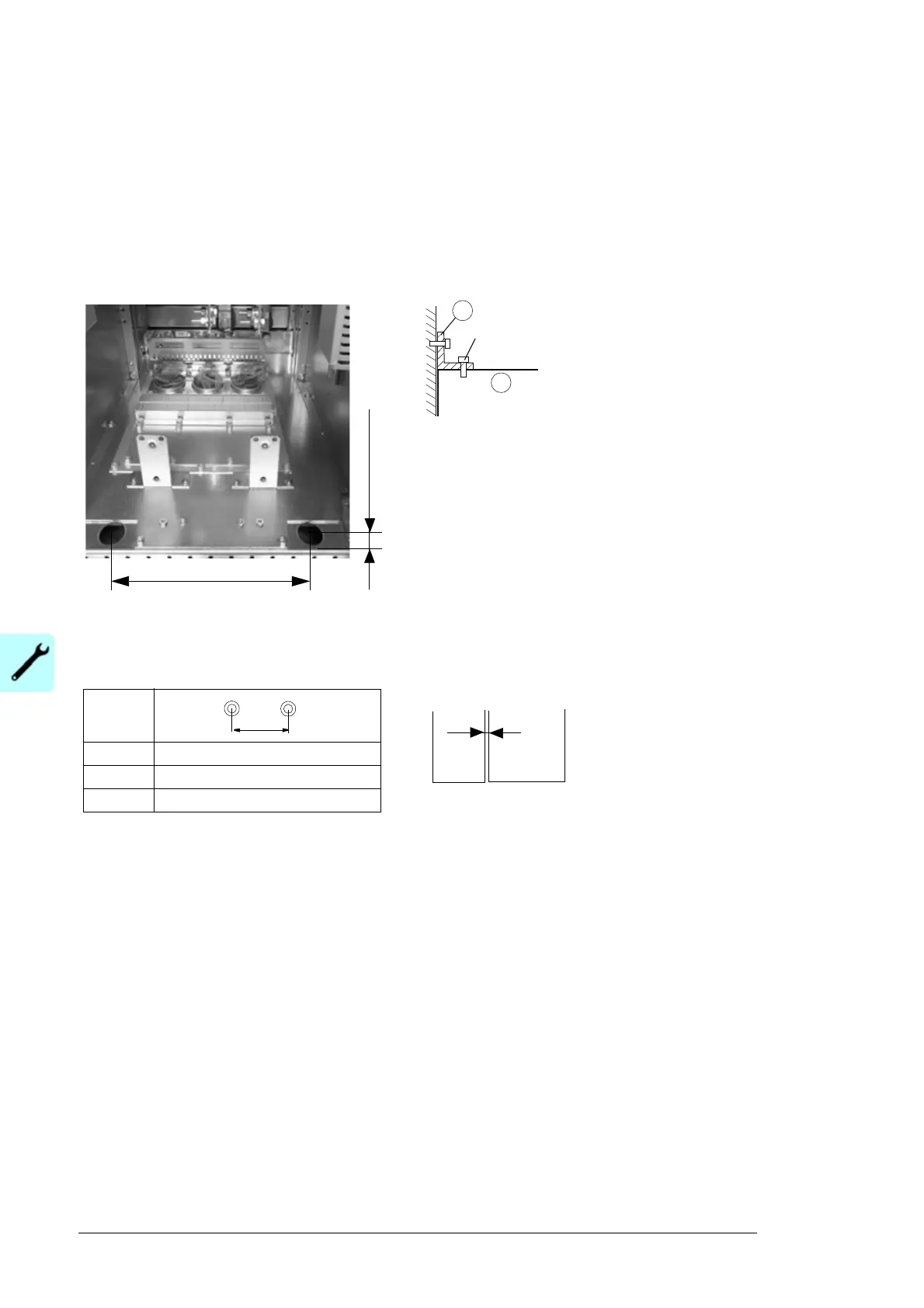

Alternative 2 – Using the holes inside the cabinet
The cabinet can be fastened to the floor using the fastening holes inside the cabinet, if
they are accessible. The recommended maximum distance between the fastening points
is 800 mm (31.5”).
If the back fastening holes are not accessible, fasten the top of the cabinet to the wall with
L-brackets (not included in the delivery). Use the lifting bar fastening holes and bolts
(M16).
0.5
IP42
Added width:
Side panels of the cabinet: 15 mm (0.6”)
Back panel of the cabinet: 10 mm (0.4”)
Gap between cubicles (mm):
Fastening holes inside the cabinet.
a) Cubicle width
b) Distance between fastening holes. Outer hole
diameter 31 mm (1.22”). Bolt size: M10 or M12
a
(mm)
400 250 mm (9.85”)
600 450 mm (17.7”)
800 650 mm (25.6”)
b
(0.02”)
b
25 mm (0.985”)
Fastening the cabinet at the top with L-brackets
(side view)
a) L-bracket
b) Cabinet roof
M16
a
b
