Mechanical installation 67

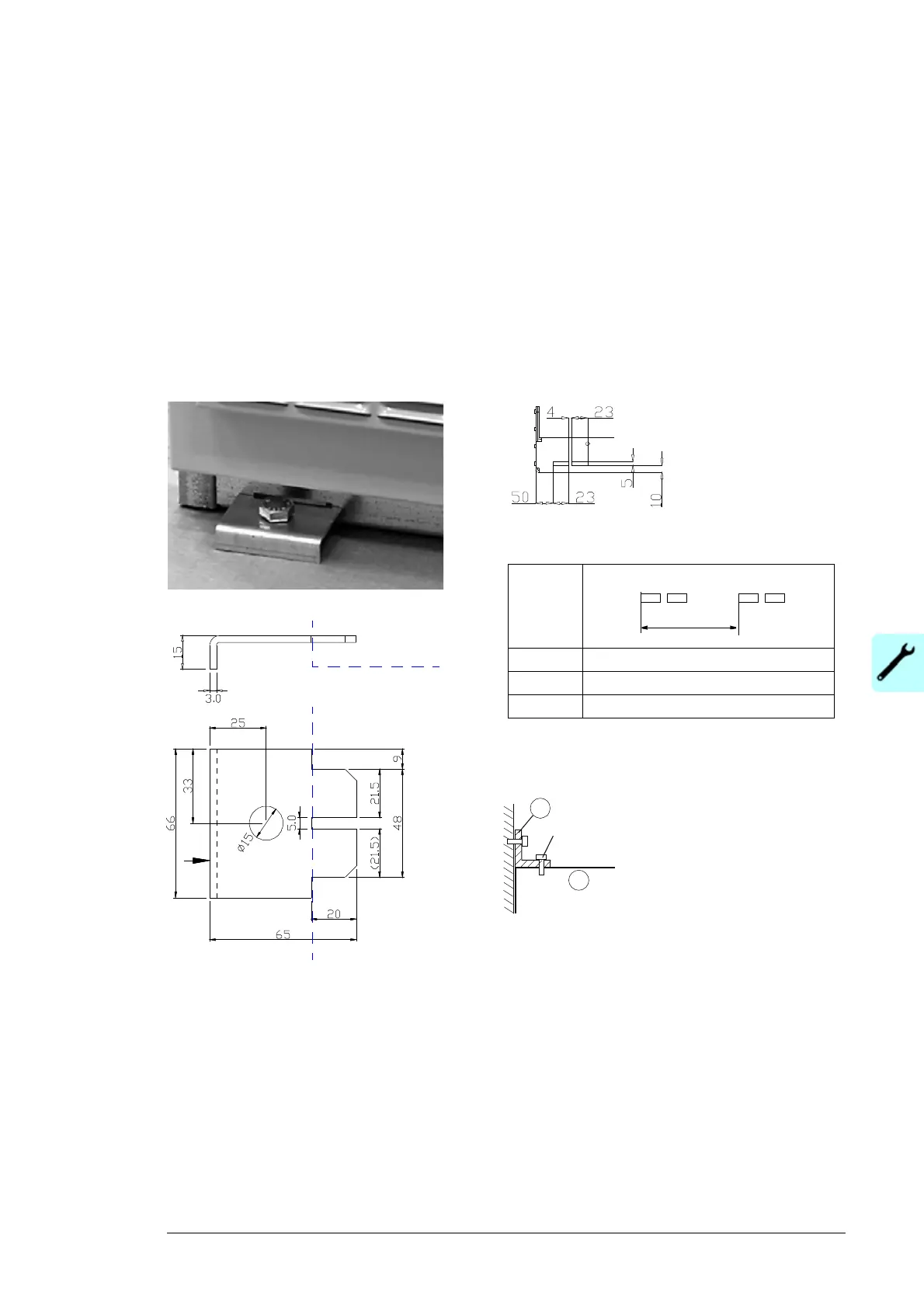

Fastening the cabinet to the floor
The cabinet must be fastened to the floor by using clamps along the edge of the cabinet
bottom, or by bolting the cabinet to the floor through the holes inside.
Alternative 1 – Clamping
Insert the clamps into the twin slots along the front and rear edges of the cabinet frame
body and fasten them to the floor with a bolt. The recommended maximum distance
between the clamps is 800 mm (31.5”).
If there is not enough working space behind the cabinet for mounting, fasten the top of the
cabinet to the wall with L-brackets (not included in the delivery). Use the lifting bar
fastening holes and bolts (M16).
Cubicle
width
Distance between slots
400 mm 250 mm (9.85”)
600 mm 450 mm (17.7”)
800 mm 650 mm (25.6”)
Clamp dimensions in millimetres. The
dotted line denotes the cabinet frame.
Fastening the cabinet at the top with L-brackets (side
view)
a) L-bracket
b) Cabinet roof
M16
Slot detail, front view (dimensions in millimetres)
Clamp
a
b
