ABB PVS800-57-0100kW-A User Manual

26 Operation principle and hardware description
Product overview
The PVS800-57 is a central inverter for converting, adjusting and conveying power
generated by a solar generator to the electrical power system.
The inverter is built in an air-cooled cabinet for indoor use. Cooling air is let in through the
gratings at the lower part of the cabinet door. The air outlet is at the cabinet roof.
As standard, the solar generator is connected to the DC input terminals of the inverter with
busbars and fuse links. Miniature circuit breakers can be used for connecting solar array
junction boxes as option (+H377) for PVS800-57-0100kW.

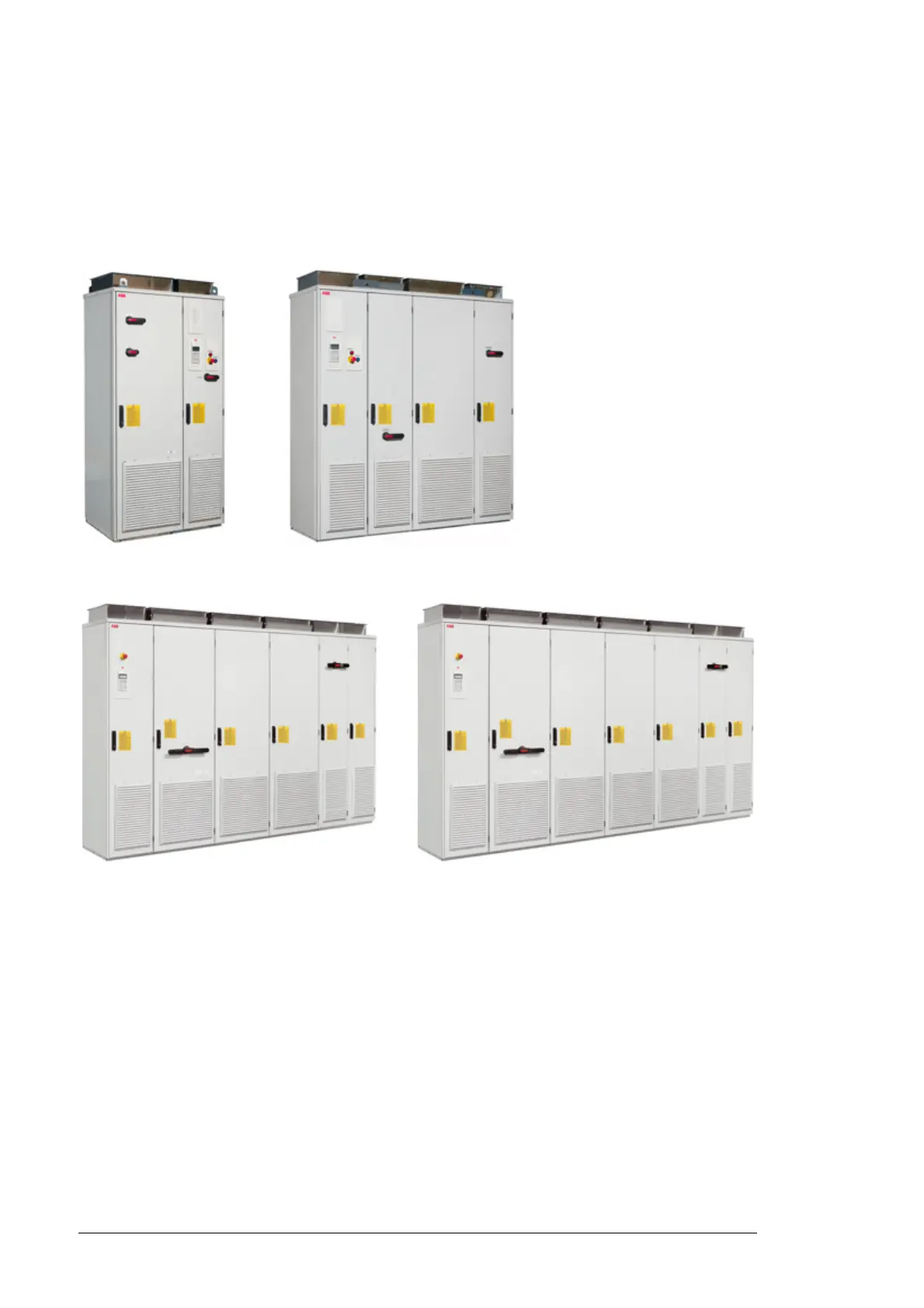

PVS800-57-0100kW PVS800-57-0250kW and PVS800-57-
0315kW
PVS800-57-0500kW and PVS800-57-
0630kW
PVS800-57-0875kW and PVS800-57-1000kW
