Maintenance 119

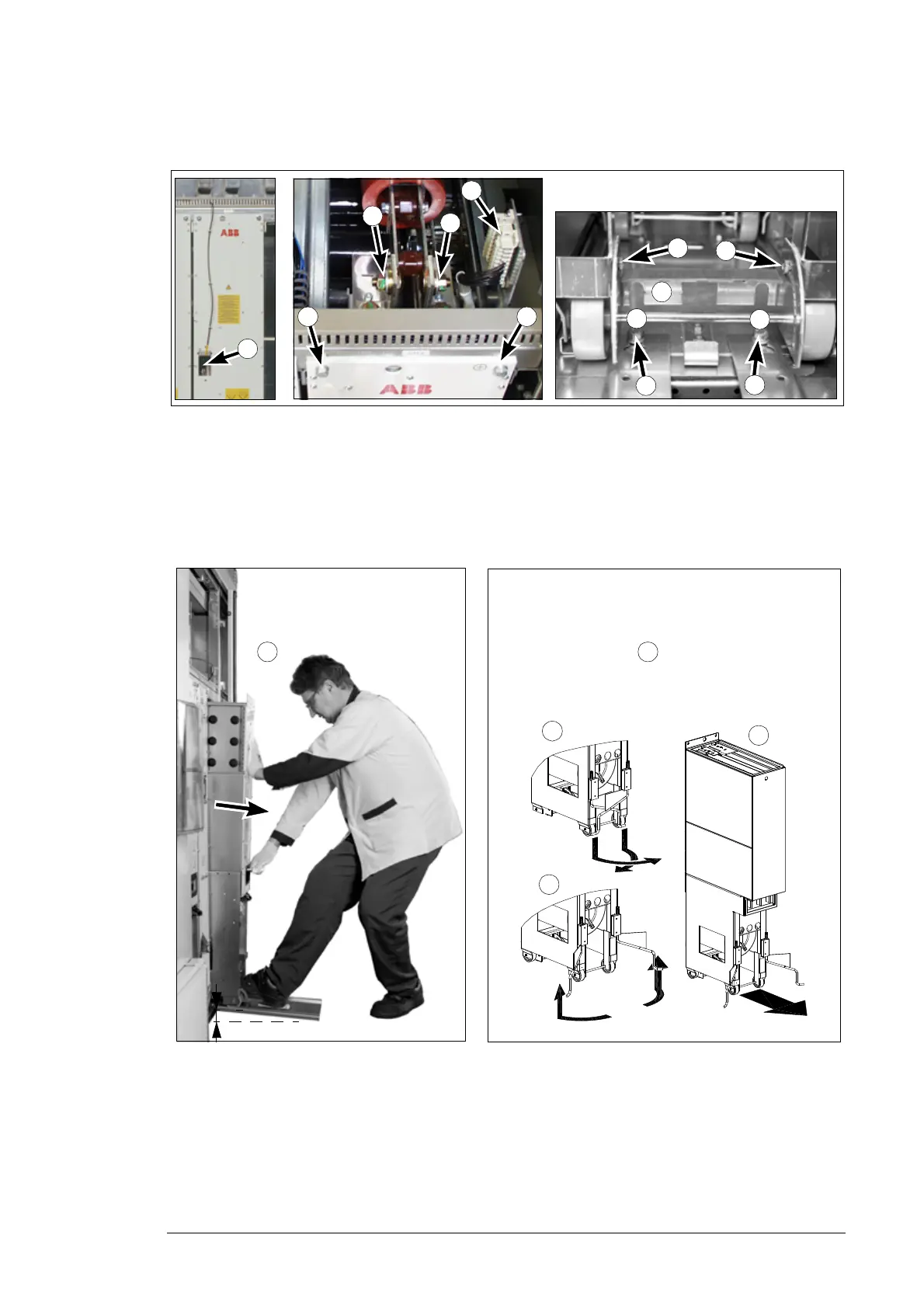

8. Insert the module pull-out ramp under the two bolts at the base of the module and
tighten the bolts carefully.
9. Pull the module carefully out of the cubicle along the ramp. Make sure the wires do not
catch. While pulling on the handle, keep a constant pressure with one foot on the base
of the module to prevent the module from tipping over. Use safety shoes with metal toe
cap to avoid foot injury.
10. Extend the support legs of the module. Keep the legs extended until the module is
about to be inserted back into the cubicle.
5
5
7a7a
6
4
8
8
7c
7c
7b
7b
7c
max 50 mm
9 10
a
b
c
