5. Undercurrent protection for SCB

6. Reconnection inhibit protection for SCB

7. Restrike condition detection

CBPGAPC function can be used to provide the last four types of protection mentioned

in the above list.

3.7.13.2 Setting guidelines

This setting example will be done for application as shown in figure

212:

Preprocessing

Function Block

Capacitor bank

protection function

400kV

CBPGAPCSMAI

200MVAr

400kV

500/1

IED

IEC09000754-1-en.vsd

IEC09000754 V1 EN

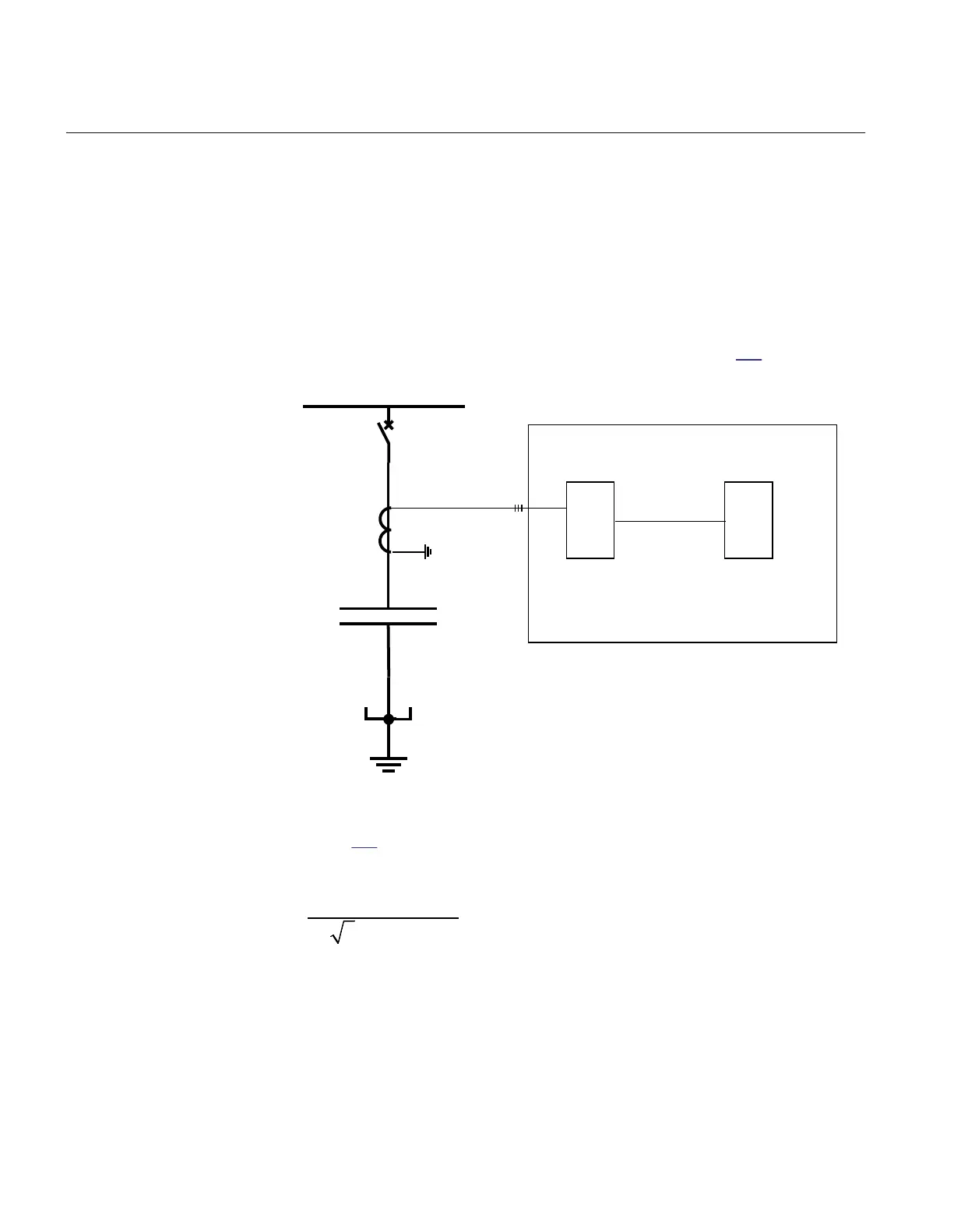

Figure 212: Single line diagram for the application example

From figure 212 it is possible to calculate the following rated fundamental frequency

current for this SCB:

1000 200[ ]

289

3 400[ ]

MVAr

I A

= =

IEC09000755 V1 EN

(Equation 396)

or on the secondary CT side:

Section 3 1MRK504116-UUS C

IED application

498

Application manual
