IEC07000077 V1 EN

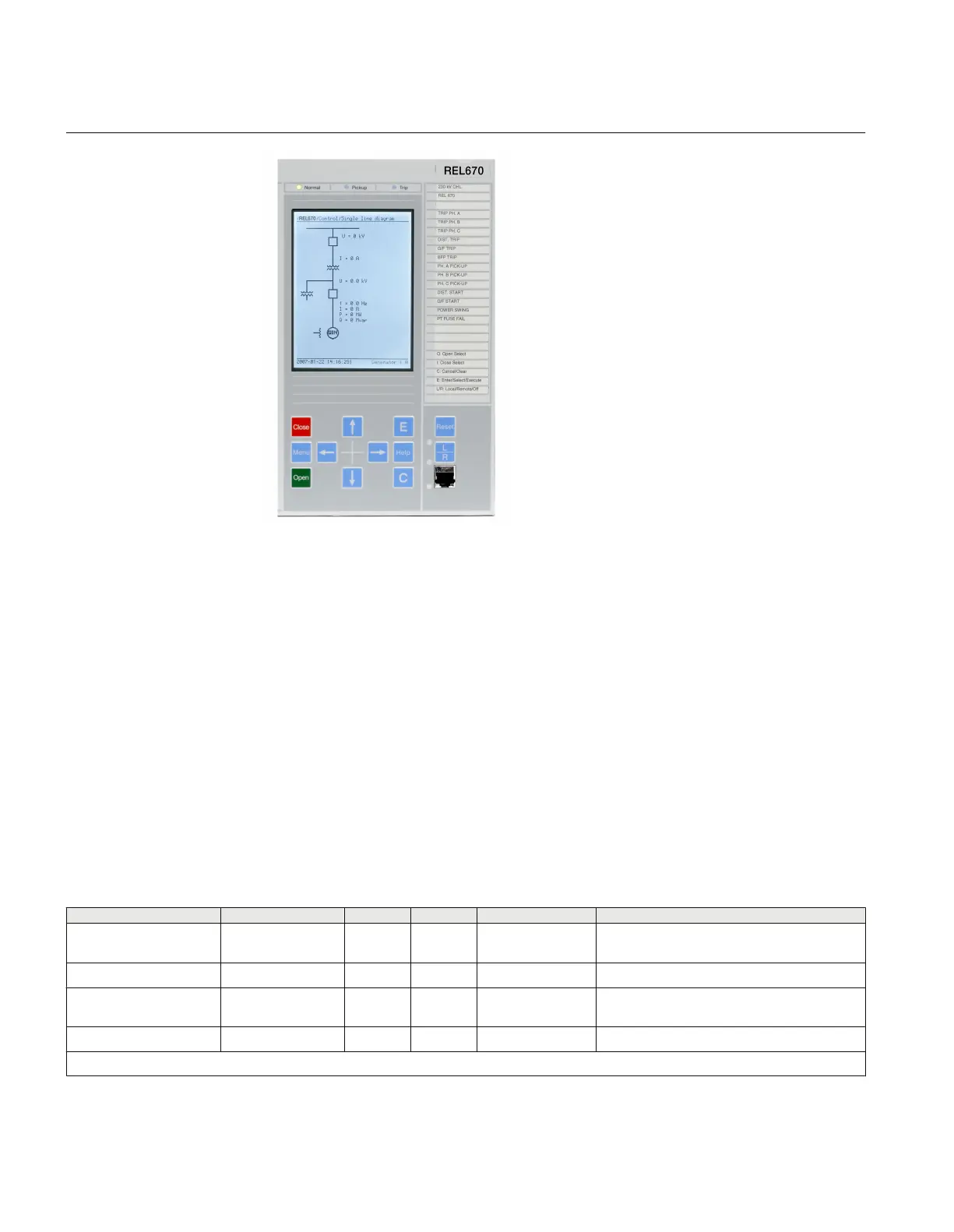

Figure 20: Medium graphic HMI, 15 controllable objects

3.3.2 Local HMI related functions

3.3.2.1 Introduction

The local HMI can be adapted to the application configuration and to user preferences.

• Function block LocalHMI

• Function block LEDGEN

• Setting parameters

3.3.2.2 General setting parameters

Table 7: SCREEN Non group settings (basic)

Name

Values (Range) Unit Step Default Description

Language English

OptionalLanguage

- - English Local HMI language

DisplayTimeout 10 - 120 Min 10 60 Local HMI display timeout

AutoRepeat Disabled

Enabled

- - Enabled Activation of auto-repeat (On) or not (Off)

ContrastLevel -10 - 20 % 1 0 Contrast level for display

Table continues on next page

Section 3 1MRK504116-UUS C

IED application

Application manual
