ABB RET670 Applications Manual

Name Values (Range) Unit Step Default Description
MinRepIntVal10 0 - 3600 s 1 2 Minimum reporting interval input 10
MinRepIntVal11 0 - 3600 s 1 2 Minimum reporting interval input 11
MinRepIntVal12 0 - 3600 s 1 2 Minimum reporting interval input 12
MinRepIntVal13 0 - 3600 s 1 2 Minimum reporting interval input 13
MinRepIntVal14 0 - 3600 s 1 2 Minimum reporting interval input 14
MinRepIntVal15 0 - 3600 s 1 2 Minimum reporting interval input 15
MinRepIntVal16 0 - 3600 s 1 2 Minimum reporting interval input 16
3.15.4 Logical signal status report BINSTATREP
Function description IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Logical signal status report BINSTATREP - -
3.15.4.1 Application
The Logical signal status report (BINSTATREP) function makes it possible for a SPA
master to poll signals from various other function blocks.
BINSTATREP has 16 inputs and 16 outputs. The output status follows the inputs and
can be read from the local HMI or via SPA communication.
When an input is set, the respective output is set for a user defined time. If the input
signal remains set for a longer period, the output will remain set until the input signal
resets.
t t
INPUTn
OUTPUTn
IEC09000732-1-en.vsd
IEC09000732 V1 EN

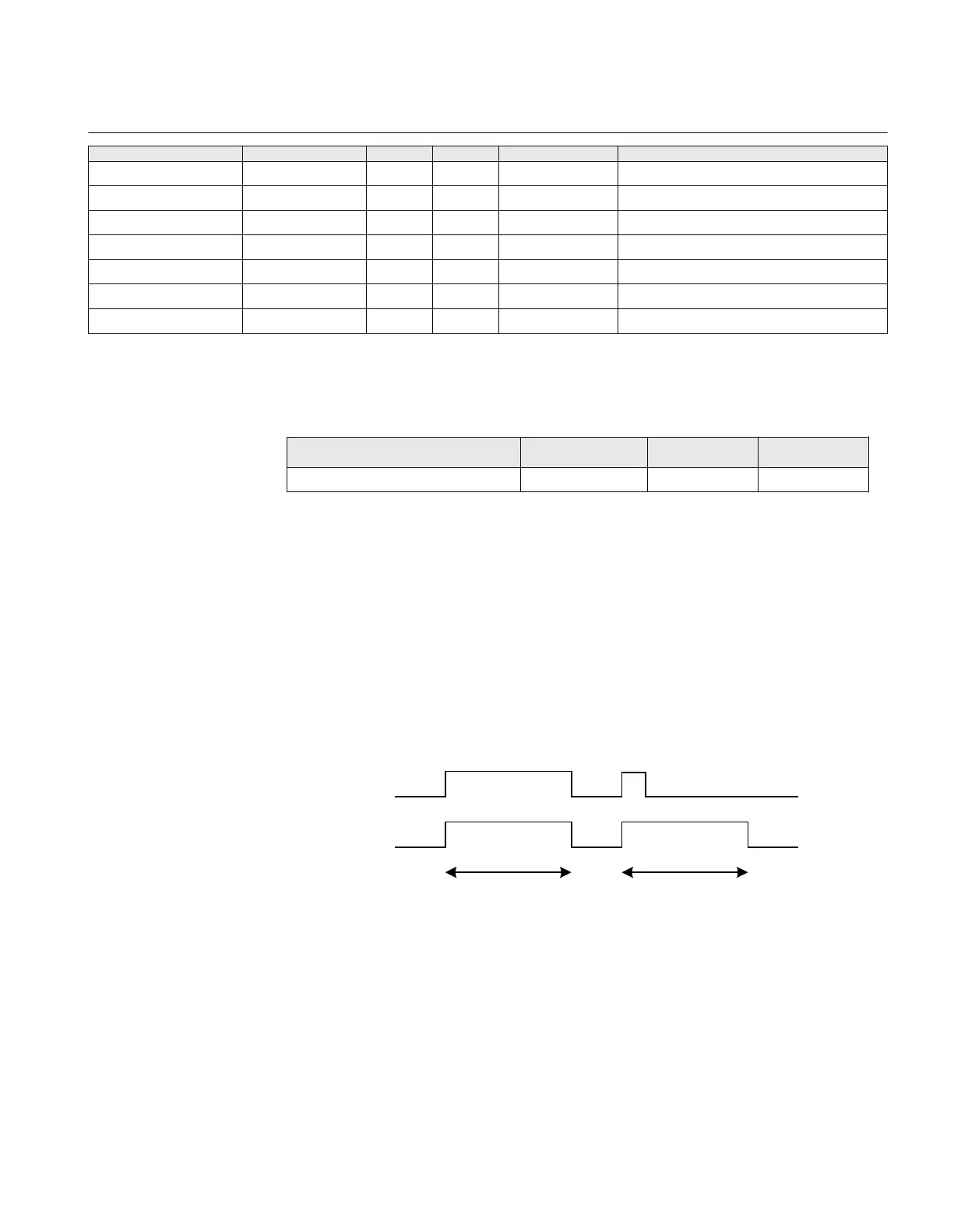

Figure 309: BINSTATREP logical diagram
1MRK504116-UUS C Section 3
IED application
779
Application manual

ABB RET670 Specifications

General

Rated Frequency	50/60 Hz
Inputs	Analog and binary inputs
Application	Protection of power systems
Communication Protocols	IEC 61850, DNP3, Modbus
Operating Temperature Range	-25°C to +55°C
Mounting	Rack mounted
Number of Binary Inputs	Up to 48
Number of Binary Outputs	32
Protection Functions	Overcurrent Protection
Outputs	Binary outputs
Enclosure	IP 54
Type	Line Differential Protection
Number of Analog Inputs	24
