Section 7 Heater Module Control Board
Abbott VP 2000™ Processor Service Manual 7-51
30-608308/R1—September 2008

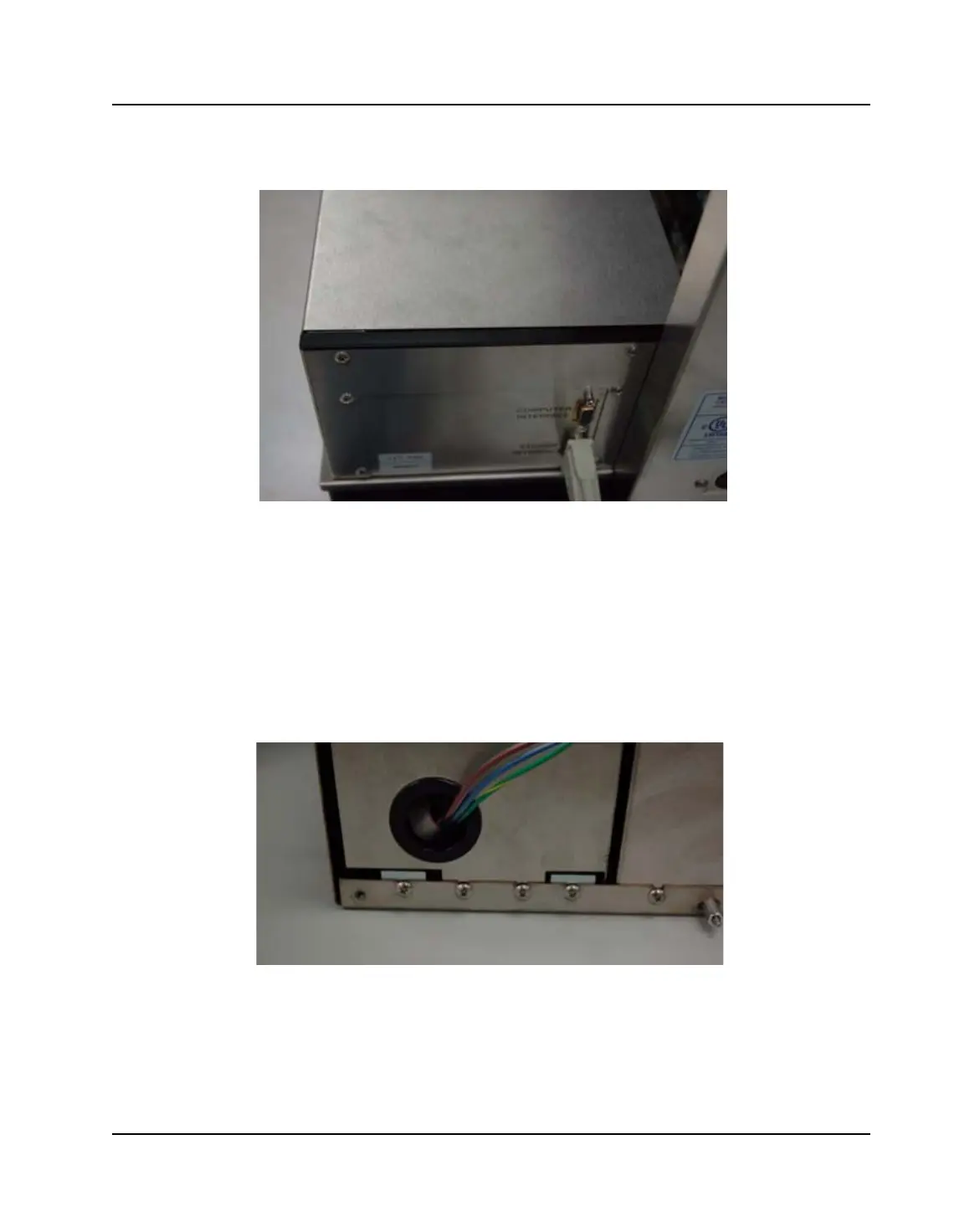

Figure 7.22: Heater Module Right-Side Cover Hinge
8. Disconnect the Sensor Bar Interface Cable from the Sensor
Bar and remove the Top Cover from the Heater Module.
9. Remove 11 6-32 x 1/4 Phillips-Head screws from the
Heater Module outer skins then remove the outer skins.
10. Loosen two (2) 6-32 x 1/4 Phillips-Head screws on the
Heater Module left-side facing the rear of the Heater
Module.
Figure 7.23: Control Module Cover Rear
11. Lift the Heater Module Control Board cover to access the
Sensor Bar Interface Cable connection to the Control
Board.
