Repair, Replacement of Spare Parts Section 7
7-54 Abbott VP 2000™ Processor Service Manual
30-608308/R1—September 2008
18. Disconnect the “BLUE” wire from the “N” connector. Be
careful when disconnecting the “BLUE” connector due to
the sharp corner. Use needle-nose pliers to disconnect.

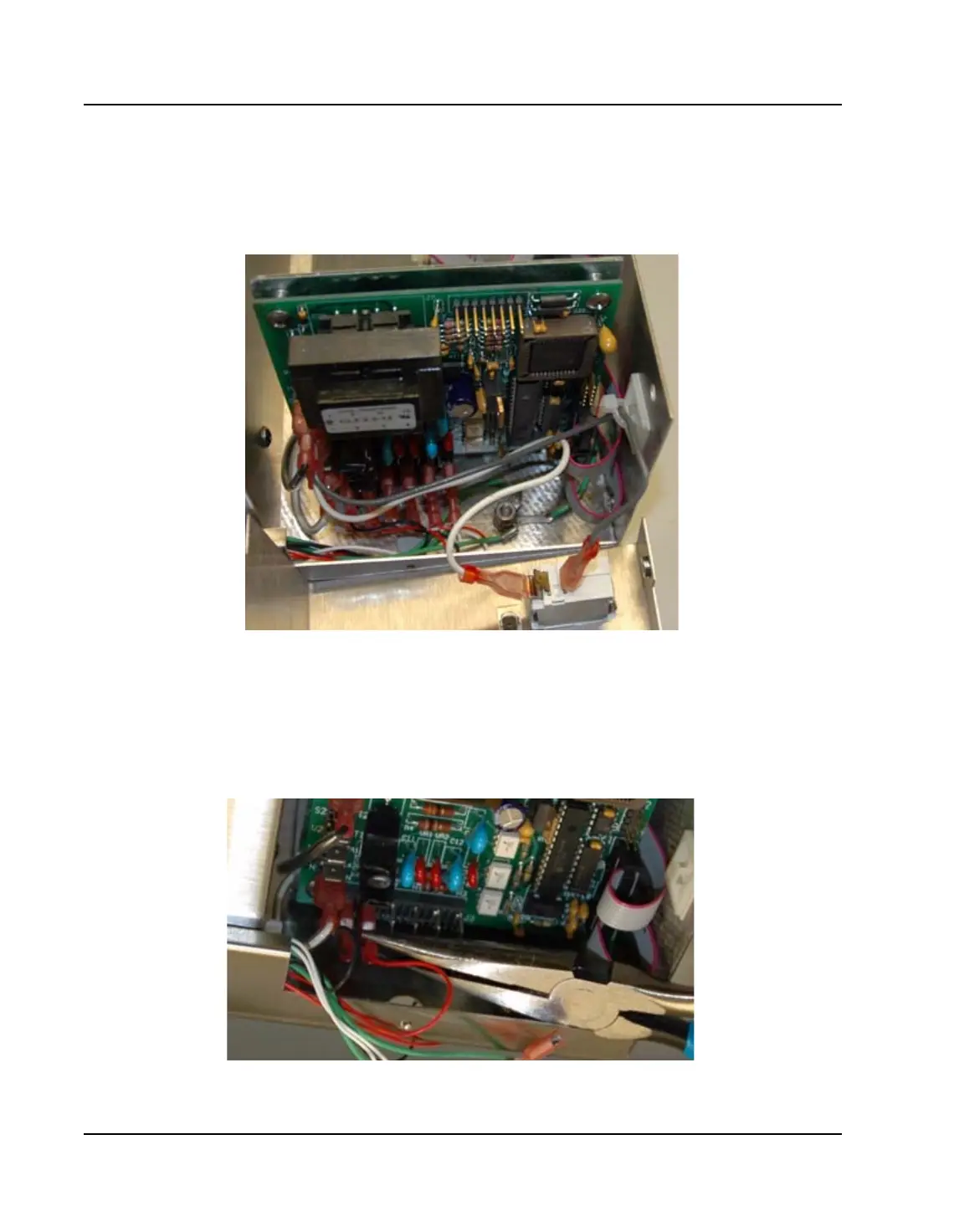

Figure 7.28: Heater Module Control Board Connections
19. Disconnect the Stainer Interface Ribbon Cable from the
center connector on the board right-side.
20. Disconnect the Computer Interface Ribbon Cable from
the bottom connector on the board right-side.
Figure 7.29: Connector with Pliers
