Section 7 Heater Module Control Board
Abbott VP 2000™ Processor Service Manual 7-53
30-608308/R1—September 2008

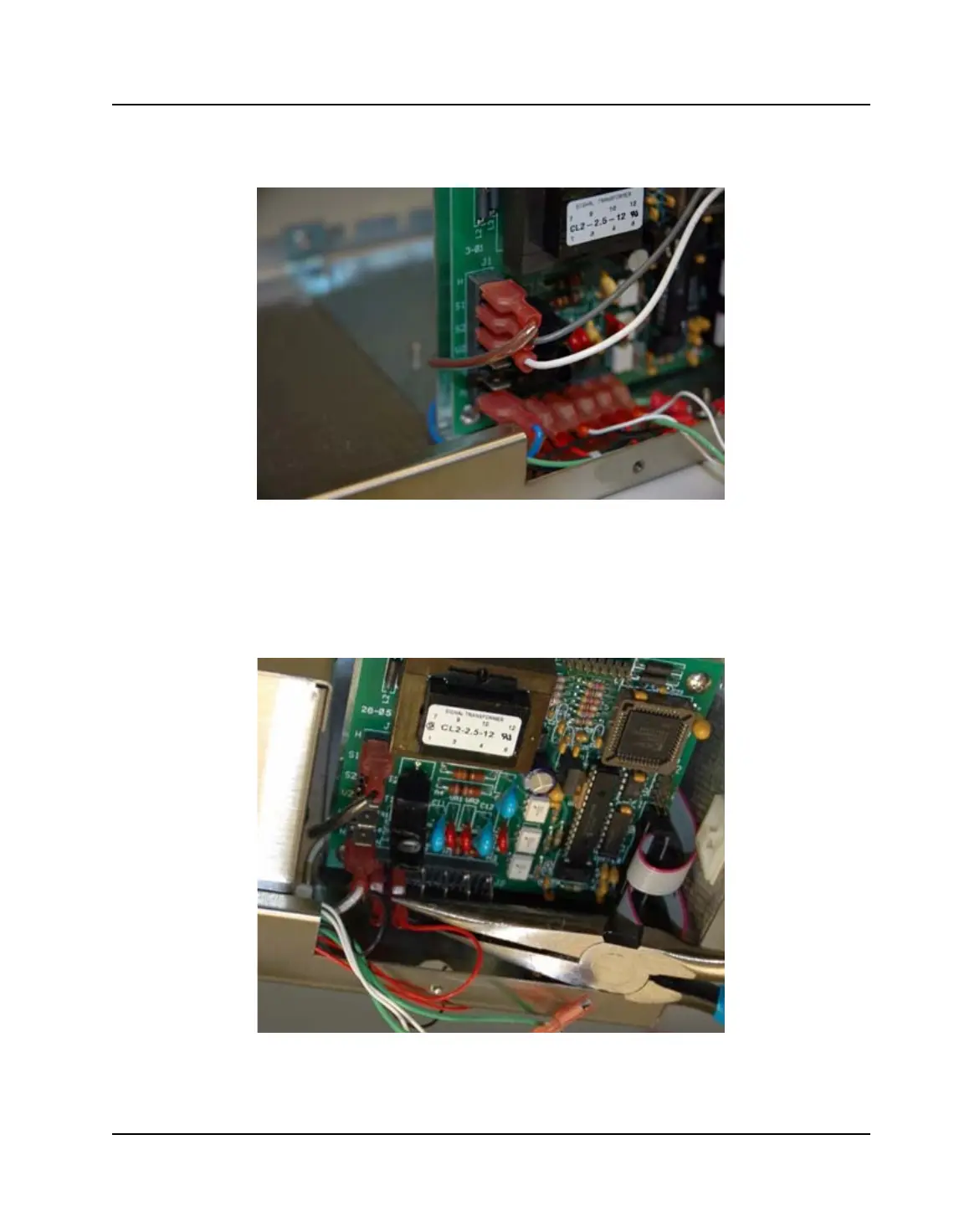

Figure 7.26: Control Board Power-Safety Connections
15. Disconnect the “RED” wire from the “H” connector.
16. Disconnect the “GRAY” wire from the “S1” connector.
17. Disconnect the “WHITE” wire from the “S2” connector.
Figure 7.27: Connector with Pliers
