Accutome A-Scan Plus Connect - Accutome Ultrasonic Probe Kit (PN 24-4001); Figure 3-3 Accutome Ultrasonic Probe Kit (PN 24-4001); Figure 3-4 Accutome Probe

17
Accutome A-Scan Plus Connect User’s Guide
Getting Started

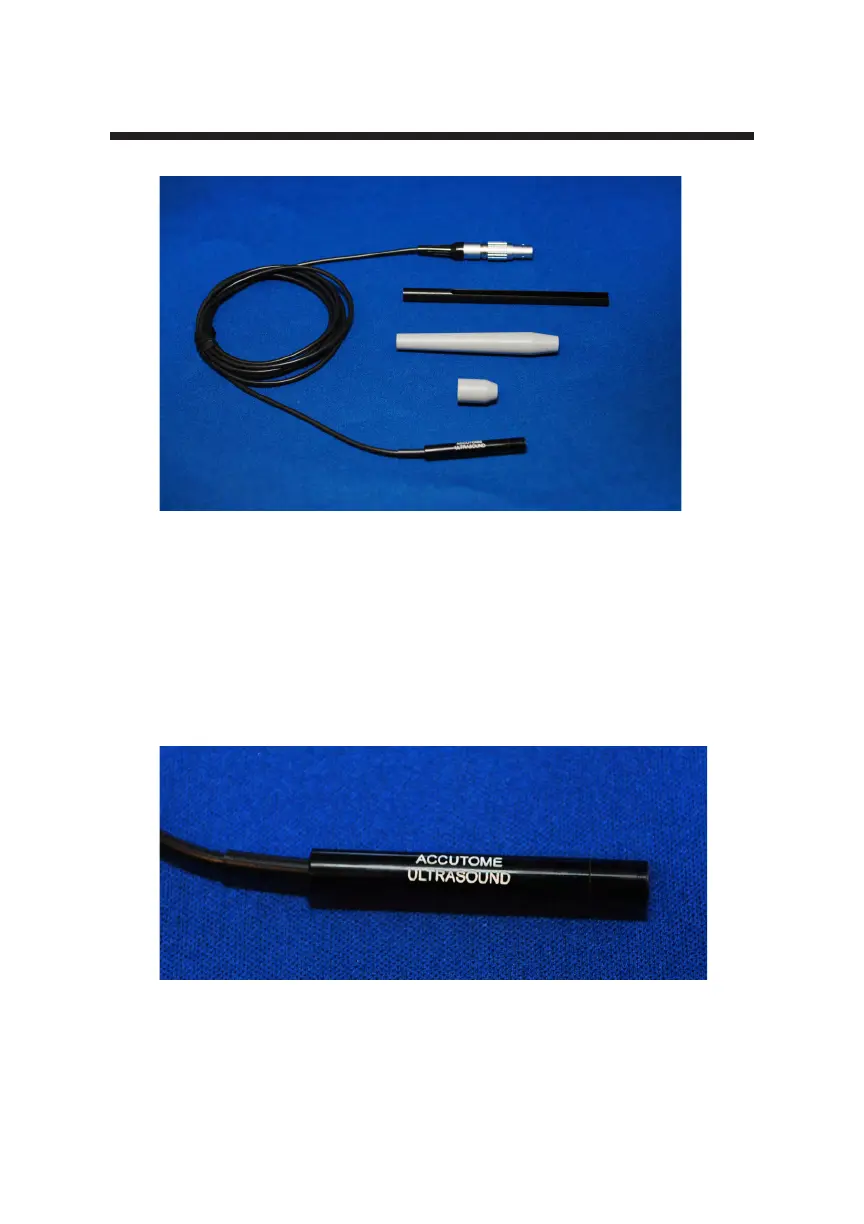

Figure 3-3 Accutome Ultrasonic Probe Kit (PN 24-4001)
Accutome Ultrasonic Probe Kit (PN 24-4001)
The Accutome probe is designed to be used with an Immersion Shell. When
using an immersion shell ensure that there is minimum a distance of 5mm
between the bottom of the probe and the bottom of the immersion shell, as
shown in Figure 3-5 on next page.
Figure 3-4 Accutome Probe
Probe Connector
Extension Handle Insertion Tool
Extension Handle
Goldman Tonometer
Adapter
Accutome Probe
