Accutome A-Scan Plus Connect - Figure 3-27 Click Yes to Save

To Next Page

To Previous Page

Accutome A-Scan Plus Connect User’s Guide

2. This message will be shown: WARNING!!! Saved exam will over write

existing exam le. Proceed? Yes/No

3. Left click yes and save

WARNING: IF YES IS NOT CLICKED DATA WILL

NOT BE SAVED.

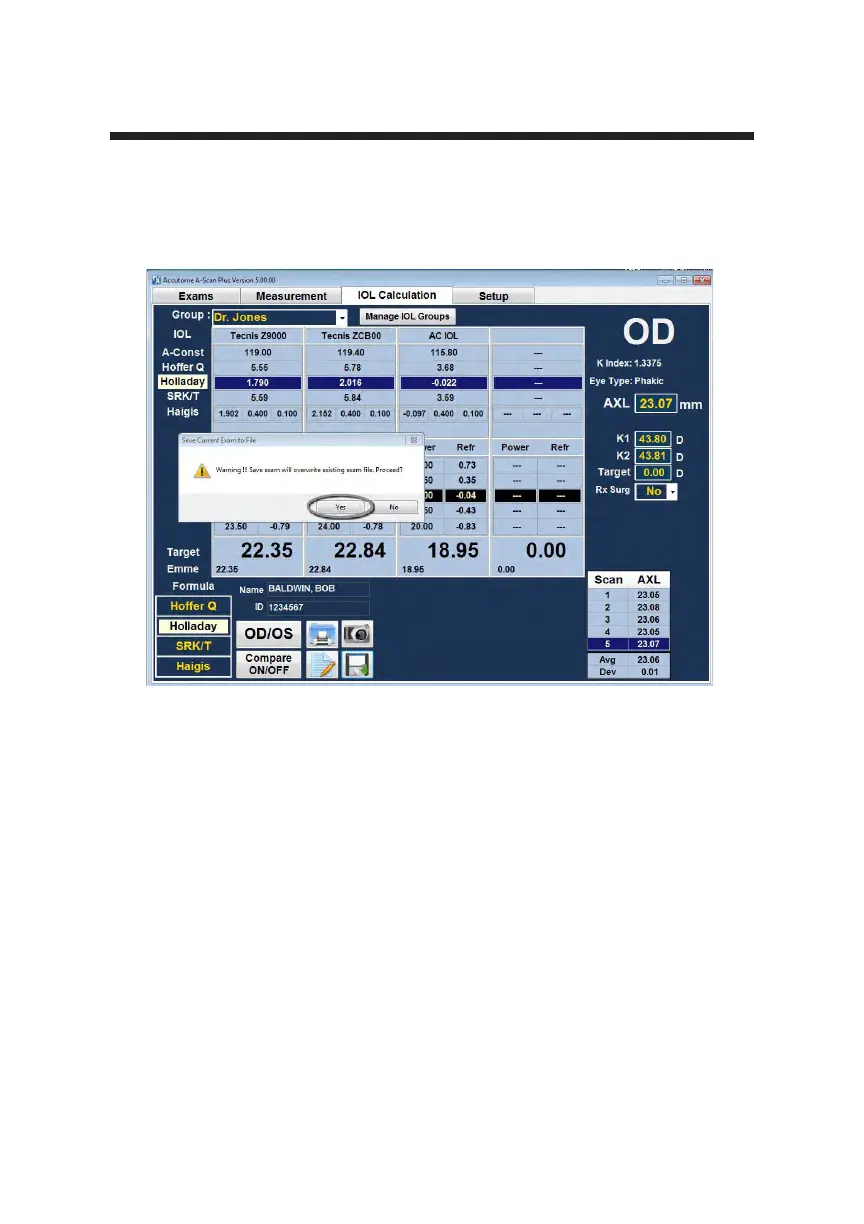

Figure 3-27 Click Yes to Save
