Locations and their functions

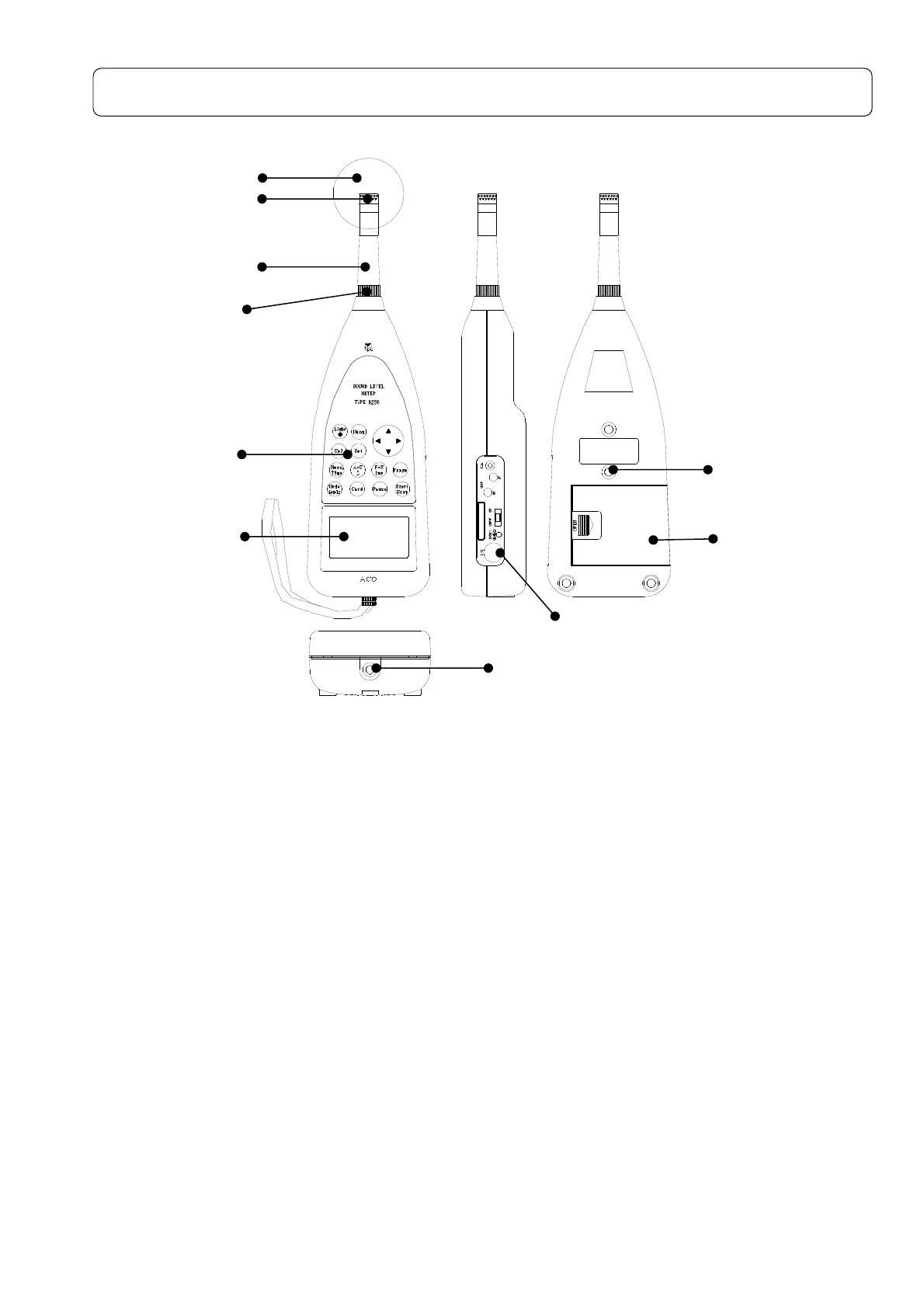

Front/Back/Side view of the main body
Front
Microphone Preamplifier
The microphone and the preamplifier are comprised as one body.
They can be placed apart from the main body and connected to it with the optional extension
cable
Display
It is a liquid crystal display with backlight. The sound level is displayed here with
numerical value or bar graph. The operation condition of the sound level meter, setting
condition of the measurement mode, various alerts, etc. are also displayed.
Windscreen(φ50)
The measurement error may be caused in the windy outdoor site or noise measurement of
ventilator, since the wind drives against the microphone generating the wind noise.
Under such conditions, it is possible to reduce the wind noise by attaching the φ 50
windscreen to the microphone
Hand Strap
Used to prevent unexpected drop of the main body. Please put it through your wrist when
you measure with the body in hand.
Back
Female screw for tripod
It is possible to mount the main body to this tripod for the camera with screw.
Batteries case
Put four LR6 type Alkali dry batteries.
Preamplifier
Threaded
retaining ring
Front panel
Display
Side panel
Female screw for tripod
Female screw
for tripod
Battery cover
