ACO 6236 - Page 55

54
A：＋V D：COM
B：COM
E：Shield
C：－V F：SIG

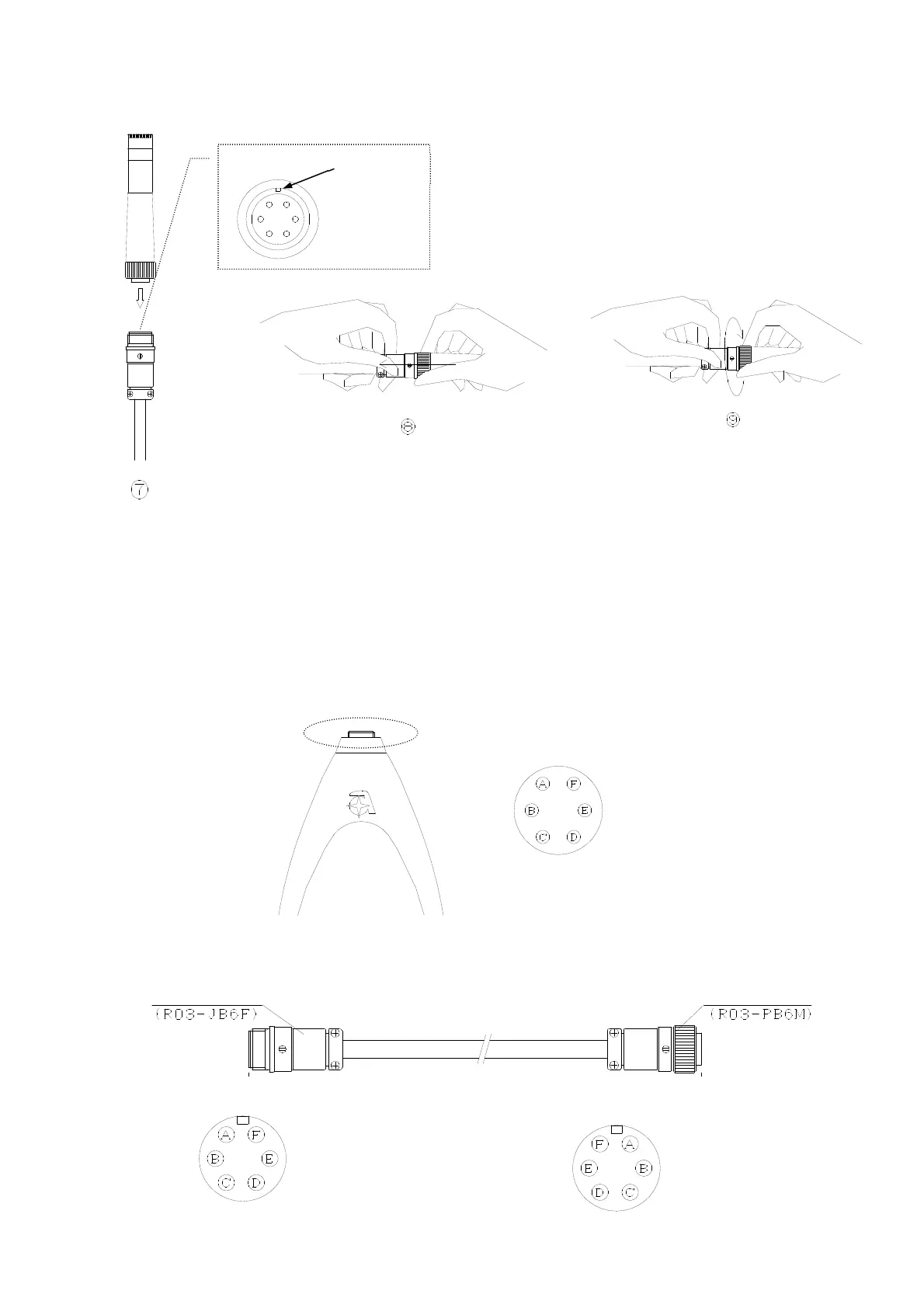

3) Attach microphone to the female connector of extension cable.
【Wiring diagram of Main body side connector】
【Wiring diagram of Extension cable】
※
Note： Do not turn only the threaded reraining ring connecting.
It causes damage to the connector.
Mach key
A：＋6.5V D：COM
B：COM E：COM
C：－6.5V F：SIG
⑦Mach key groove of body’s connector with the connector of extension cable and
insert.
⑧Push the connector of extension cable.
⑨Turn the threaded reraining ring a little as shown repeat ⑧ and ⑨ 5-8 times
and you can connect.
connector
A：＋V D：COM
B：COM
E：Shield
C：－V F：SIG
Case：Shield
connector
