Chapter 5 - Module System Descriptions
104 Adept Python Modules User’s Guide, Rev. E

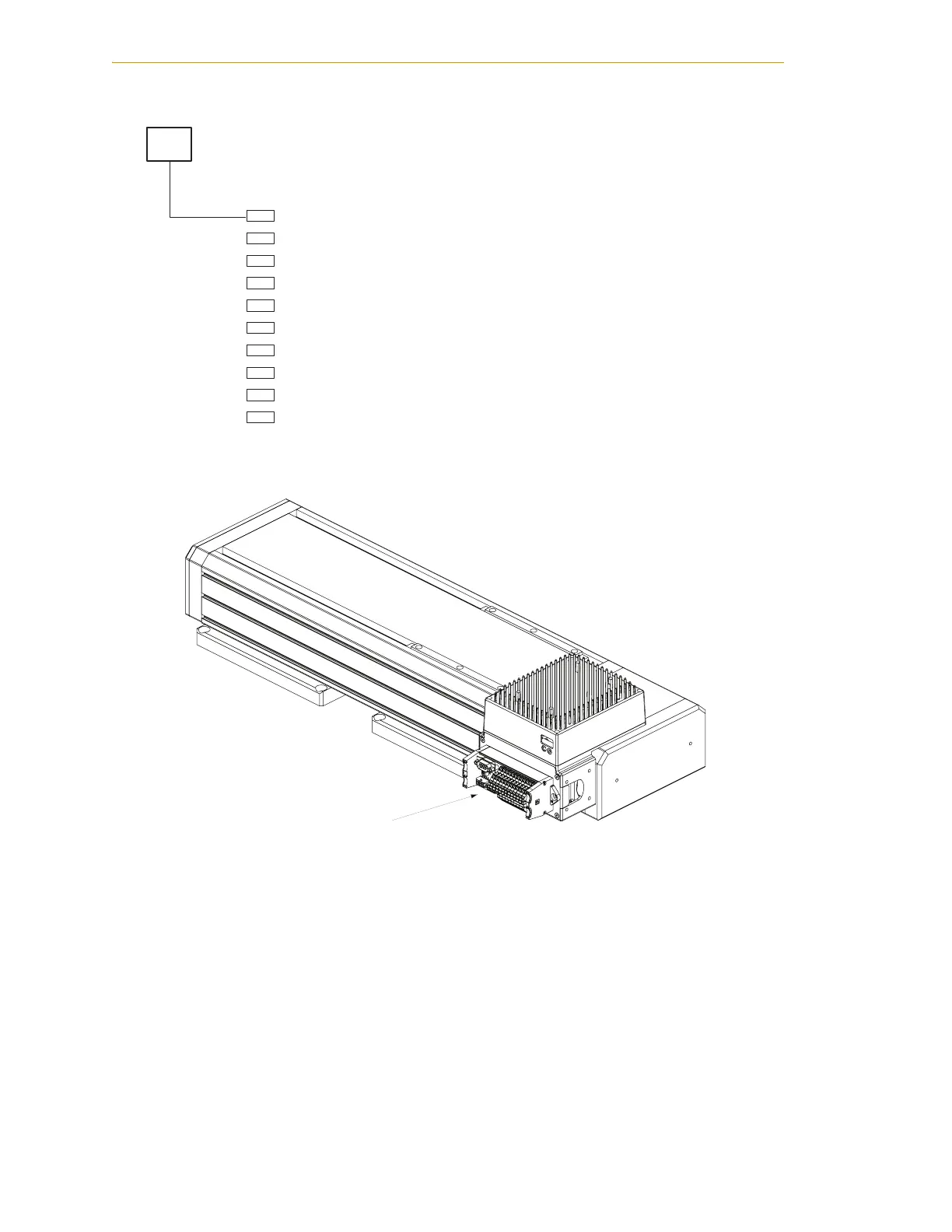

Figure 5-47. IO Blox Options in Module System Descriptor Number
Figure 5-48. Mounting onto an MB-10 Amp
IO BLOX OPTIONS
1 IO Blox at 1st MB-10, mounted at T-bracket cover
X0
X1
X2
X4
X3
X5
X6
X7
X9
X8
No IO Blox Supplied
2 IO Blox at 1st MB-10, mounted at T-bracket cover & main body
3 IO Blox at 1st MB-10, mounted at T-bracket cover & main body (2)
4 IO Blox at 1st MB-10, mounted at T-bracket cover & main body (3)
1 IO Blox at last MB-10, mounted at Y-axis T-bracket cover or Z-axis enclosure
2 IO Blox at last MB-10, mounted at Y-axis T-bracket cover & main body or Z-axis enclosure & main body
2 IO Blox (1 each at first and last MB-10, mounted at T-bracket cover or enclosure)
4 IO Blox (2 each at first and last MB-10, mounted at T-bracket cover, enclosure, & main bodies)
NOT USED
X0
IO Blox
Mounted
on MB-10
Amp T-Bracket
Cover
