Mounting Options
Adept Python Modules User’s Guide, Rev. E 93

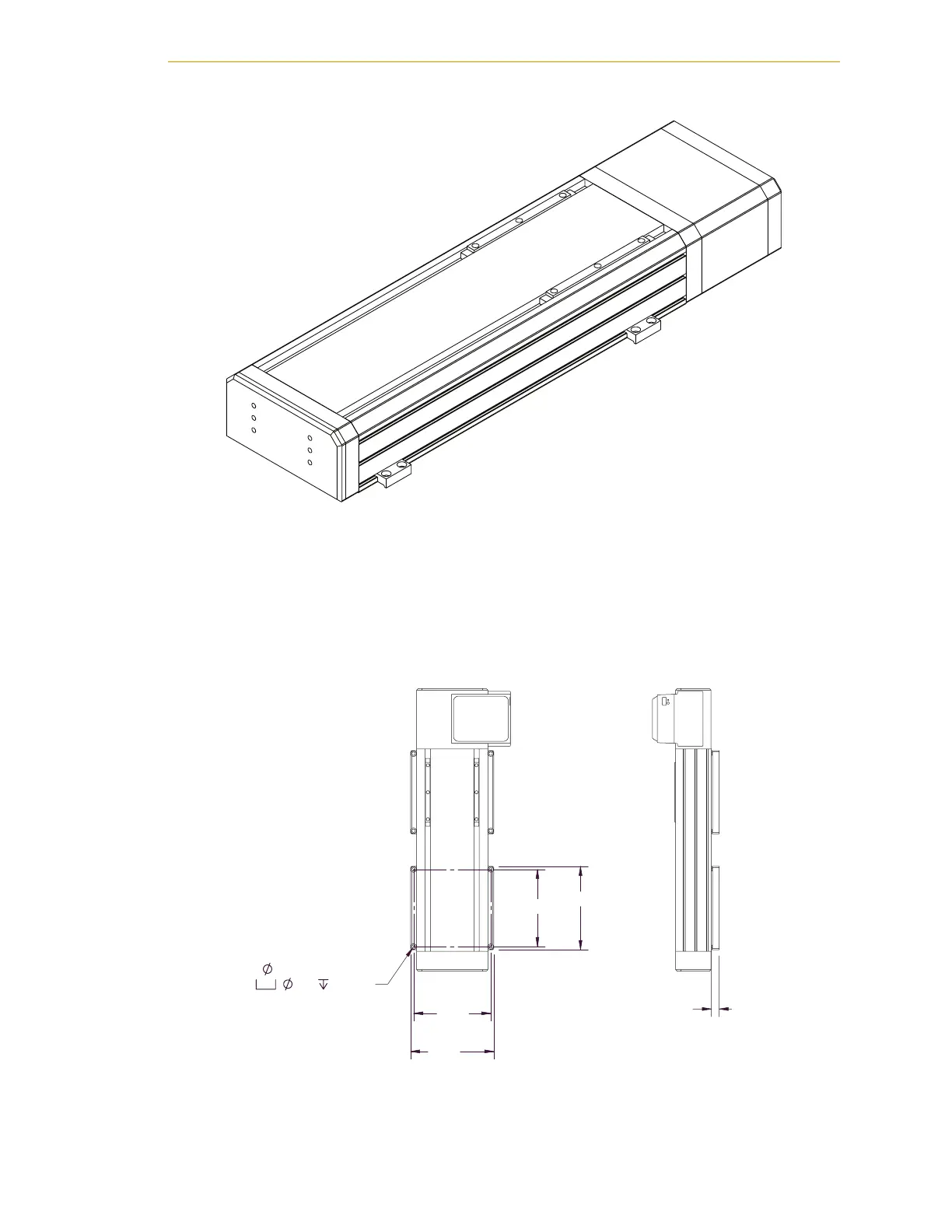

Figure 5-32. L18 Module with Toe Clamps
Mounting Feet Dimensions
Mounting feet are bolted to the underside of module 1 using the provided bolt patterns.
The spacing of each mounting foot is determined by the length of the module. See the
individual module specification drawings for that detail.
Figure 5-33. L18 Module with Mounting Feet Dimensions
200
216
4X
(accepts
M8 screw)
10DP.
200
9 THRU-HOLE
14
216
20
All dimensions
are in mm.
