adept technology Python User Manual

Chapter 8 - Power Distribution Unit
124 Adept Python Modules User’s Guide, Rev. E

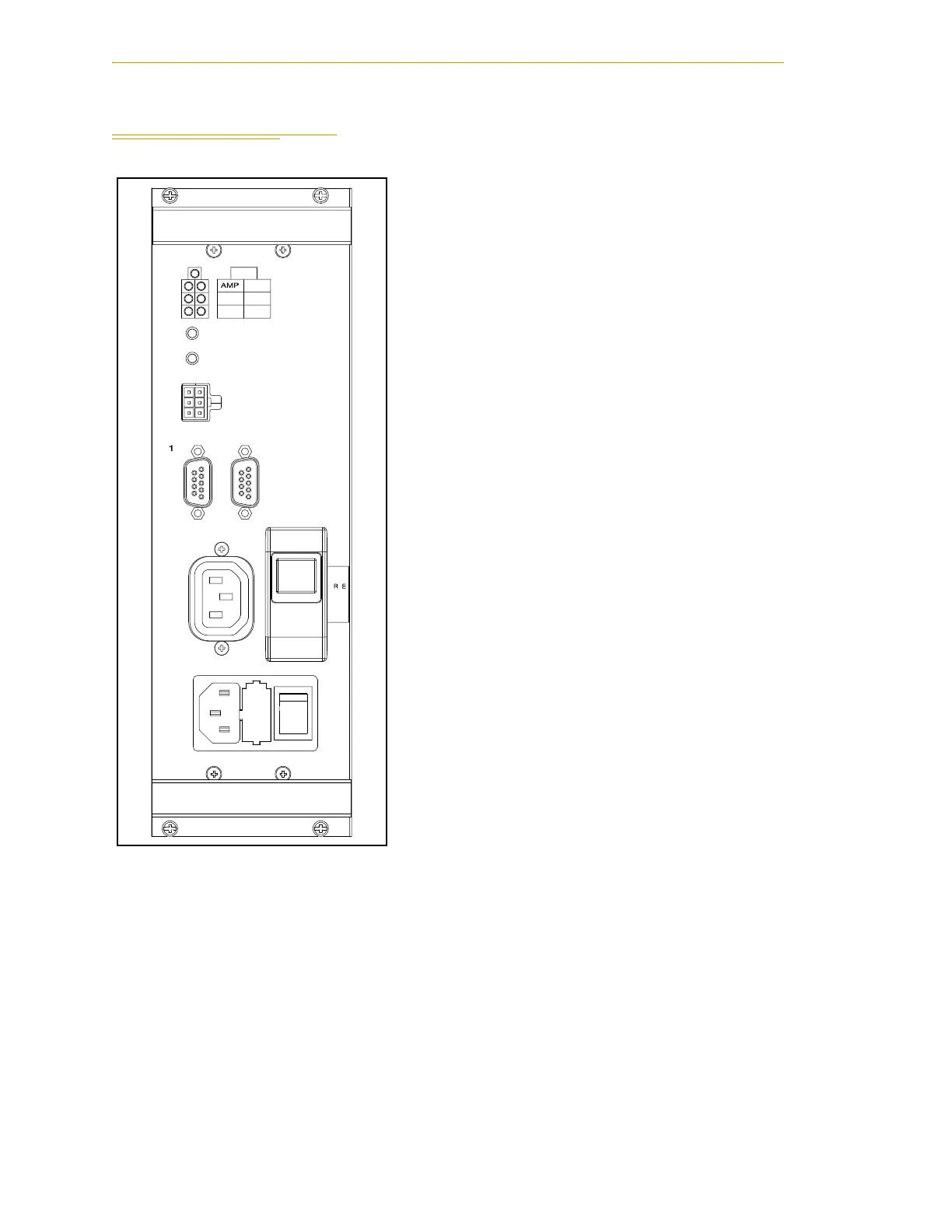

8.4 PDU3 Connectors and Indicators
1. Status indicator LEDs:
24 V - ON indicates 24 VDC power supply in the
PDU3 is working
AMP - ON indicates 24 VDC to MB-10 is operating
AUX - ON indicates 24 VDC to AUX is operating
CH1/2 - E-Stop channel 1 or 2 voltage within range
ES1 - ON indicates E-Stop Relay 1 is on
ES2 - ON indicates E-Stop Relay 2 is on
Note: both relays must be on to enable AC power
to MB-10 amps.
2. AMP DC RESET button - for resetting the internal
circuit breaker on the 24 VDC supply to MB-10
amps
AUX DC RESET button - for resetting the internal
circuit breaker on the 24 VDC supply to AUX
NOTE: Do not push reset buttons while the system
is operating because it will cause 24 V power to
cycle and will require restarting the system.
3. XDCS - connector for 24 VDC cable to MB-10 amps
This cable provides:
- 24 VDC to MB-10 amps
- 24 VDC to Aux/IO Blox
- Auto/Manual signals for Manual mode
operation
4. XSLV1/2 - (1) connection to host controller E-Stop
(2) connection for terminator plug
Note: XSLV1 and 2 are interchangeable. The
terminator plug must be installed for the system to
operate.
5. AC PWR AMP - connector for switched AC power
cable to MB-10 amps.
6. Circuit Breaker - 6 Amp circuit breaker for
switched AC power going to MB-10 amps. Press
the button in to reset it if it has tripped.
7. AC PWR IN - connector, fuses, and On/Off switch
for incoming AC power to PDU3.
NOTE: 200-240 VAC required for Python systems.
1
2
3
4
5
7
6
PWR
XD
CS
PWR
A
C
AMP
E
S2
IN
1
A
UX
E
S1
X
S
LV1
/
A
C
C
H1
C
H2
24V
A
U
X D
C
RE
S
E
T
X
S
LV
2
PD
U3
2
AMP D
C
RE
S
E
T
C
I
C
U
I
T
B
R
A
K
E
R
