Chapter 5 - Module System Descriptions
96 Adept Python Modules User’s Guide, Rev. E

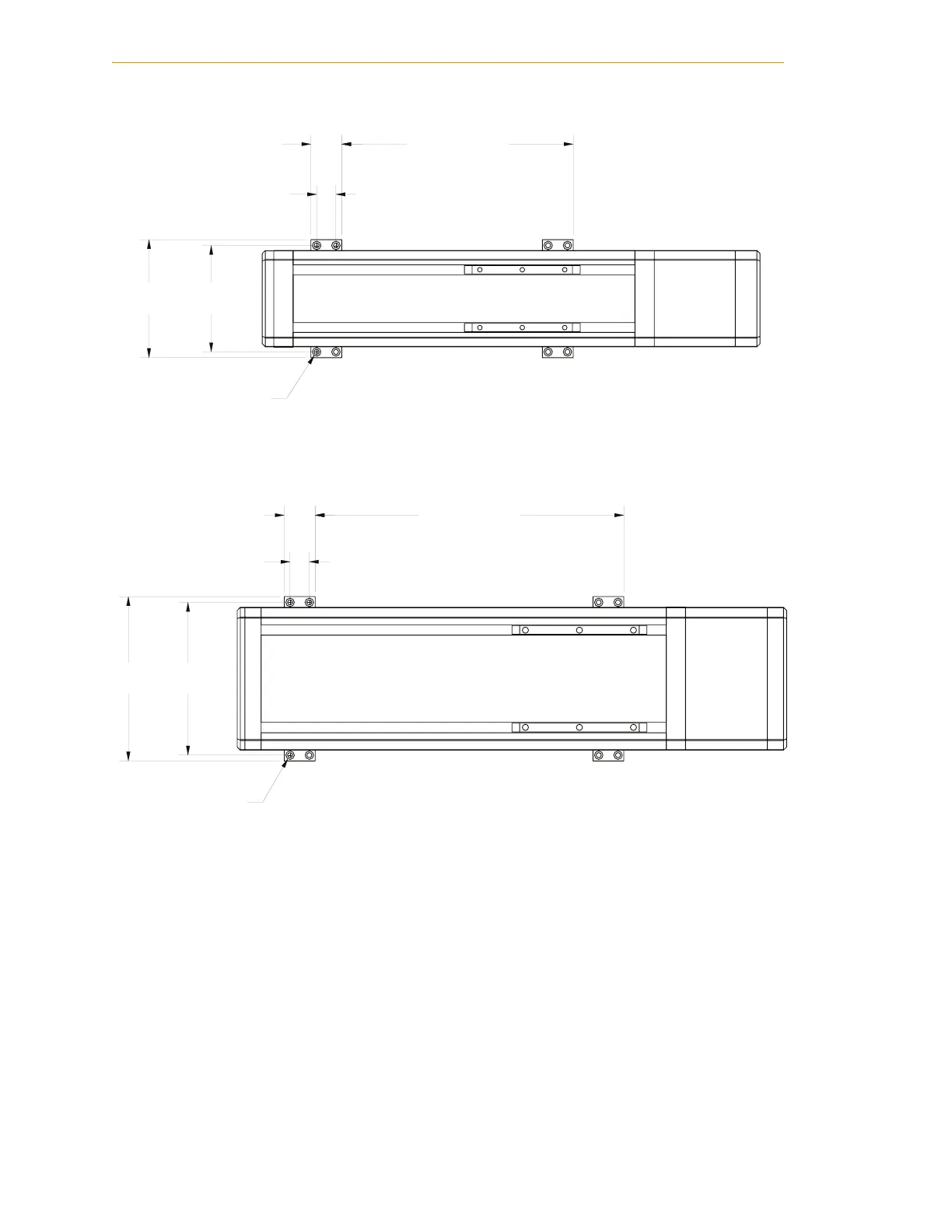

Figure 5-38. L12 Module with Toe Clamp Dimensions
Figure 5-39. L18 Module with Toe Clamp Dimensions
138.00
TYP
153.00
TYP
TYP
M6 C'BORE
40.00
TYP MAX SPACING
400.00
25.00
TYP
All dimensions
are in mm.
40.00
TYP
25.00
TYP
400.00
MAX SPACING
198.00
TYP
213.00
TYP
M6 C'BORE
TYP
All dimensions
are in mm.
