Chapter 5 - Module System Descriptions
82 Adept Python Modules User’s Guide, Rev. E
Z Configurations
In the Z configuration, the first axis is parallel to the work surface and rotated 90 degrees
so that the second axis is perpendicular to the work surface. The second axis’ slide is
attached to the first axis' slide such that the entire axis moves up and down in a vertical ‘Z’
motion (perpendicular to the work surface).
Available in the following configurations:
• Z1200
• Z2300

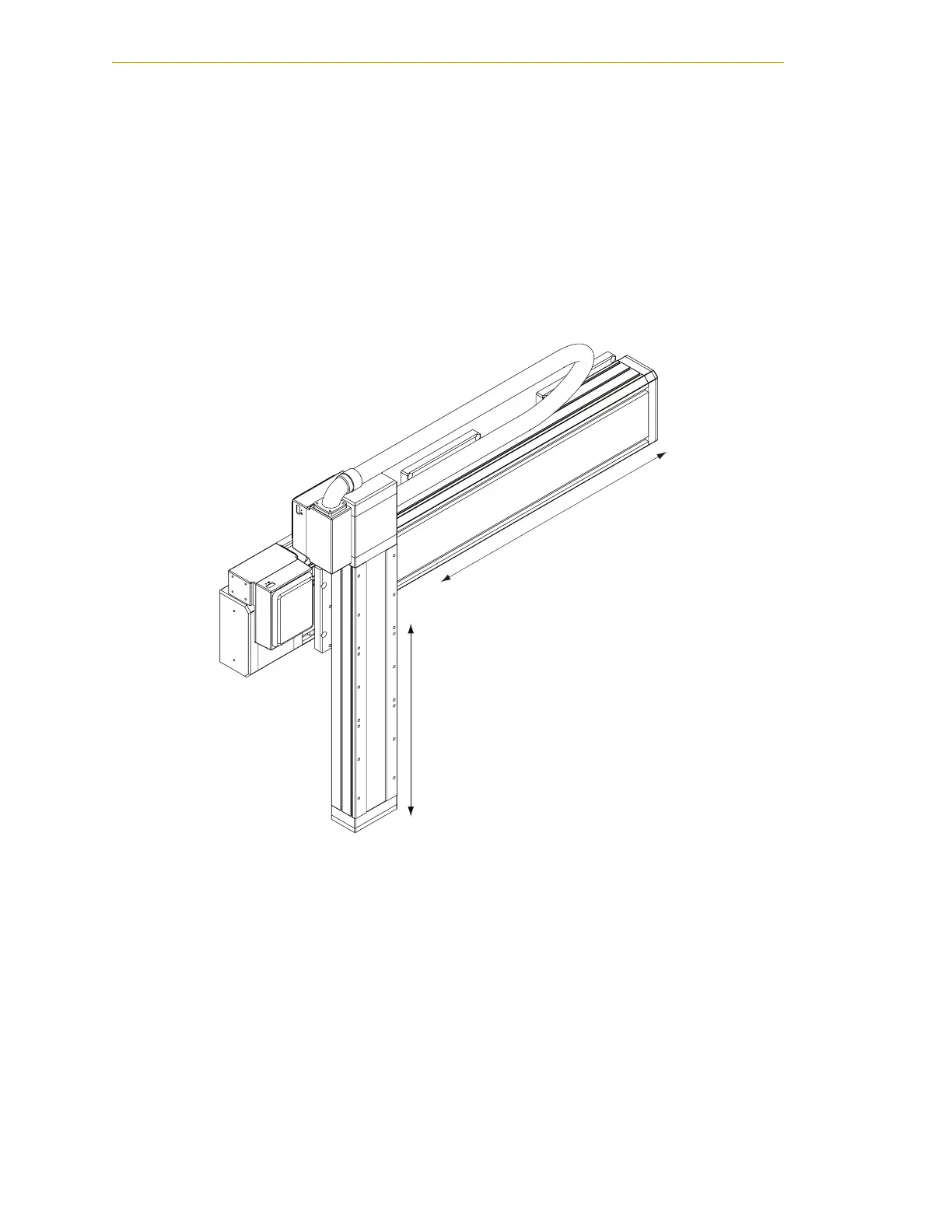

Figure 5-17. Z1200 System
X-Axis
Motion
Z-Axis
Motion
