Chapter 9 - Adept MB-10 Amps
136 Adept Python Modules User’s Guide, Rev. E
Figure 9-3. Attaching the AC Power and Ground Cables
IO Blox Connector
Adept IO Blox units can be used in Python module systems to provide I/O at a specific
location. The IO Blox cable connects to the IO Blox connector on the MB-10. See the Adept
IO Blox User’s Guide for installation details.

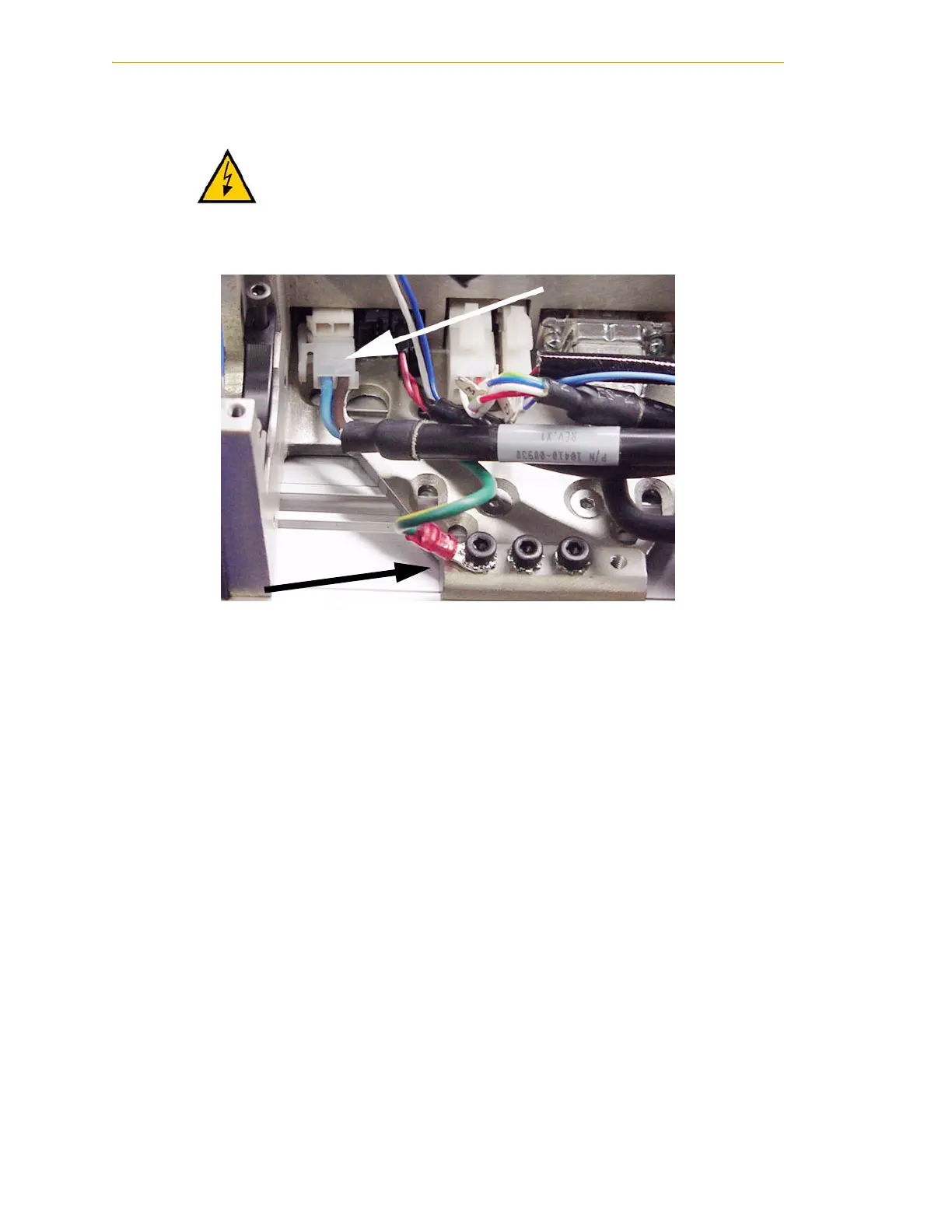

WARNING: Make sure you connect a ground cable to the
ground lug (indicated by the black arrow in the following
figure) on the MB-10.
