Linear Module Options
Adept Python Modules User’s Guide, Rev. E 51

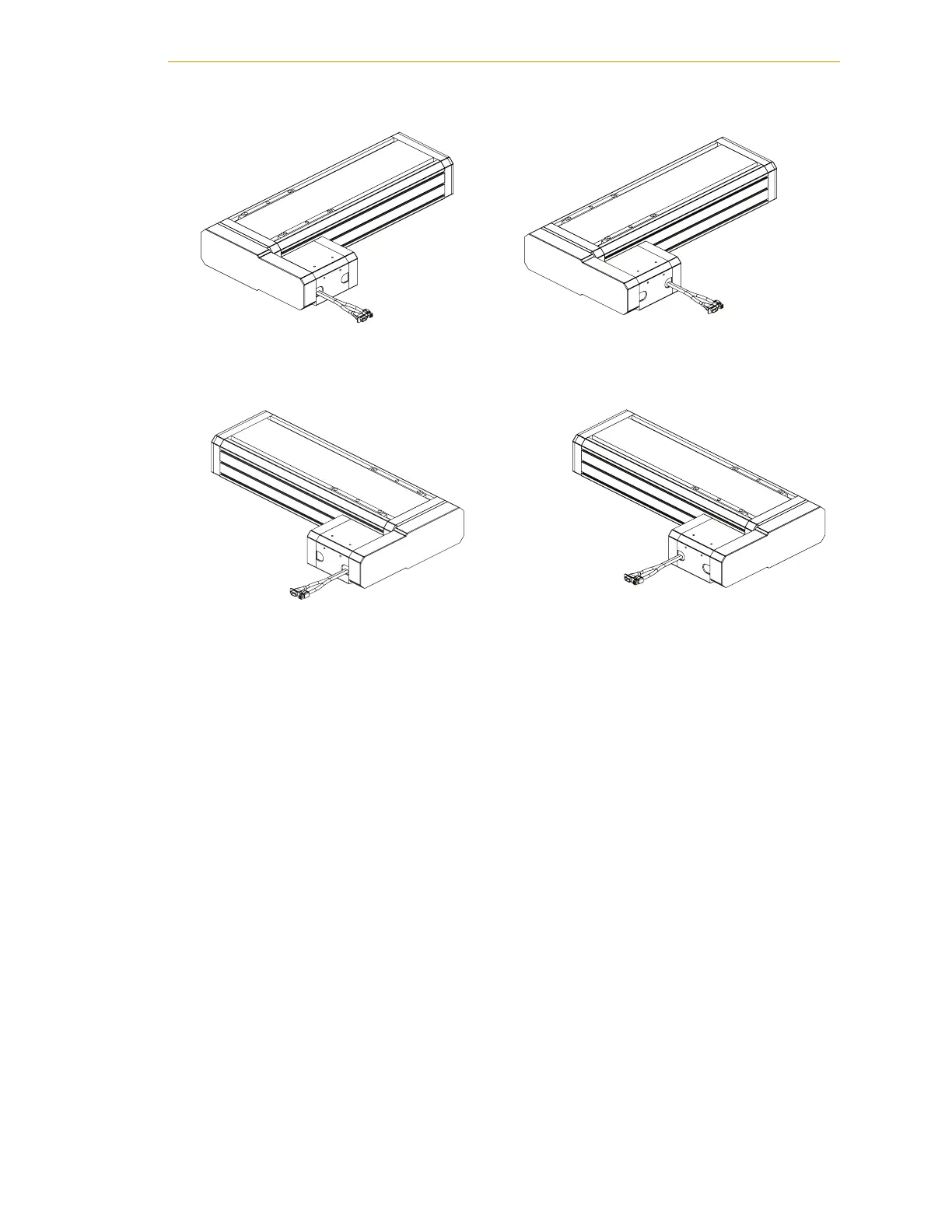

Figure 3-13. Left-Side Motor Mount, Harness Exit Locations
Figure 3-14. Right-Side Motor Mount, Harness Exit Locations
Module Preparation (Assembly)
Standard and cleanroom versions of all types of Python modules (including Theta
modules) are available.
Standard and cleanroom modules all feature:
• Belt seals that provide IP-20 ingress protection
Standard modules feature:
• Hard, anodized aluminum with powder-coated surfaces
• Maximum speed: up to 1450 mm/sec (varies with ball screw)
Left-Side
Motor Mount
Exit 0
Left-Side
Motor Mount
Exit 1
Right-Side
Motor Mount
Exit 0
Right-Side
Motor Mount
Exit 1
