Cabling/Plumbing
Adept Python Modules User’s Guide, Rev. E 107

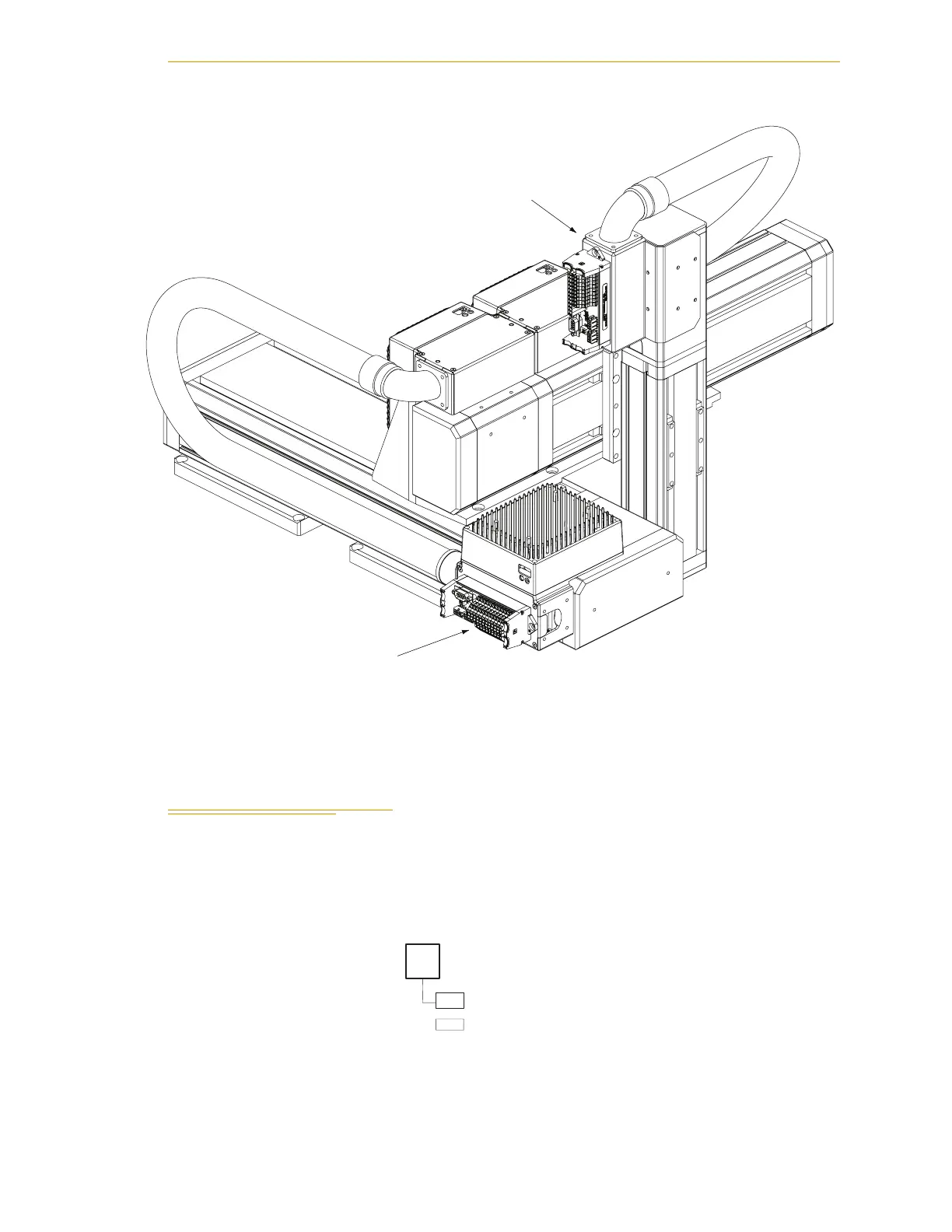

Figure 5-52. Mounting onto a Three-Axis System
5.9 Cabling/Plumbing
The Cleanroom Air Kit includes a length of pneumatic tubing and some extra fittings for
connecting the modules to the vacuum source. See “Module Preparation (Assembly)” on
page 51 for details about cleanroom modules. See Section 6.4 on page 114 for cleanroom
system installation instructions.
Figure 5-53. Cabling/Plumbing Options in Module System Descriptor Number
IO Blox
Mounted
on First
MB-10 Amp
T-Bracket Cover
IO Blox
Mounted
on Z-Axis
Enclosure
CABLING/PLUMBING
OPTION
0
0
1
Standard
Cleanroom
