adept technology Python User Manual

Mounting Options
Adept Python Modules User’s Guide, Rev. E 95

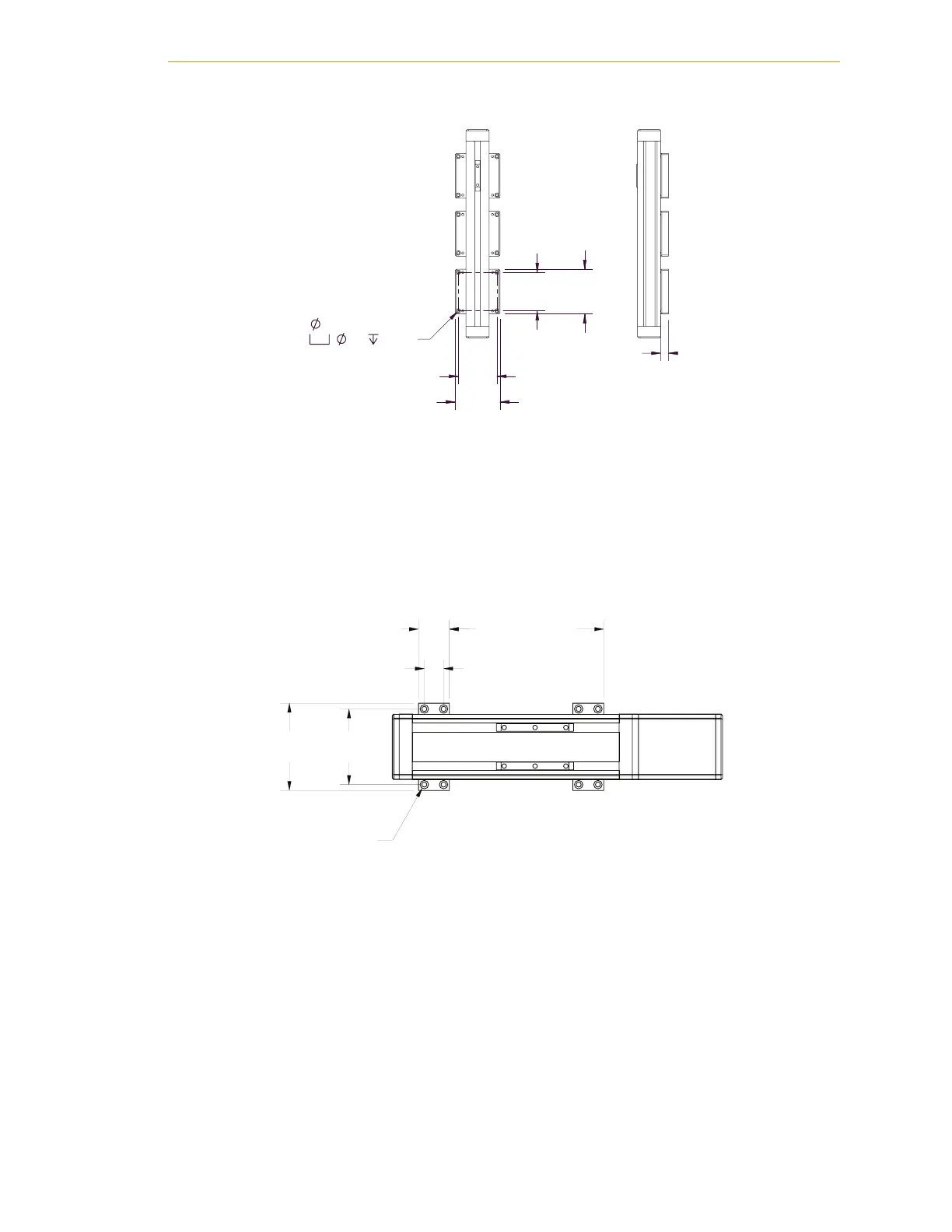

Figure 5-36. LG6 Module with Mounting Feet Dimensions
Toe Clamp Dimensions
Toe clamps are inserted into the T-slots on the sides of module 1 (see “Toe Clamp
Drawings” on page 92) and then attached to a mounting surface using the provided two
screws per toe clamp. See the following dimension drawings for the maximum spacing
between toe clamps and other detailed dimension information.
Figure 5-37. L08 Module with Toe Clamp Dimensions
100
116100
116
7 THRU-HOLE
11 9DP.
4X
(accepts
M6 screw)
20
All dimensions
are in mm.
40.00
TYP MAX SPACING
400.00
25.00
TYP
98.00
TYP
113.00
TYP
TYP
M6 C'BORE
All dimensions
are in mm.
