adept technology Python User Manual

Installing a Python Module System
Adept Python Modules User’s Guide, Rev. E 111

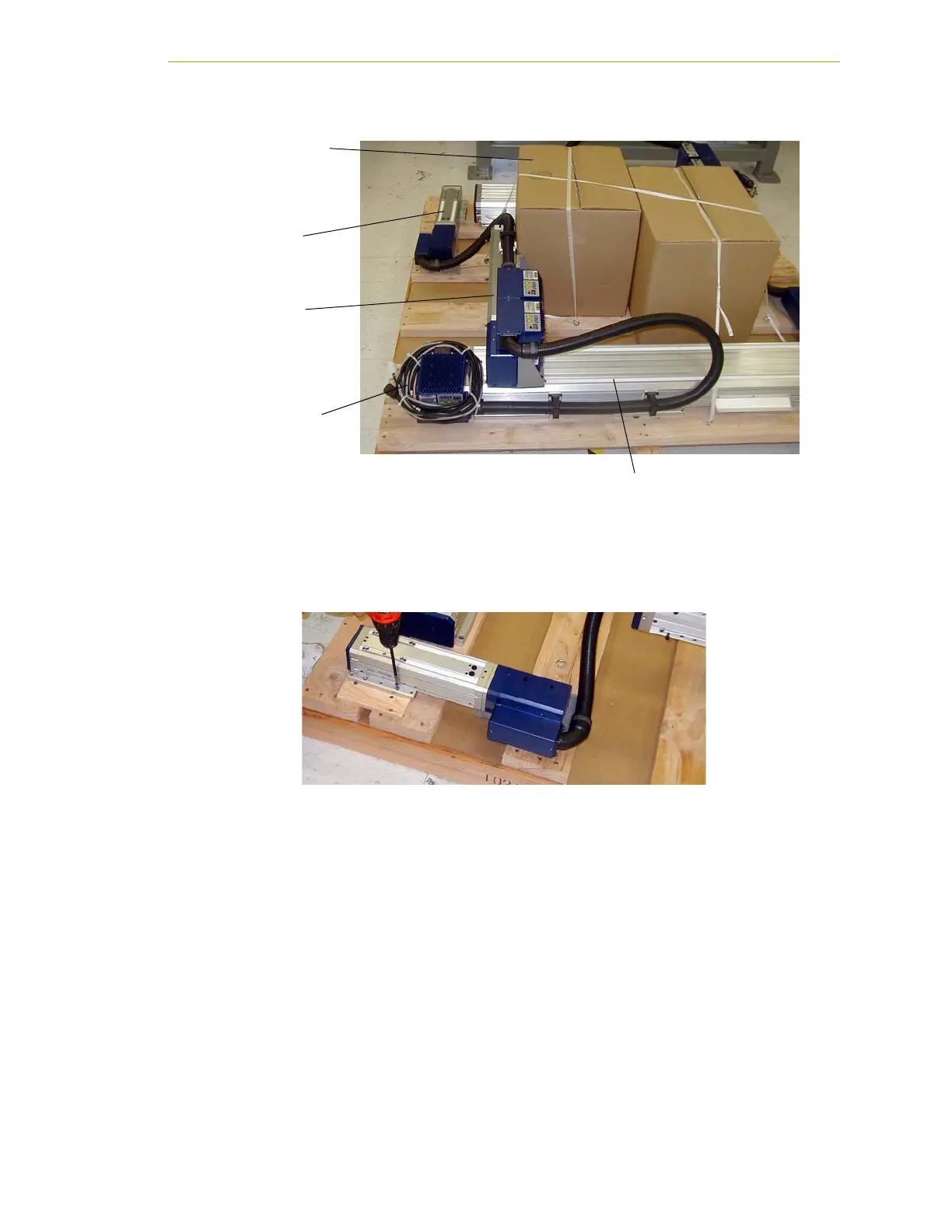

Figure 6-2. Typical Three-Axis System on Shipping Pallet with Contents Labelled
2. Remove the shipping screws that secure Axis 3 to the pallet. See Figure 6-3.
Figure 6-3. Removing Shipping Screws from Axis 3
3. Position Axis 3 at the mounting location on Axis 2, and secure with the supplied
mounting bolts. See Figure 6-4.
Cables for connections
to PDU3 and
SmartController
Box containing PDU3,
SmartController, options,
and documentation.
Axis 1
Axis 2
Axis 3
