adept technology Python - Figure 5-24. Flipped;Standard Orientation; Figure 5-25. Standard;Rolled Orientation (Rear View)

Chapter 5 - Module System Descriptions
88 Adept Python Modules User’s Guide, Rev. E

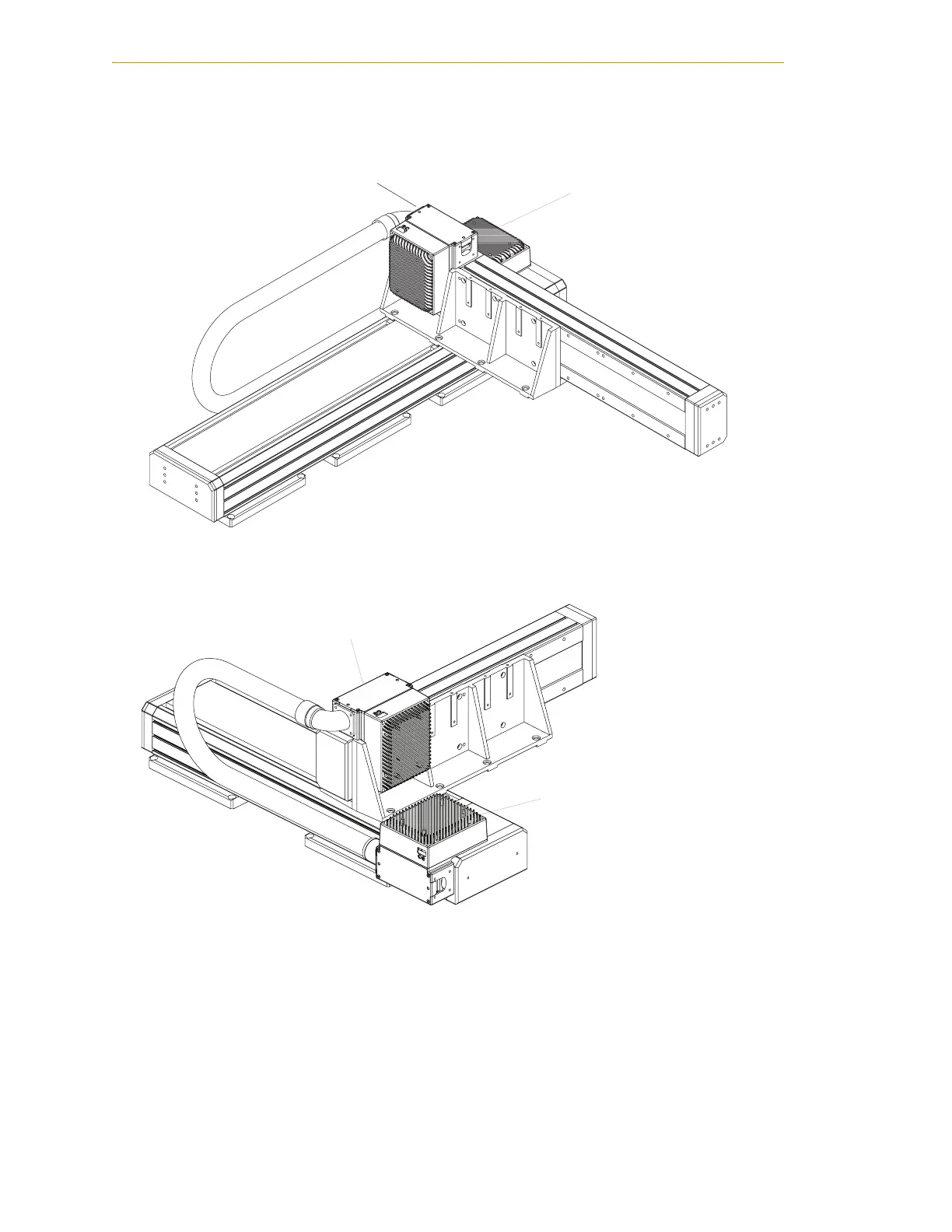

Figure 5-24. Flipped/Standard Orientation
Figure 5-25. Standard/Rolled Orientation (Rear View)
Module 1, Flipped
(Amp 1 mounted on left-hand side)
Module 2, Standard
(Carriage 2 facing Amp 1)
Module 1, Standard
(Amp 1 mounted on left-hand side)
Module 2, Rolled
(Amp 2 facing Amp 1)
