adept technology Python - Figure 5-34. L12 Module with Mounting Feet Dimensions; Figure 5-35. L08 Module with Mounting Feet Dimensions

Chapter 5 - Module System Descriptions
94 Adept Python Modules User’s Guide, Rev. E

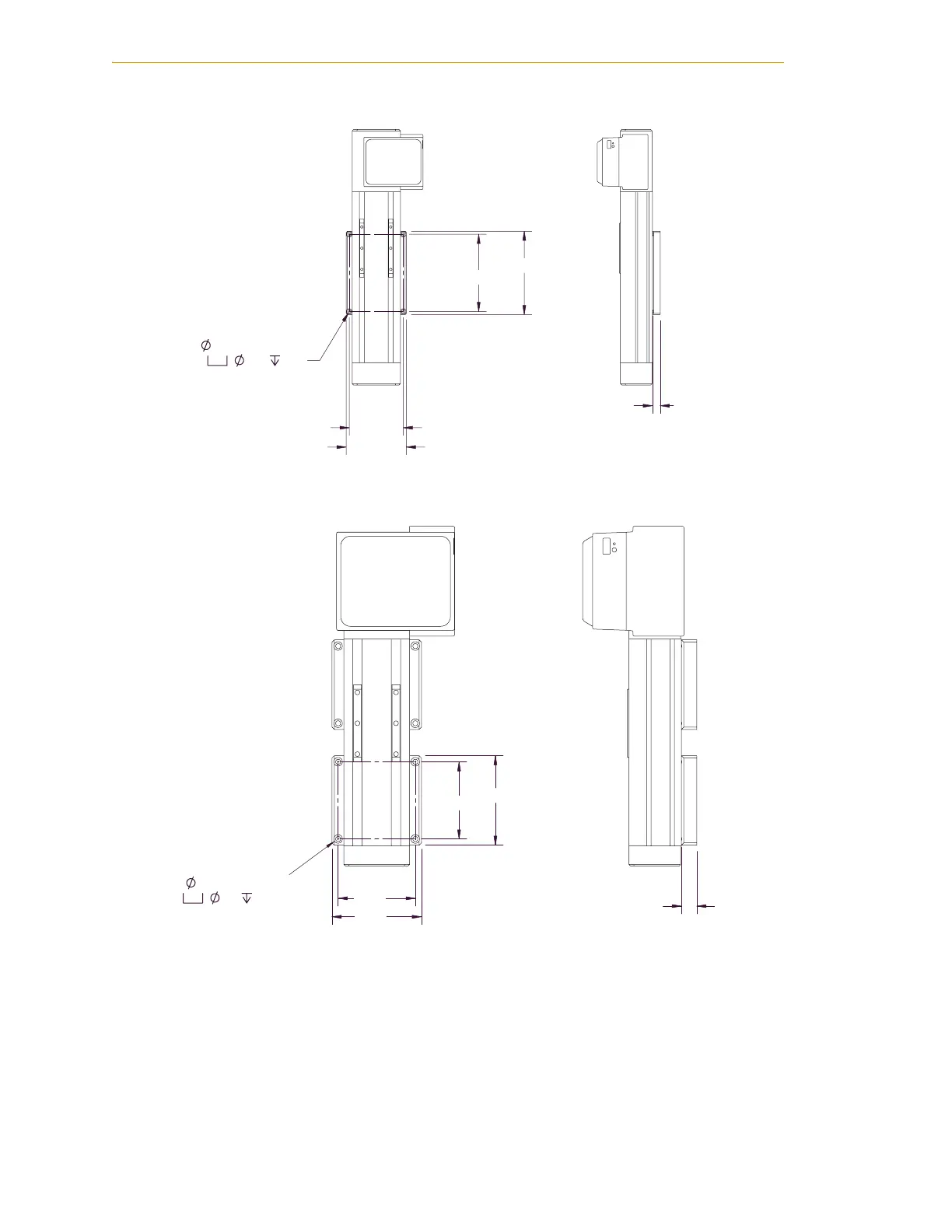

Figure 5-34. L12 Module with Mounting Feet Dimensions
Figure 5-35. L08 Module with Mounting Feet Dimensions
20
140
216
200
156
9 THRU-HOLE
14
10
4X
(accepts
M8 screw)
All dimensions
are in mm.
20
100
116
100
116
7 THRU-HOLE
11
9 DP.
4X
(accepts
M6 screw)
All dimensions
are in mm.
