Chapter 9 - Adept MB-10 Amps
140 Adept Python Modules User’s Guide, Rev. E

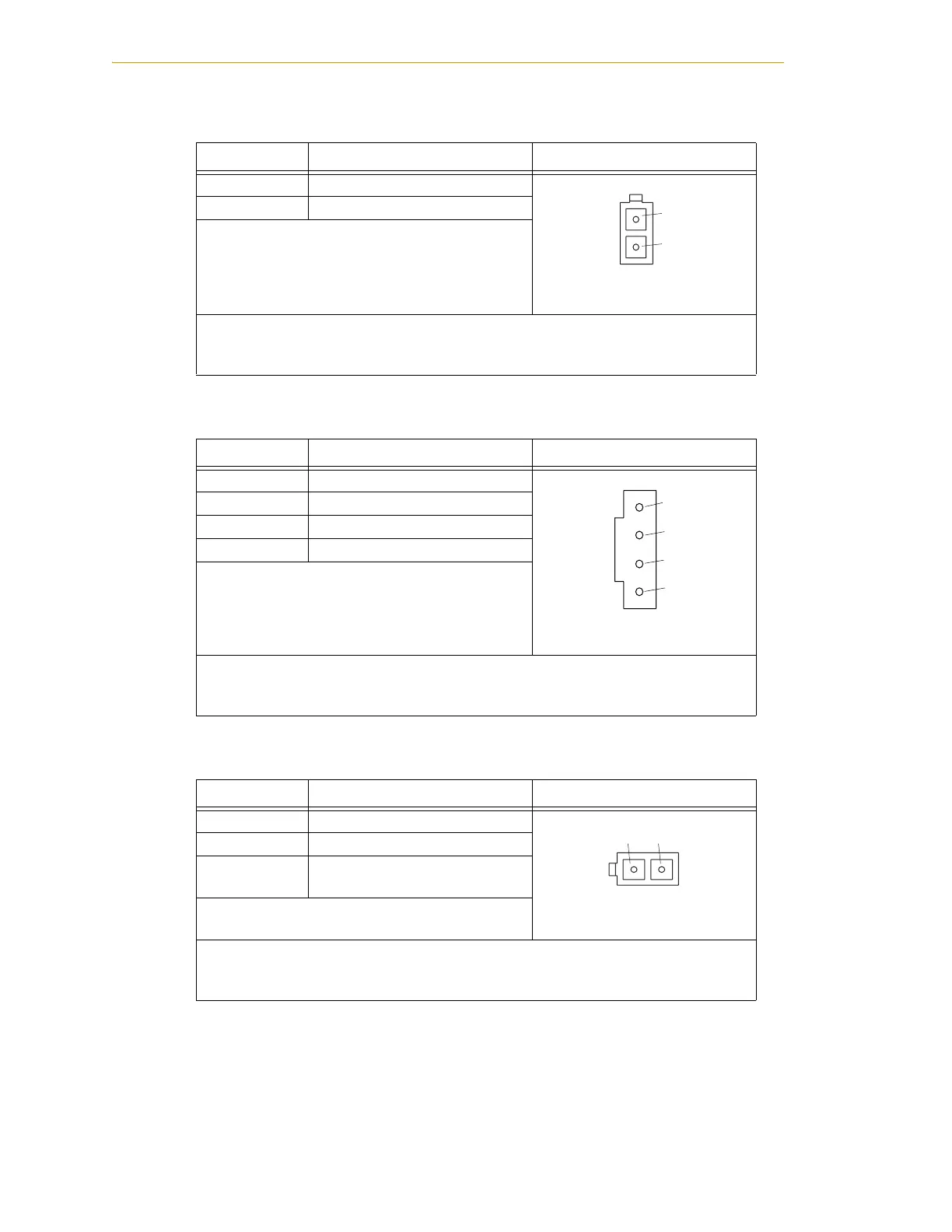

Table 9-6. Brake Connector
Pin # Description Pin Location
1 Brake_24 V
Brake Connector
as viewed on MB-10
2 Brake_GND
Mating Connector:
AMP/Tyco #172165-1, 2-pin Mini-Universal Mate-N-Lock
AMP/Tyco #170362-2, Socket Contact, Mini-Univ. Mate-N-Lock
Table 9-7. +24 V Connector (2 per MB-10)
Pin # Description Pin Location
1 Not Used
+24 V Connector
as viewed on MB-10
2 Not Used
3GND
4+24 VDC
Note: the two +24 V connectors on the MB-10
are interchangeable.
Mating Connector:
AMP/Tyco #104257-3, 4-pin AMPMODU Receptacle Housing
AMP/Tyco #104480-9, Contact Pin, AMPMODU, 22-26 AWG
Table 9-8. AC Connector (2 per MB-10)
Pin # Description Pin Location
1 Hot (L1)
AC Connector
as viewed on MB-10
2 Neutral (L2)
Ground Lug
Attach to ground point. See
Figure 9-3 on page 136.
Note: the two AC connectors on the MB-10
are interchangeable.
Mating Connector:
MOLEX #39-01-2025, 2-pin Mini-Fit Junior Receptacle Assembly
MOLEX #39-00-0039, Contact Terminal, Mini-Fit Family
1
2
1
2
3
4
12
