Description
61179641L4-5B 1-3
Front Panel LEDs

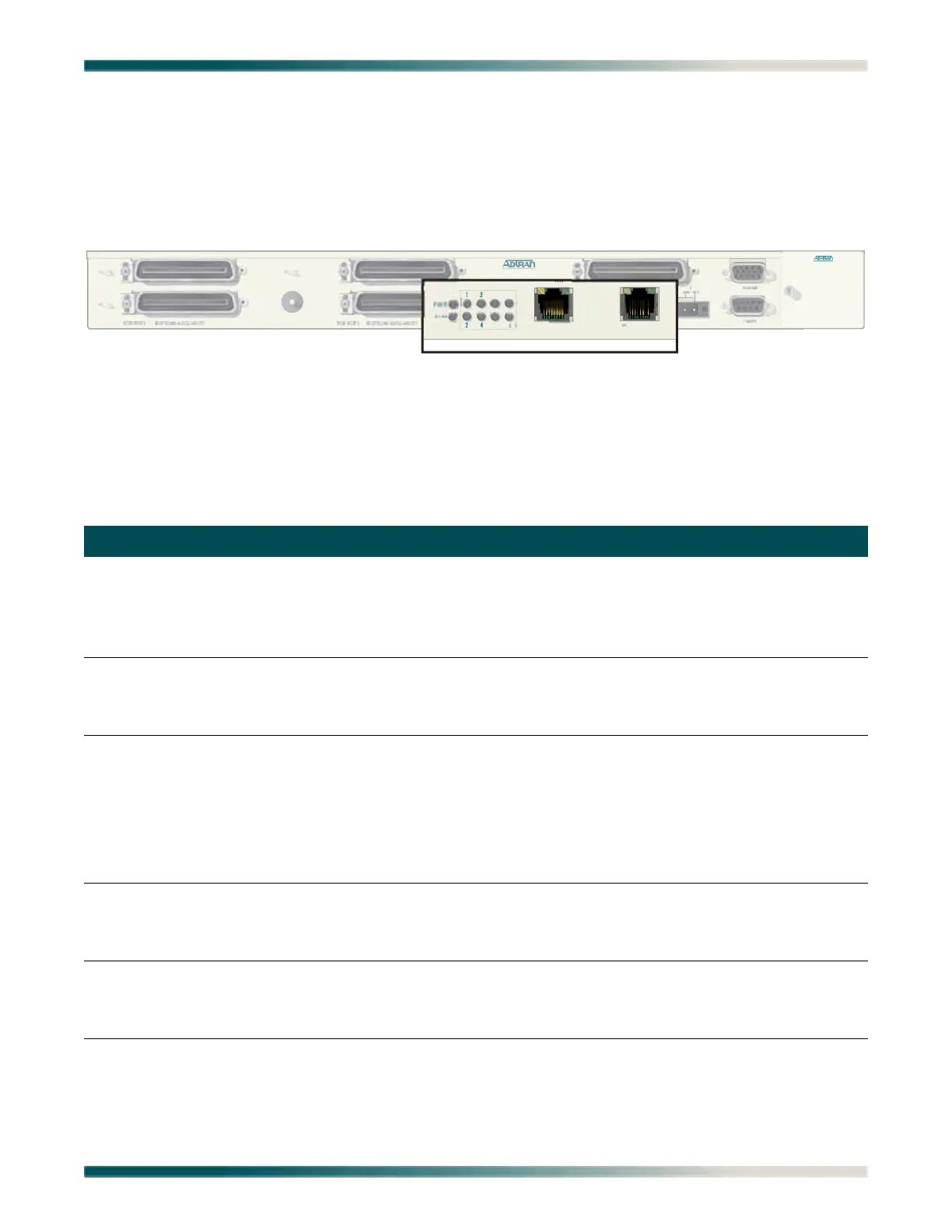

Figure 1-2 shows the location of the Total Access 1248 front panel LEDs. Upon initial
powering, the Total Access 1248 system performs a power up self-test. Once the power up
self-test is complete, the status LEDs reflect the condition of the hardware.
Figure 1-2. Total Access 1248 Front Panel LEDs
See Table 1-1 for a listing of LEDs and their status.
Table 1-1. Front Panel LEDs
Label Status Description
PWR

Green
 Yellow
 Red
î™» Off
Total Access 1248 is In Service
Total Access 1248 is Out of Service-Maintenance
Total Access 1248 Failed self-test
No power present on Total Access 1248
ALM

Yellow
 Red
î™» Off
Total Access 1248 is reporting a Minor alarm
Total Access 1248 is reporting a Major alarm
No alarms reported on Total Access 1248
T1/E1 1–8

Green
4 Green Flashing
 Yellow
4 Yellow Flashing
 Red
î™» Off
All good
T1/E1 OK, no IMA Sync
Signal present OOF
T1/E1 is in loopback
No signal
Facility unassigned
ETHERNET

Green
4 Green Flashing
 Yellow
Ethernet signal present
Ethernet with traffic
No signal
EXPANSION OUT

Green
4 Green Flashing
 Yellow
Connected to a downstream box
Connected with traffic
No signal
FAN M
O
D
U
L
E
1179675
L1
1179641L
4
P
RT
1-2
V
....
.
,5.0A
..
O
ND
UC
T
O
R
S
O
NLY
!
PWR
ALM
ETHERNET
OUT
EXPANSION
T1/E1
5
6
7
8
