ADTRAN Total Access 1248 User Manual

Installation Steps
61179641L4-5B 3-5
Mounting the Total Access 1248
The Total Access 1248 is shipped with two sets of mounting brackets that accommodate either
a 19-inch or 23-inch rack.
• The mounting brackets used for a 19-inch rack are part number 3265540.
• The mounting brackets used for a 23-inch rack are part number 3265541.
The mounting brackets provide for flush or mid-mounting configurations. Figure 3-1 shows
the Total Access 1248 mounting bracket installation options. Four screws (supplied with the
unit) are required for mounting the brackets to the system.

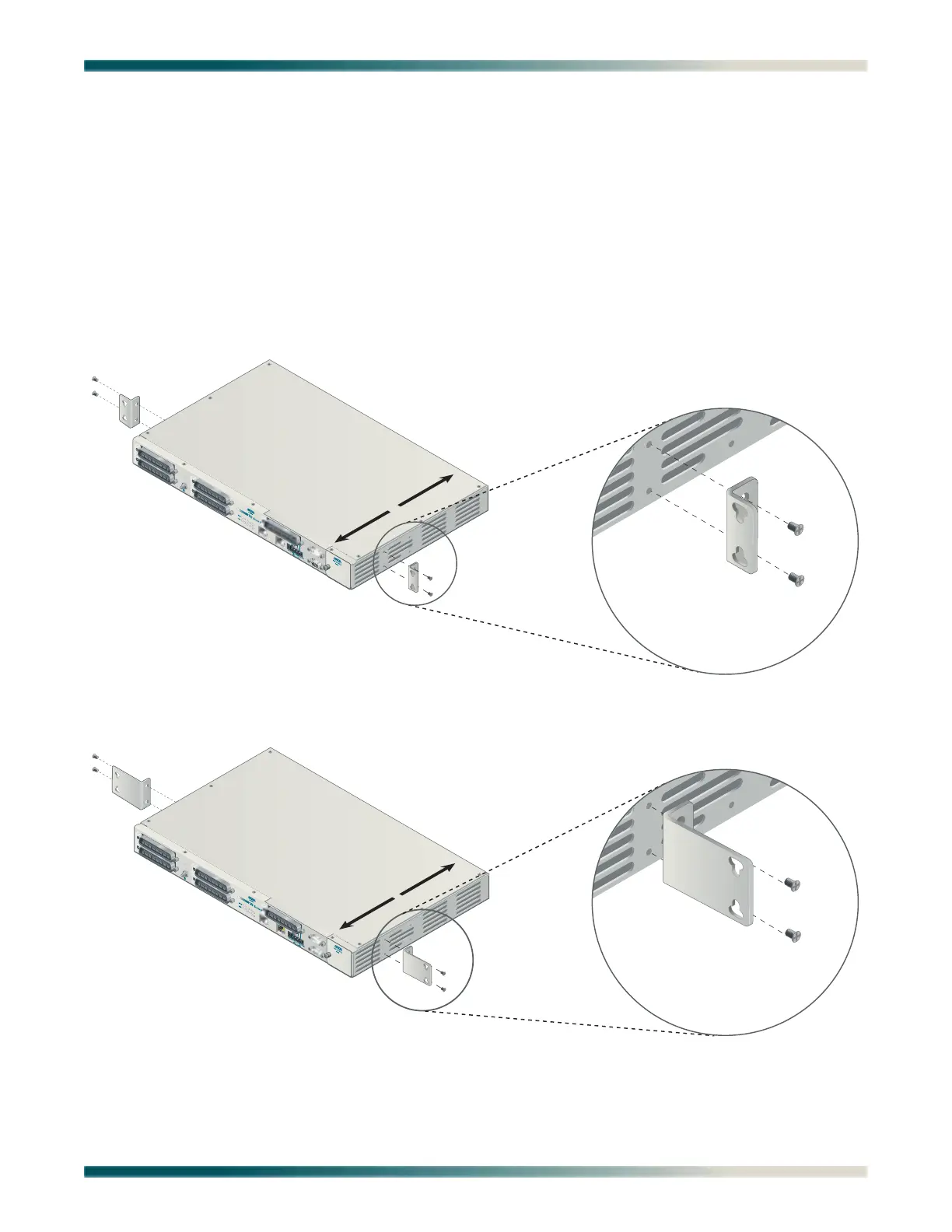

Figure 3-1. Mounting Brackets
1
2
3
4
T1/E1
5
6
7
8
FRONT
BACK
P/N 3265540
19-inch Mounting Brackets
1
2
3
4
T1/E1
5
6
7
8
FRONT
BACK
P/N 3265541
23-inch Mounting Brackets
