Total Access 1248 Octal T1 IMA DSLAM Installation and Maintenance Practice
3-6 61179641L4-5B
Flush-mount
For flush-mount systems, the Total Access 1248 must be mounted from the front of the rack,
with mounting brackets in the flush-mounting orientation (see Figure 3-2). When flush-
mounting a Total Access 1248 in the rack, use a #2 phillips-head screwdriver and attach the
mounting brackets to the front screw holes with the flanges containing the slotted rack-
mounting holes facing the front of the Total Access 1248.
Using four screws appropriate for the mounting rack and the appropriate screwdriver, secure
the Total Access 1248 in place on the rack.

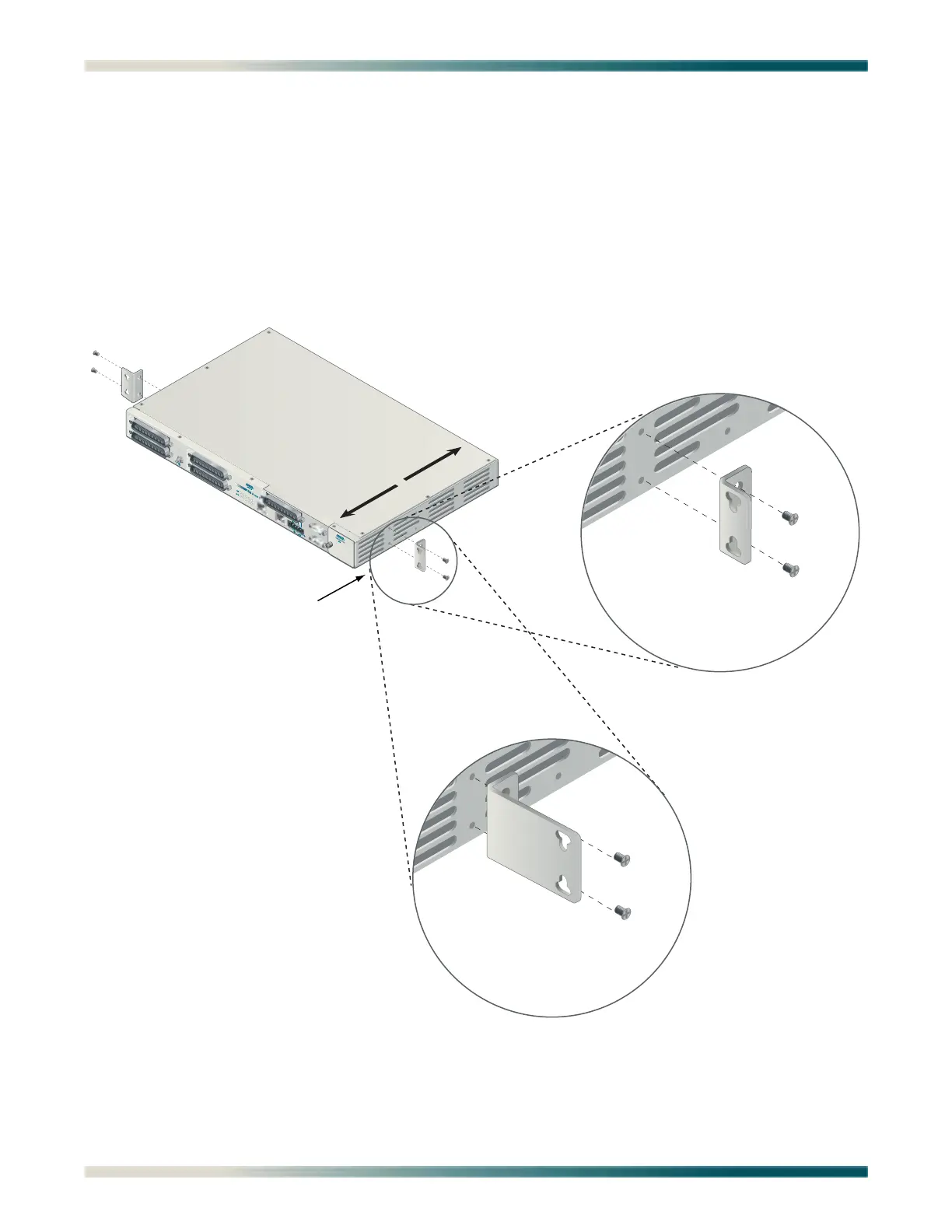

Figure 3-2. Flush-mount Orientation
1
2
3
4
T1/E1
5
6
7
8
FRONT
BACK
19-inch Mounting Brackets
23-inch Mounting Brackets
Flush-mount Orientation
