10.7. Integrated Wi-Fi, WWAN, and GPS antenna (optional)

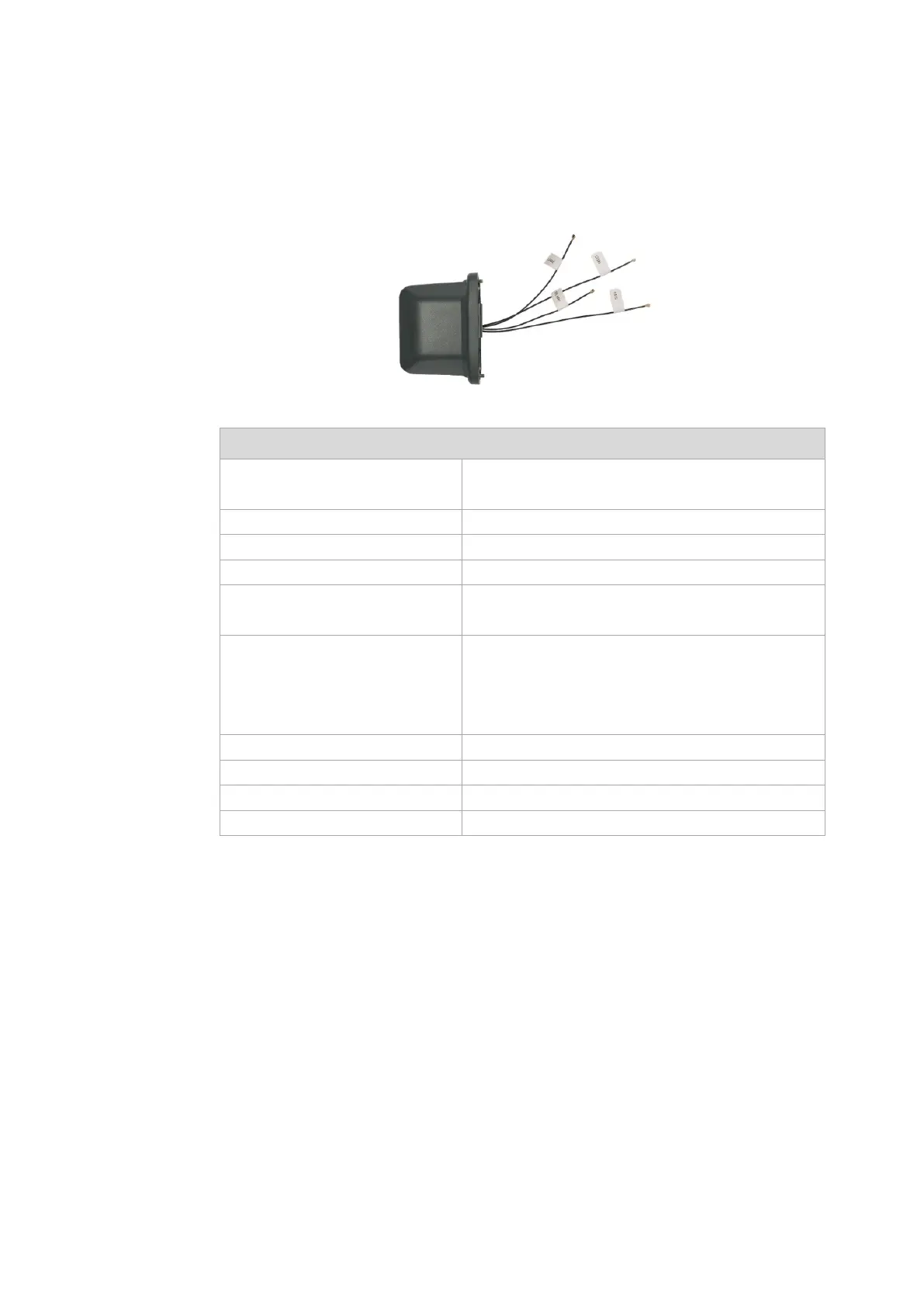

In the figure: Pigtails marked with 2 x Wi-Fi, 1 x WWAN, 1 x GPS
Fig. 10.4: Integrated Wi-Fi, WWAN, and GPS antenna (optional)
Technical data
Application Wi-Fi IEEE 802.11 a/b/g/n dual-band diversity
WWAN 3G-Technology
Number of antennas 4
Type Omnidirectional antenna
Directionality Optimized for the DLT-V83 housing
Frequency range Wi-Fi Band 1: 2400 to 2485 MHz
Band 2: 5150 to 5875 MHz
Frequency range WWAN GSM900: 880 to 960 MHz
GSM1800: 1710 to 1880 MHz
GSM1900: 1850 to 1990 MHz
UMTS: 1920 to 2170 MHz
Antenna gain Max. 3 dBi (without loss through the cable)
Impedance 50 Ω
Polarization Vertical/Horizontal
Maximum transmitting power 100 mW / 20 dBm
