Advantech-DLoG DLT-V8310 - Fig. 14.4: Dimensions DLT-V8310 Standard Resistive Touchscreen, Top View

Technical data
Advantech-DLoG DLT-V83 Series Manual V1.31 Page 145 of 178
DLT-V8310 Top view
Dimensions without add-ons (in mm)
Example:

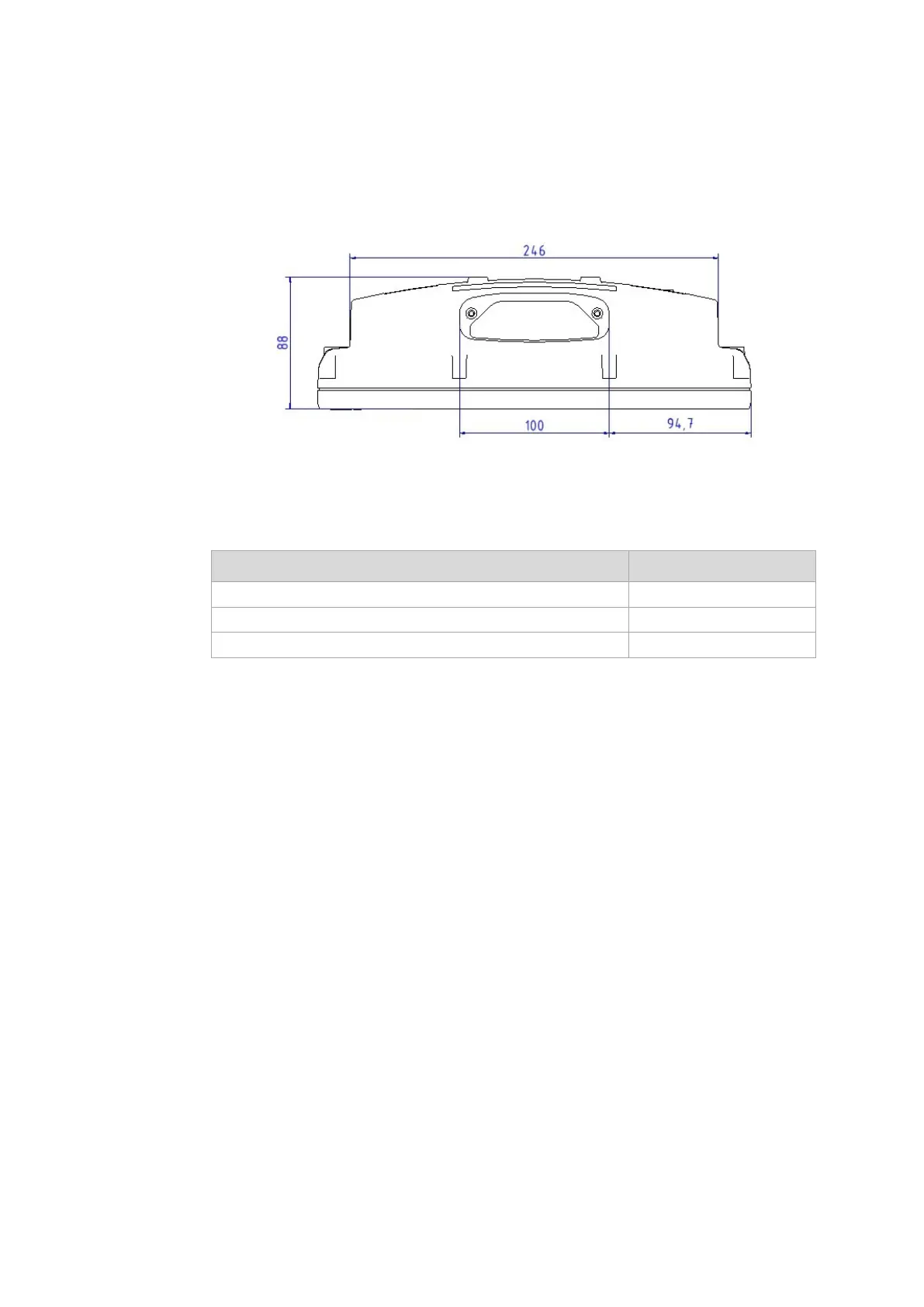

Fig. 14.4: Dimensions DLT-V8310 standard resistive touchscreen, top view
The installation depth of the devices varies depending on the type of touchscreen:
Device type Building depth
DLT-V8310 standard resistive touchscreen 88 mm (see figure)
DLT-V8310 sunlight readable resistive touchscreen 89.4 mm
DLT-V8310 PCT touchscreen 89.5 mm
