Advantech-DLoG DLT-V8310 - GPS Receiver (Optional); Fig. 10.7: GPS Receiver (Optional)

Optional equipment/accessories
Advantech-DLoG DLT-V83 Series Manual V1.31 Page 115 of 178
10.13. GPS receiver (optional)
With the optional GPS receiver the DLT-V83 can be used for GPS navigation.
The GPS receiver has an integrated antenna for position data of the Global Positioning
System (GPS) and communicates with the DLT-V83 via USB interface.
Installation information is included with the GPS receiver.
We recommend using only a GPS receiver approved by Advantech-DLoG.

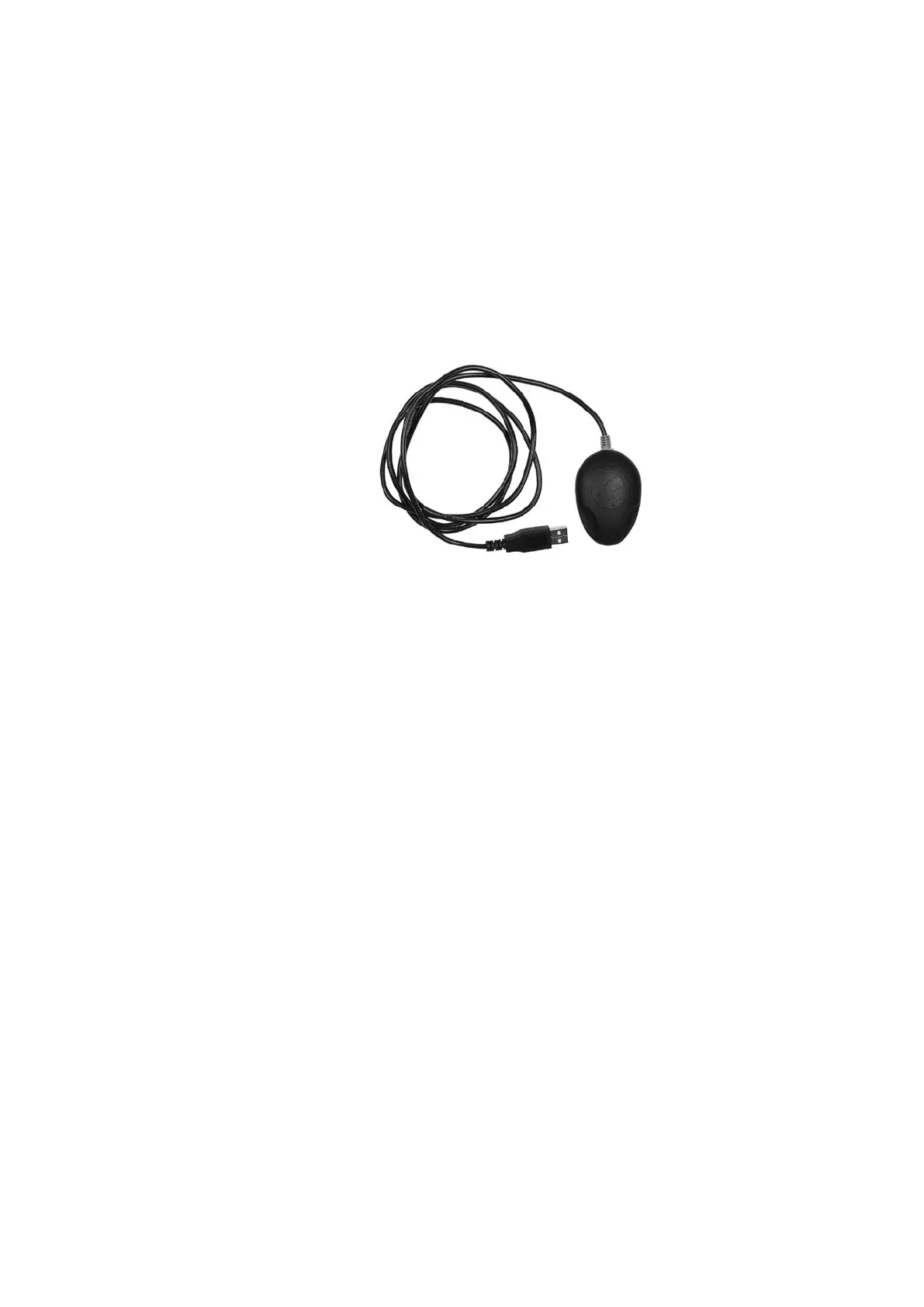

Fig. 10.7: GPS receiver (optional)
Properties:
− Detects the signals of up to 50 satellites simultaneously
− Supports DGPS, WAAS, EGNOS and MSAS
− Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
− IPX6 protection class
− LED indicator for displaying the GPS status
− Cable length: 1.50 m
− Operating temperature: -40 up to +85 °C
