10.9. External WWAN antenna, remote (optional)

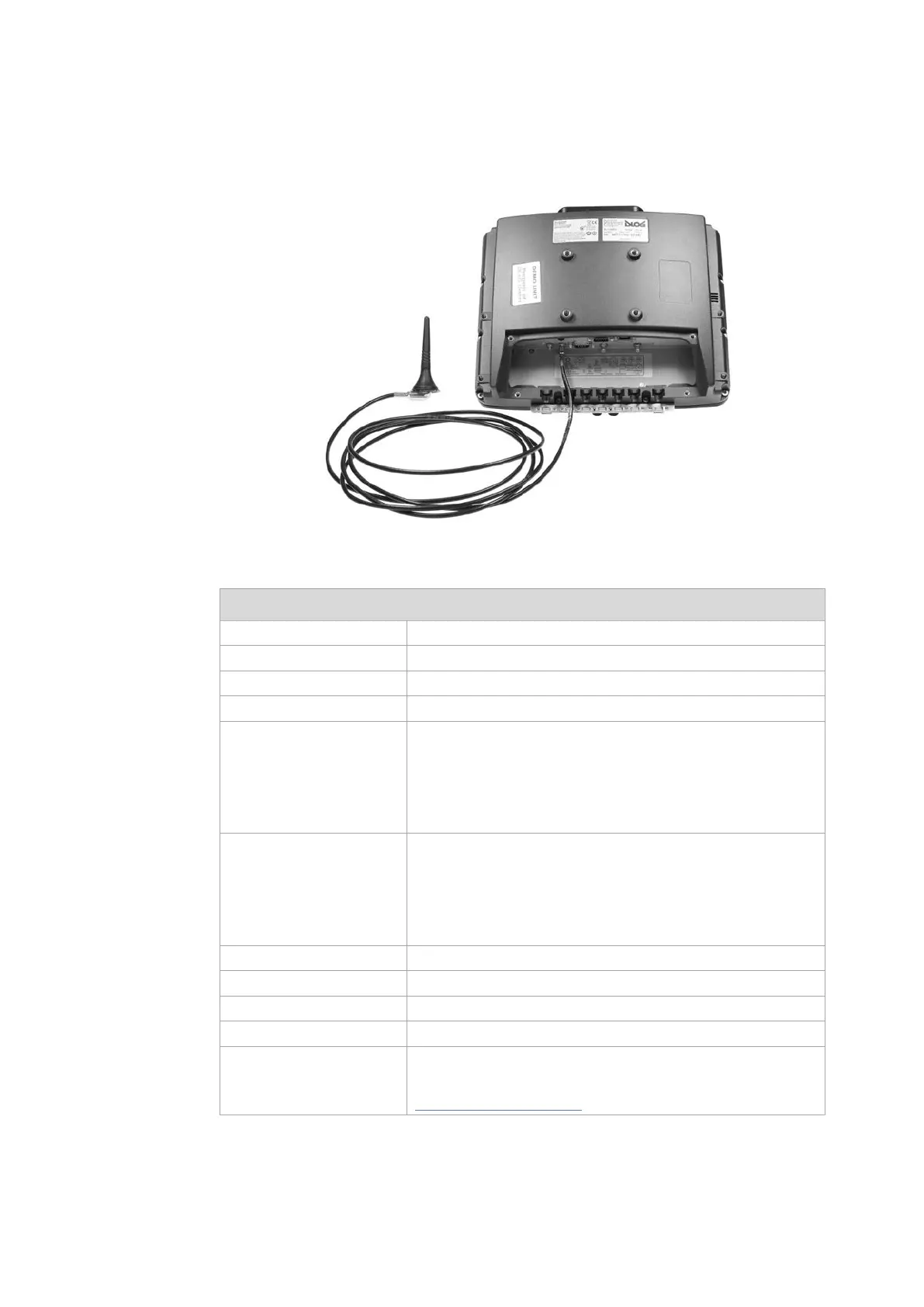

Fig. 10.6: Remote WWAN antenna (optional)
Technical data
Application WWAN 3G-Technology
Mounting location For detached installation, e.g. on the roof of the forklift
Number of antennas 1
Type Omnidirectional antenna
Frequency range
transmitting (TX)
AMPS: 824 to 849 MHz
GSM 900: 880 to 915 MHz
GSM 1800: 1710 to 1785 MHz
GSM 1900: 1850 to 1910 MHz
UMTS: 1900 to 2025 MHz
Frequency range
receiving (RX)
AMPS: 869 to 894 MHz
GSM 900: 925 to 960 MHz
GSM 1800: 1805 to 1880 MHz
GSM 1900: 1930 to 1990 MHz
UMTS: 2110 to 2170 MHz
Antenna gain Typically 0 dBi (5 dBi)
Impedance 50 Ω
Polarization Vertical/Horizontal
Dimensions 33 mm x 89 mm
Maximum transmitting
power
Class 1, 4, E2* + typically 0 dBi (5 dBi) (antenna gain)
*specification taken from:
www.sierrawireless.com (Feb 2015)
