Configuration

Advantech-DLoG DLT-V83 Series Manual V1.31 Page 55 of 178

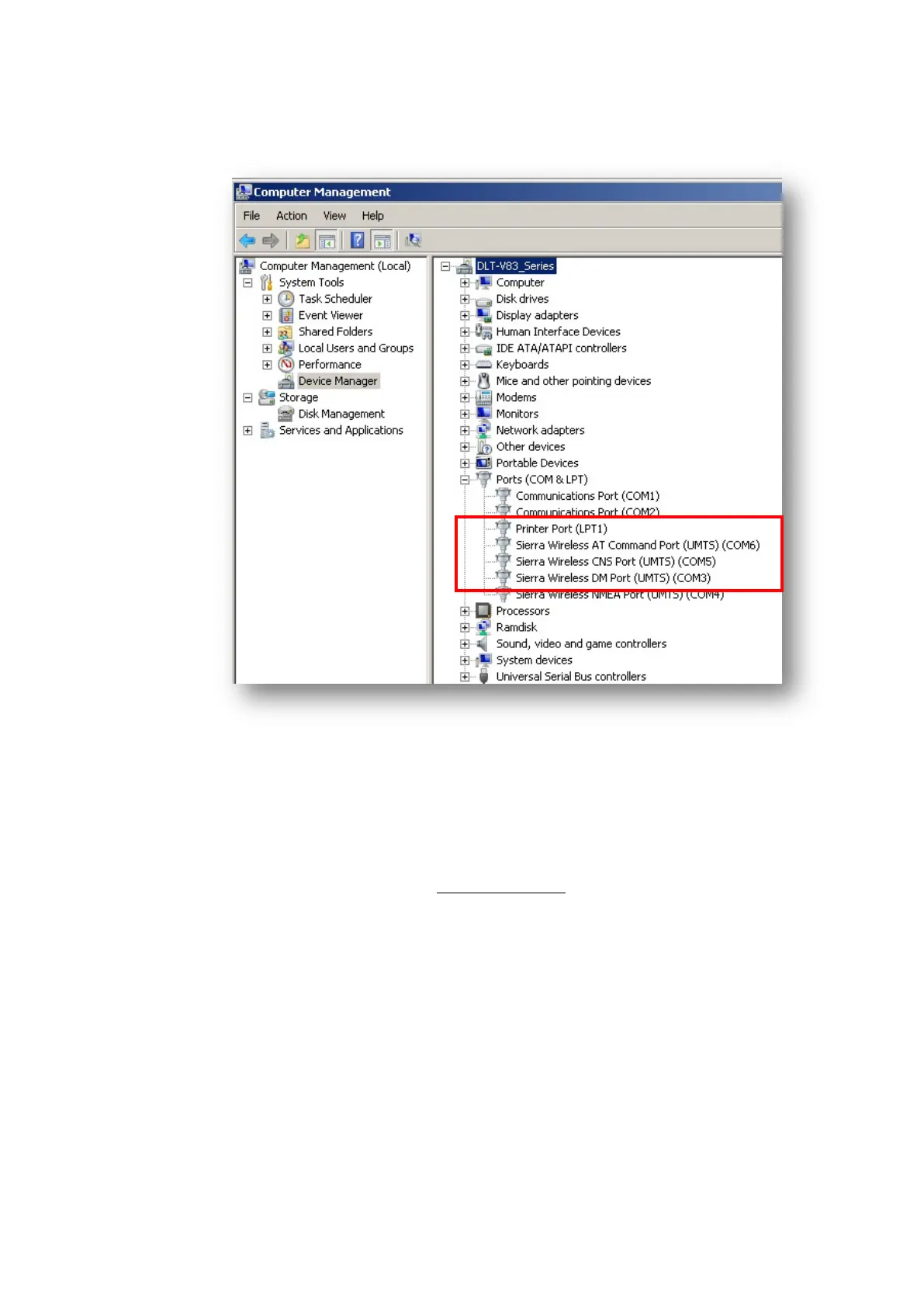

Fig. 6.10: WWAN driver installation, COM port

After the installation, the COM ports should have been set up as shown in the figure

above.

 To complete the installation, restart the terminal.
