Configuration

Page 64 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG

6.7. CAN and digital I/O settings (optional)

To configure and test the CAN and digital I/O settings, the “IXXAT” driver is used. It is

available at www.advantech-dlog.com/driver (Directory Advantech-DLoG Products ->

Additional-Drivers-Software).

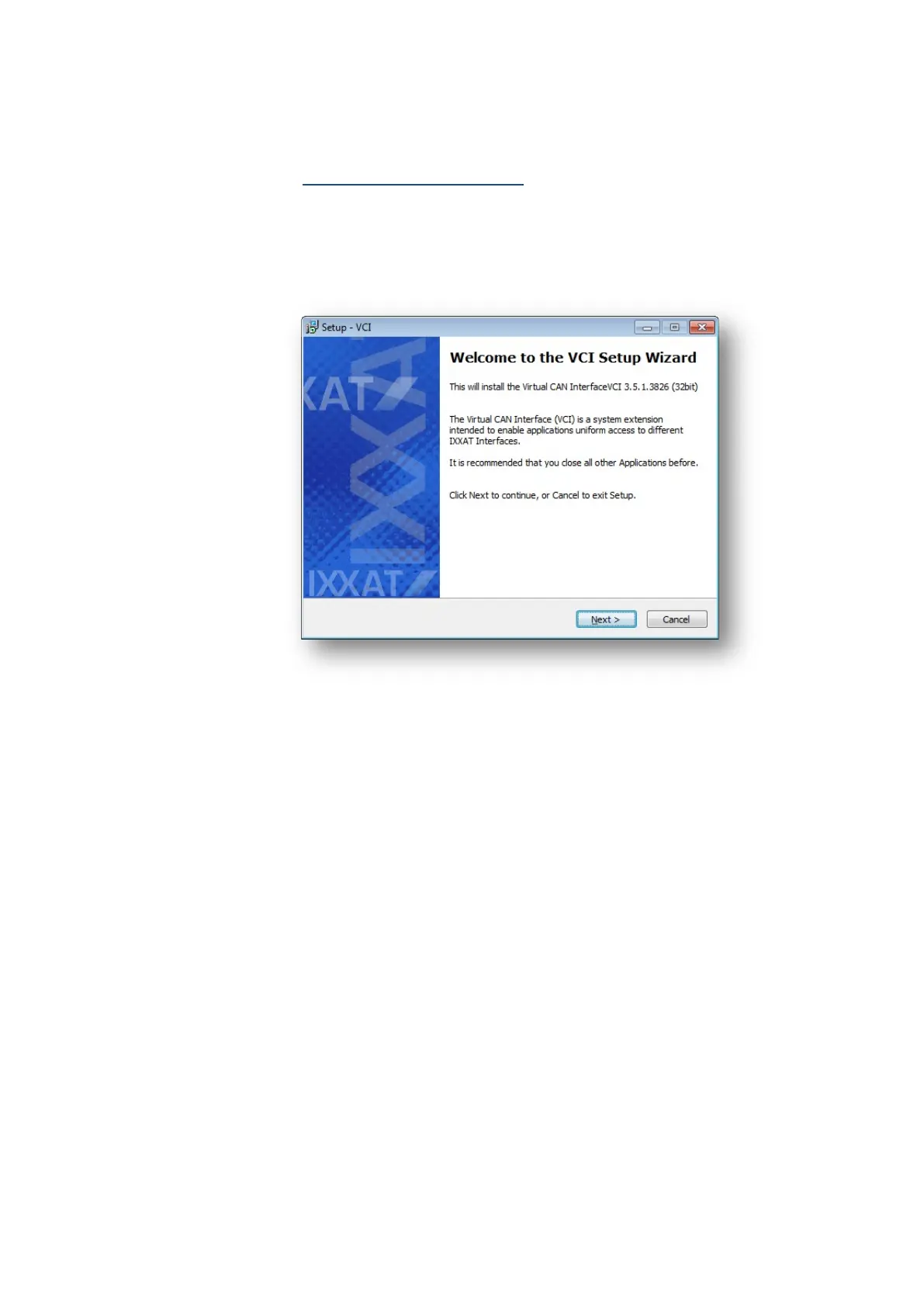

Fig. 6.26: Start of the IXXAT driver installation

When installing the “IXXAT”, configuration and test tools are copied to the DLT-V83.
