Mounting (mechanical and electrical)

Advantech-DLoG DLT-V83 Series Manual V1.31 Page 85 of 178

7.8.4. Attaching the cable cover (without integrated UPS)

 Carefully mount all cables, see

Section7.8.3. Attaching cable

grommets and fixing strain relief in

place.

 Place the cable cover in the DLT-

V83 housing slot.

 Place 4 cylinder head screws ISO

4762-M4x10-A2 in the holes of the

cable cover.

 Loosely tighten the screws.

 Then fully tighten the screws with

3 Nm torque crosswise.

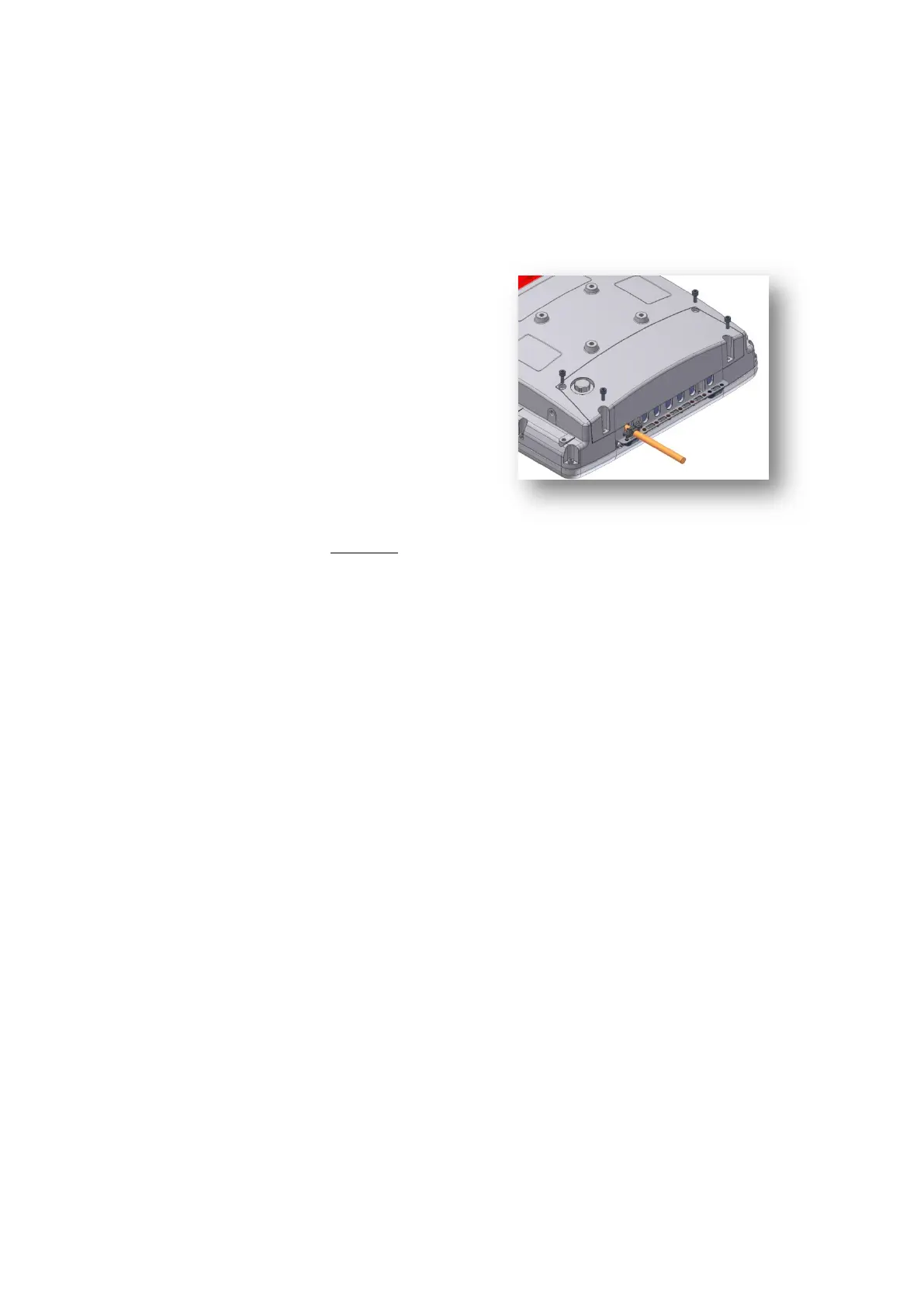

Fig. 7.13: Screwing the cable cover into place
