14.17. VESA drill holes

VESA-compatible drilling patterns for the RAM attachment and swivel joint brackets

are located on the rear side of the DLT-V83.

14.17.1. DLT-V8310

Dimensions without add-ons (in mm):

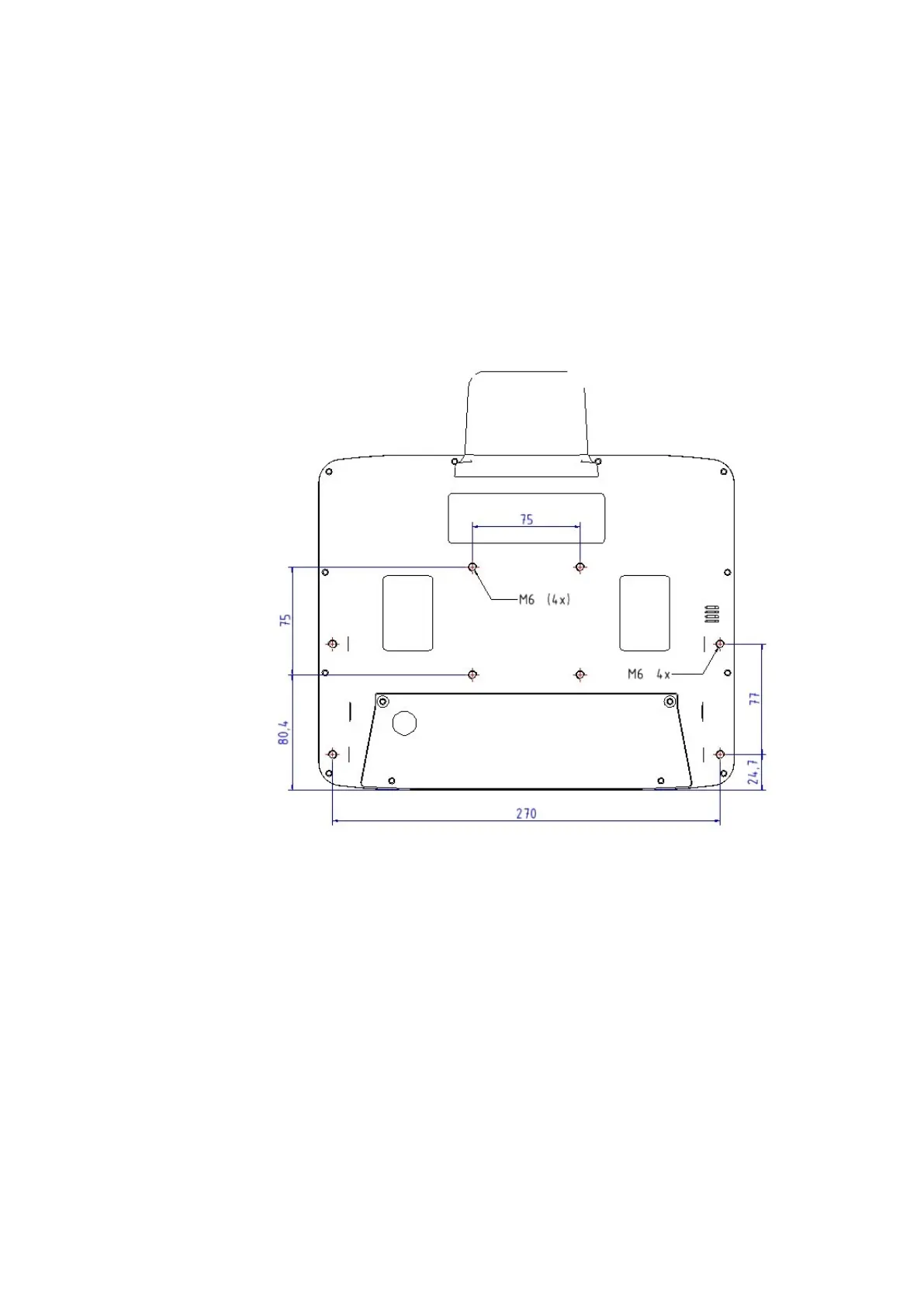

Fig. 14.11: Position of the VESA drill holes DLT-V8310

Depth of thread: M6 x 6mm.
