11.4. CAN, digital I/O and second Ethernet interface (optional)
CAN, Digital In/Out and LAN Ethernet is available as an optional expansion interface
package. At the lower right in the illustration is the position of these interfaces on the
DLT-V83 connector panel:

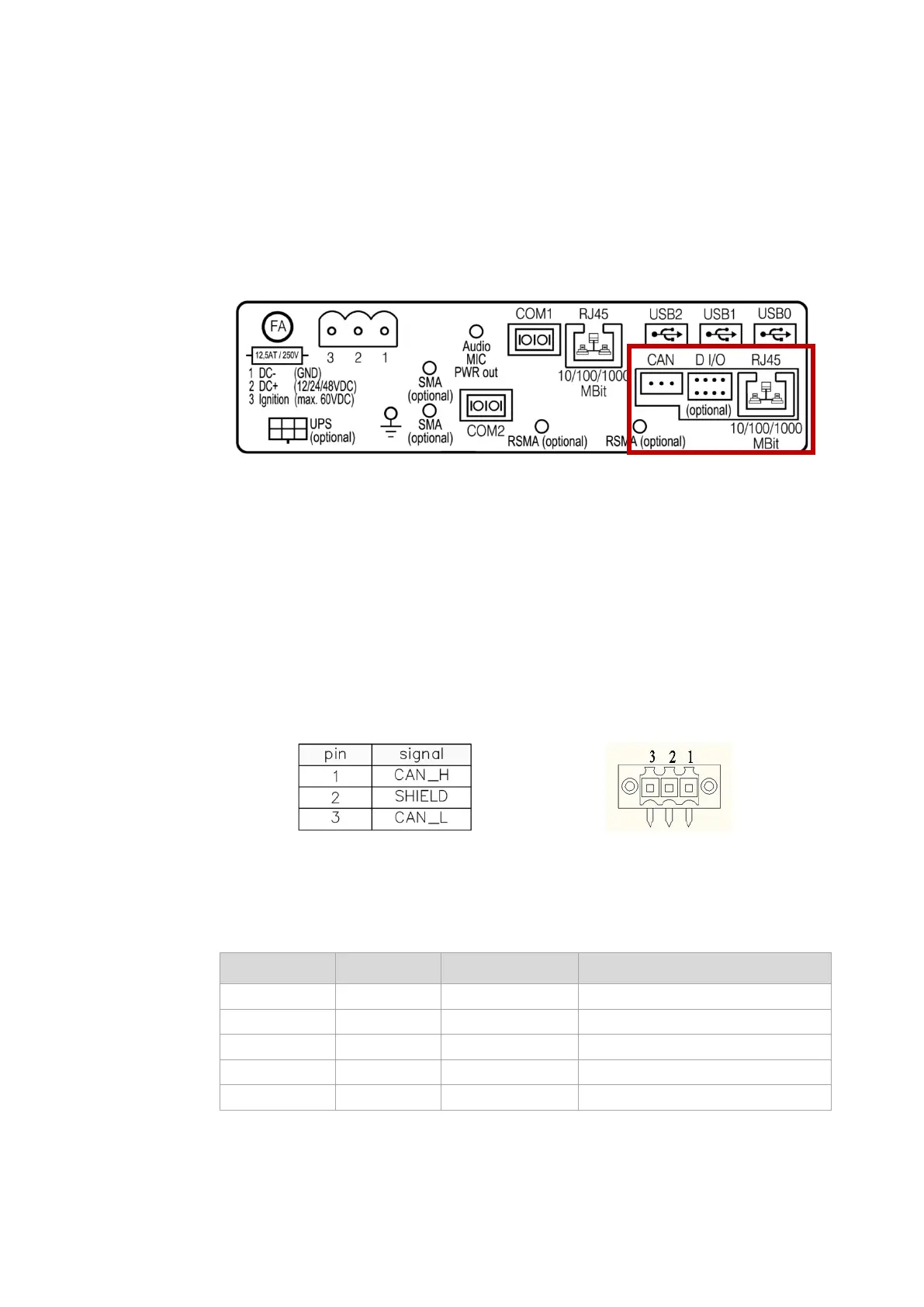

Fig. 11.2: CAN, Digital In/Out and second Ethernet interface
11.4.1. CAN interface
The CAN interface is galvanically separated from the overall system. A matching driver
is integrated in the operating system. An API description is available upon request.
Contact your Advantech-DLoG sales representative if necessary.
Fig. 11.3: Pin assignment of CAN interface
Matching connectors (examples):
Manufacturer Series Order no. Description
Weidmüller BL 3.5/180F 1606650000 BL 3.50/03/180F SN OR BX
Weidmüller BL 3.5/180F 1615790000 BL 3.50/03/180F SN BK BX
Weidmüller BL 3.5/180F 1740721001 BL 3.50/03/180F SN OR BX PRT
Weidmüller BL 3.5/180 1597370000 BL 3.50/03/180 SN OR BX
Weidmüller BL 3.5/90 1638790000 BL 3.50/03/90 SN BK BX
