Power supply units, pin assignment, power supply

Advantech-DLoG DLT-V83 Series Manual V1.31 Page 89 of 178

8.1. Integrated DC power supply unit

An optional, integrated wide-range power supply unit is available for all DLT-V83

devices.

8.1.1. DC voltage supply connection

Version: Phoenix Combicon, 3-pin.

External view:

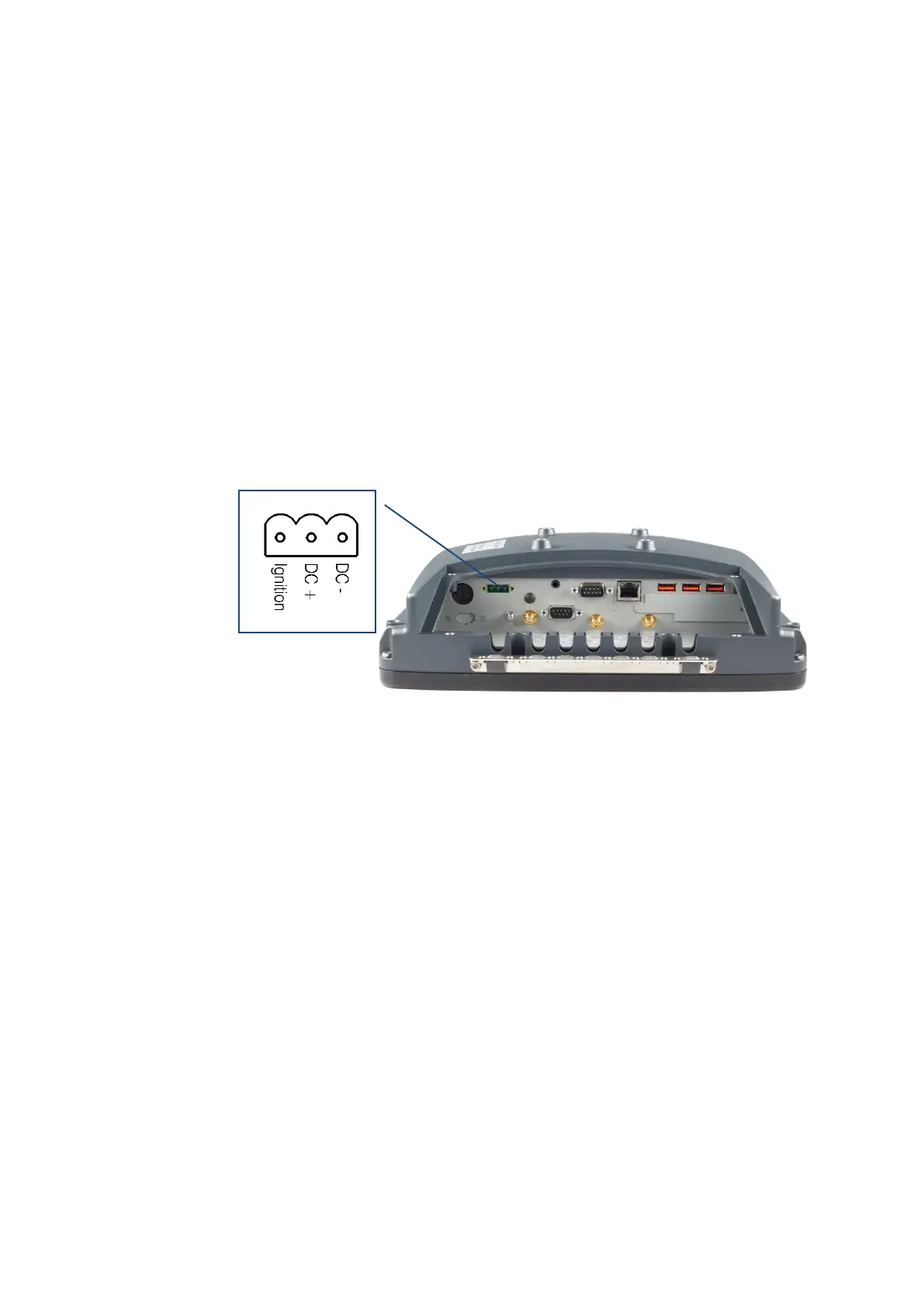

Fig. 8.1: DC power supply connector with connector detail view

Explanation:

Ignition on means that a control signal has to be routed to this connection (e.g., ignition

of a vehicle), that matches the supply voltage level and is able to supply at least 1 W to

the DLT-V83. The signal reference is DC-.
