Operating the touchscreen, front keys

Page 40 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG

5.4. DLT-V83 front keys with PCT touchscreen

5.4.1. Overview of the operating elements on the front side

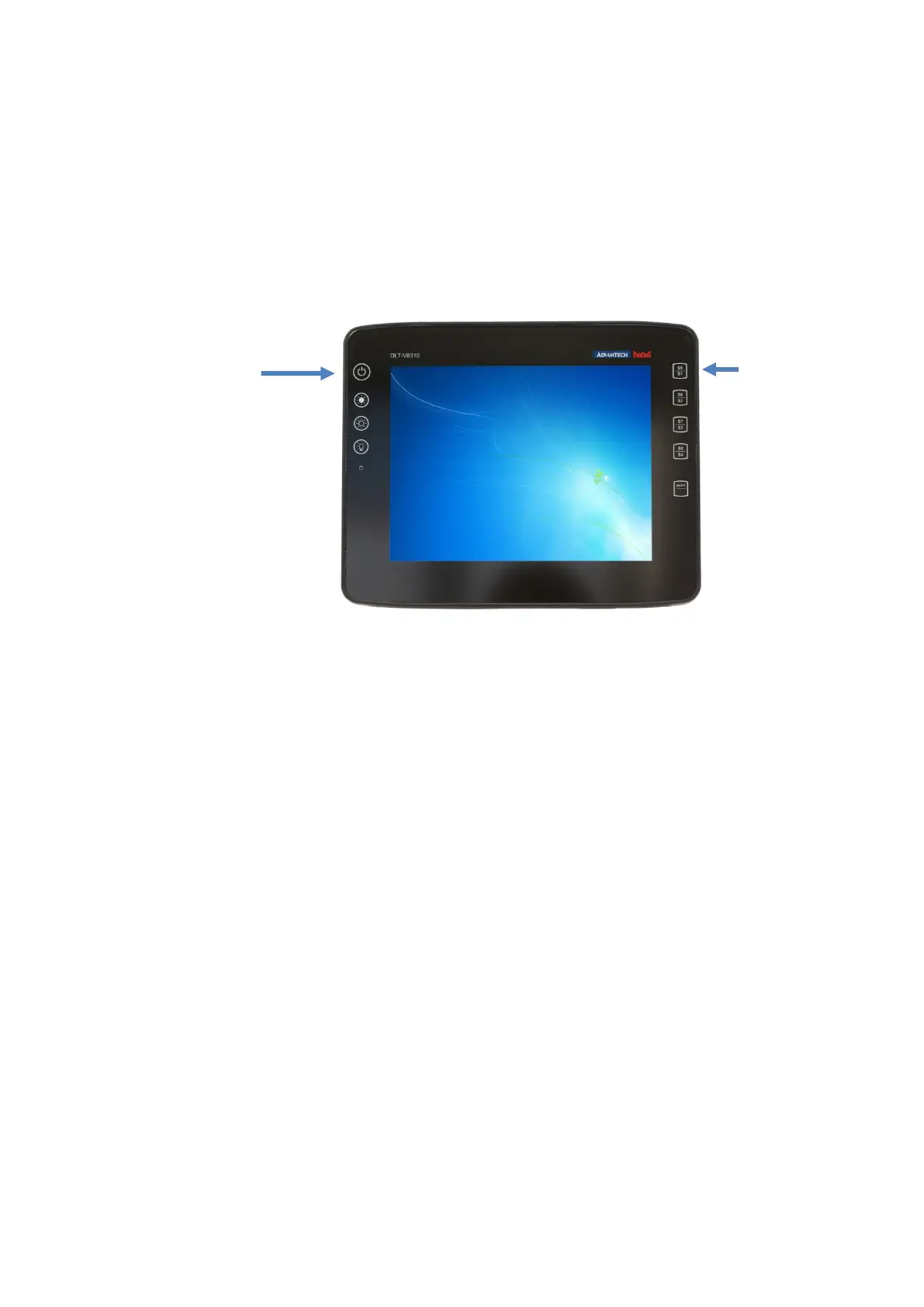

Fig. 5.3: Operating elements front side DLT-V8310 with PCT touchscreen

Front keys:

- Turn on/off

- Display brighter

- Display darker

- Backlighting on/off

Front keys:

- Special keys

- Shift
