Mounting (mechanical and electrical)
Page 82 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG
Further procedure:
 Connect the appropriate
cable grommets to all
cables that will be
connected to the DLT-
V83.

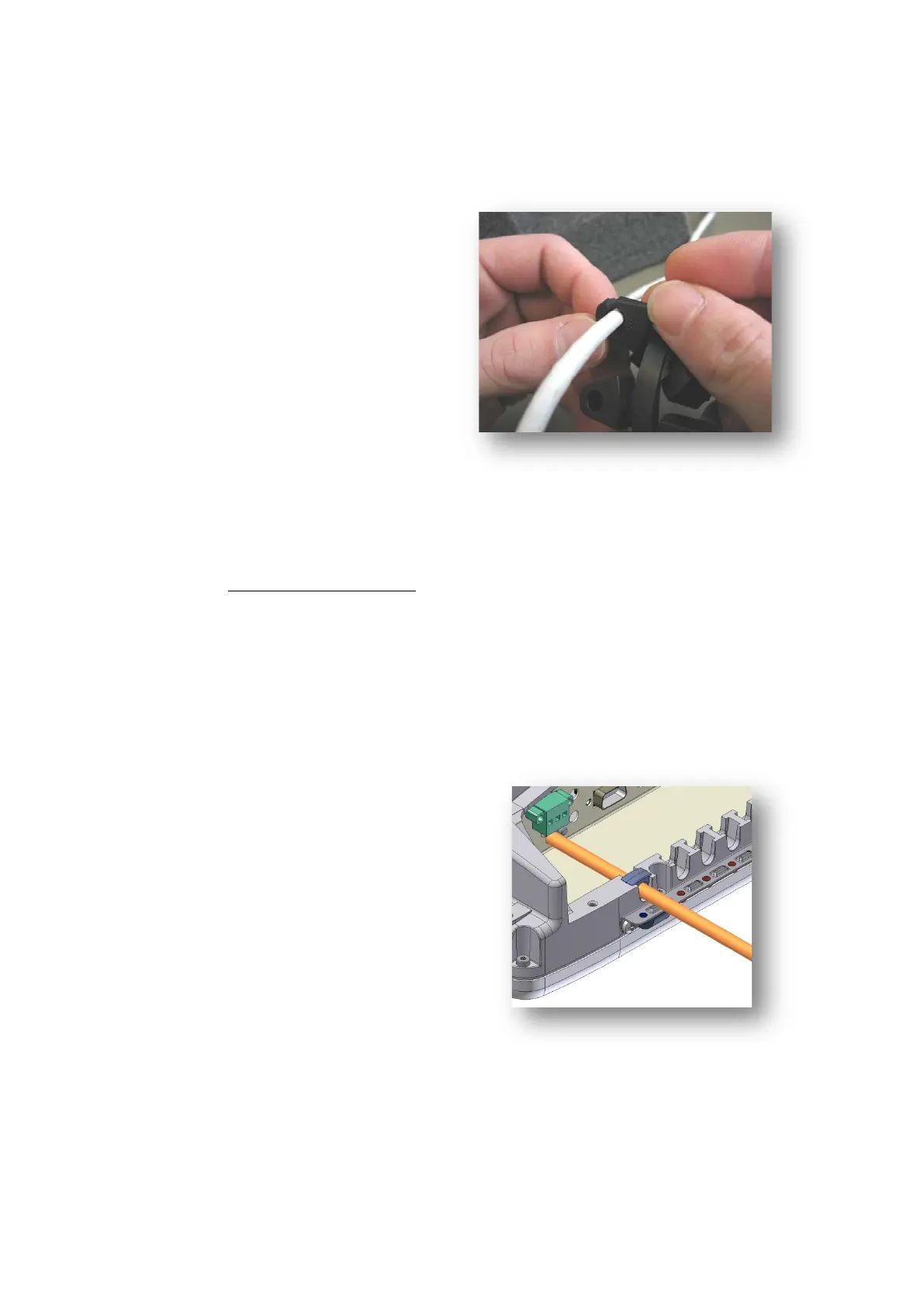

Fig. 7.7: Example cable grommet
 Insert all cables into the DLT-V83 connection points.
 Insert the cable grommets and cables into the outlets of the strain relief rail.
Tips for running the cables:
Try to make a small bend (a loop) when laying the cables. This supports the strain
relief and prevents the cables from being loosened at the connection points when too
much force is exerted.
Exception:
The power supply cable is
relatively stiff and should be
straight (see figure).
 Try to lay all cables parallel
to each other without
crossing each other.
Fig. 7.8: The power supply cable, fit with a cable
grommet, in the strain relief rail
