Mounting (mechanical and electrical)

Page 80 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG

7.8.2. Required components

− Cable cover of the DLT-V83 (optional with integrated UPS battery)

− 4 fastening screws (cylinder head screws ISO 4762-M4x10-A2)

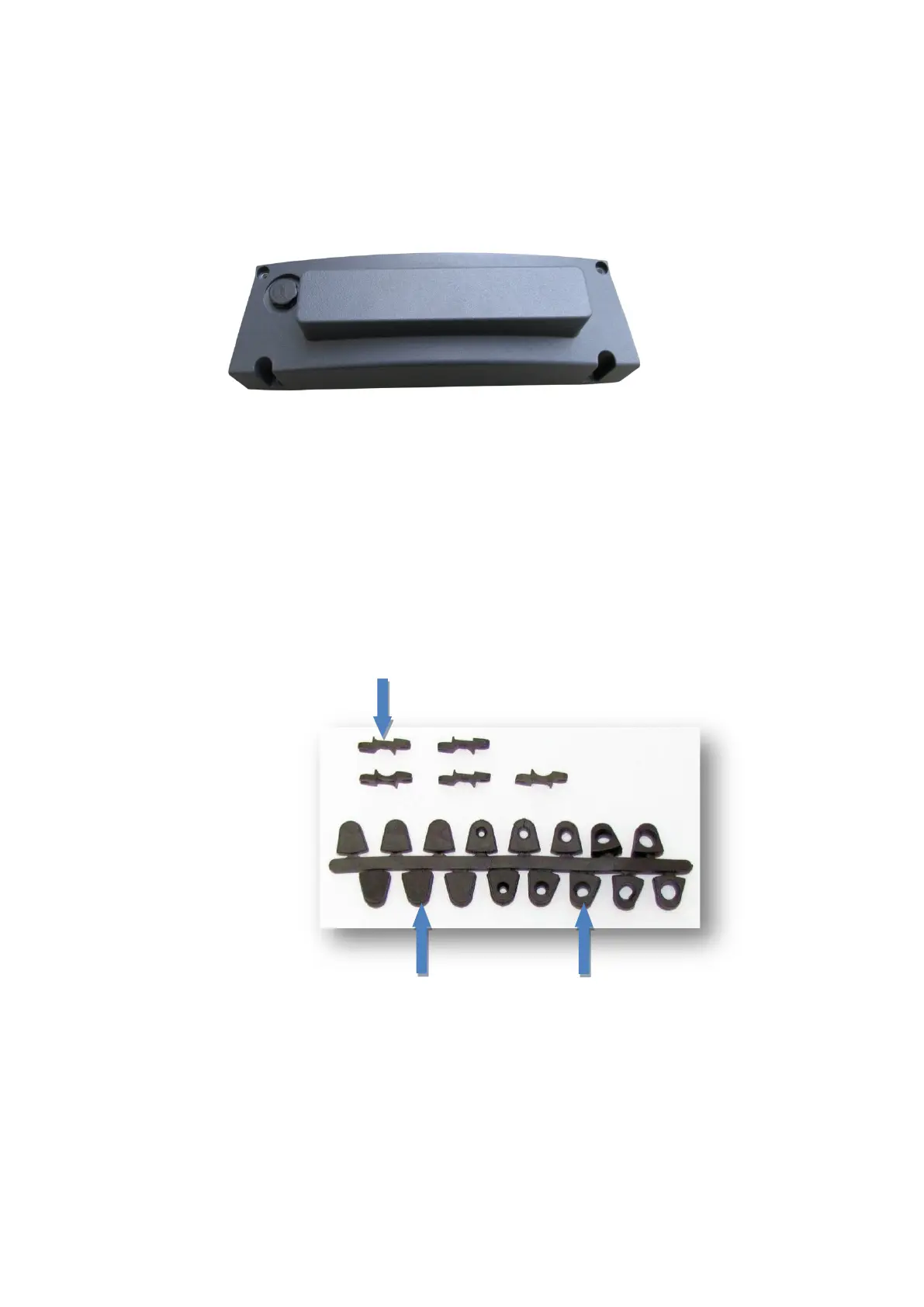

Fig. 7.4: Cable cover with integrated UPS battery (optional)

− Cable clips and mounting screws (cylinder head screws ISO 4762-M3x12-A2)

− Cable sealing set consisting of dummy grommets and gradually widened cable

grommets (3.5 mm to 8.0 mm; in 0.5 mm ascending increments)

Fig. 7.5: Dummy grommets and cable grommets for various cable diameters

Cable grommets, open/broken

through at one position

Diameter of the cable grommet is

specified on each grommet

(3.5 mm to 8.0 mm)

Cable clips

Dummy

grommets
