Advantech-DLoG DLT-V8310 - Pressure Compensation Element; Fig. 7.15: Pressure Compensation Element

To Next Page

To Previous Page

Mounting (mechanical and electrical)

Advantech-DLoG DLT-V83 Series Manual V1.31 Page 87 of 178

7.8.6. Pressure compensation element

The DLT-V83 cable cover has a pressure compensation element.

 Do not modify or remove the pressure compensation element; doing so would

make the device leak and the IP protection would no longer be ensured.

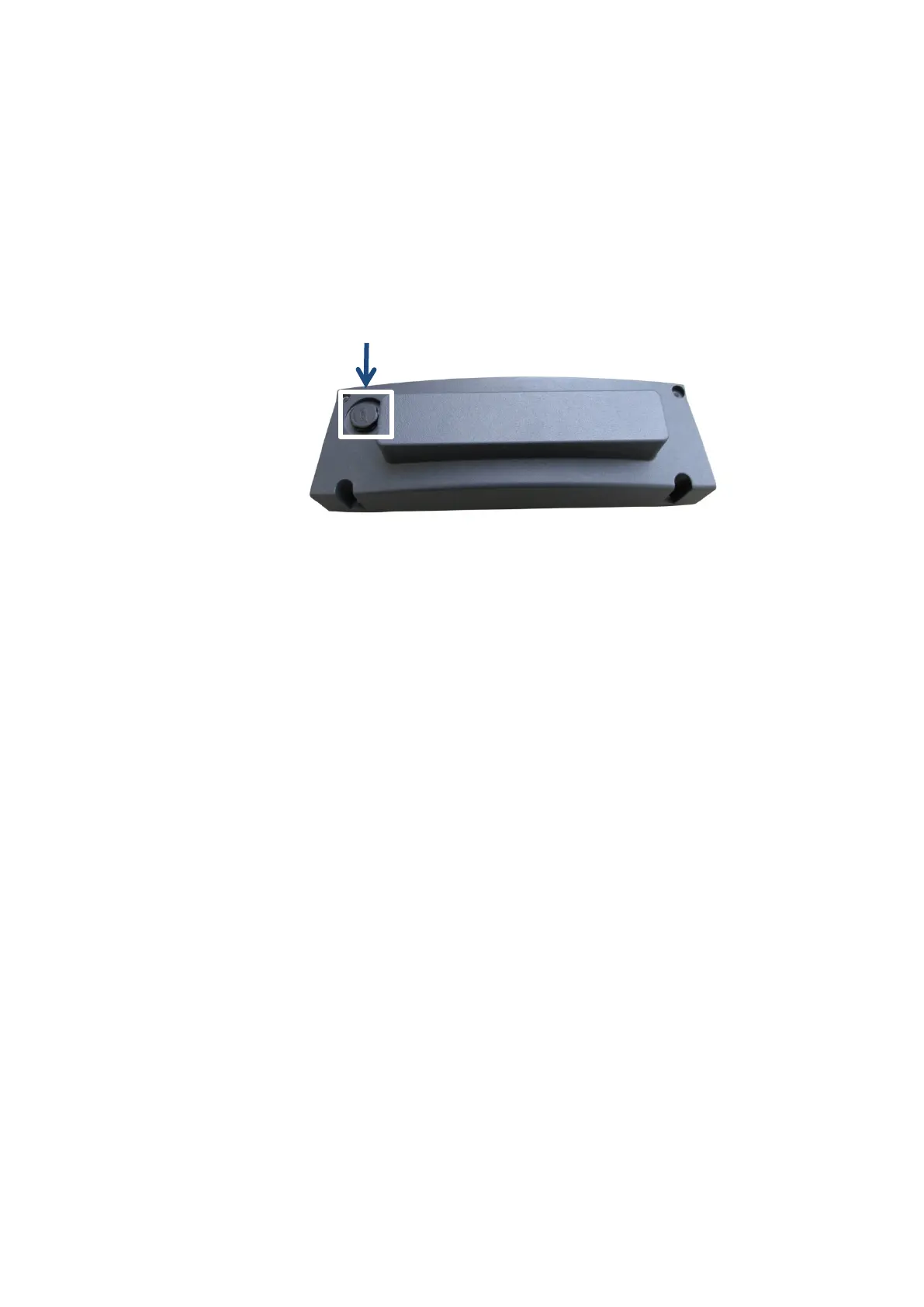

Fig. 7.15: Pressure compensation element - Do not modify or remove!
