Mounting (mechanical and electrical)
Page 84 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG
TIP:
The holes for the screws are located to the left and right at different heights depending
on how the cable clips are rotated or placed (see detailed view). This gives you the
option of securing two cable clips located next to each other with a single screw.

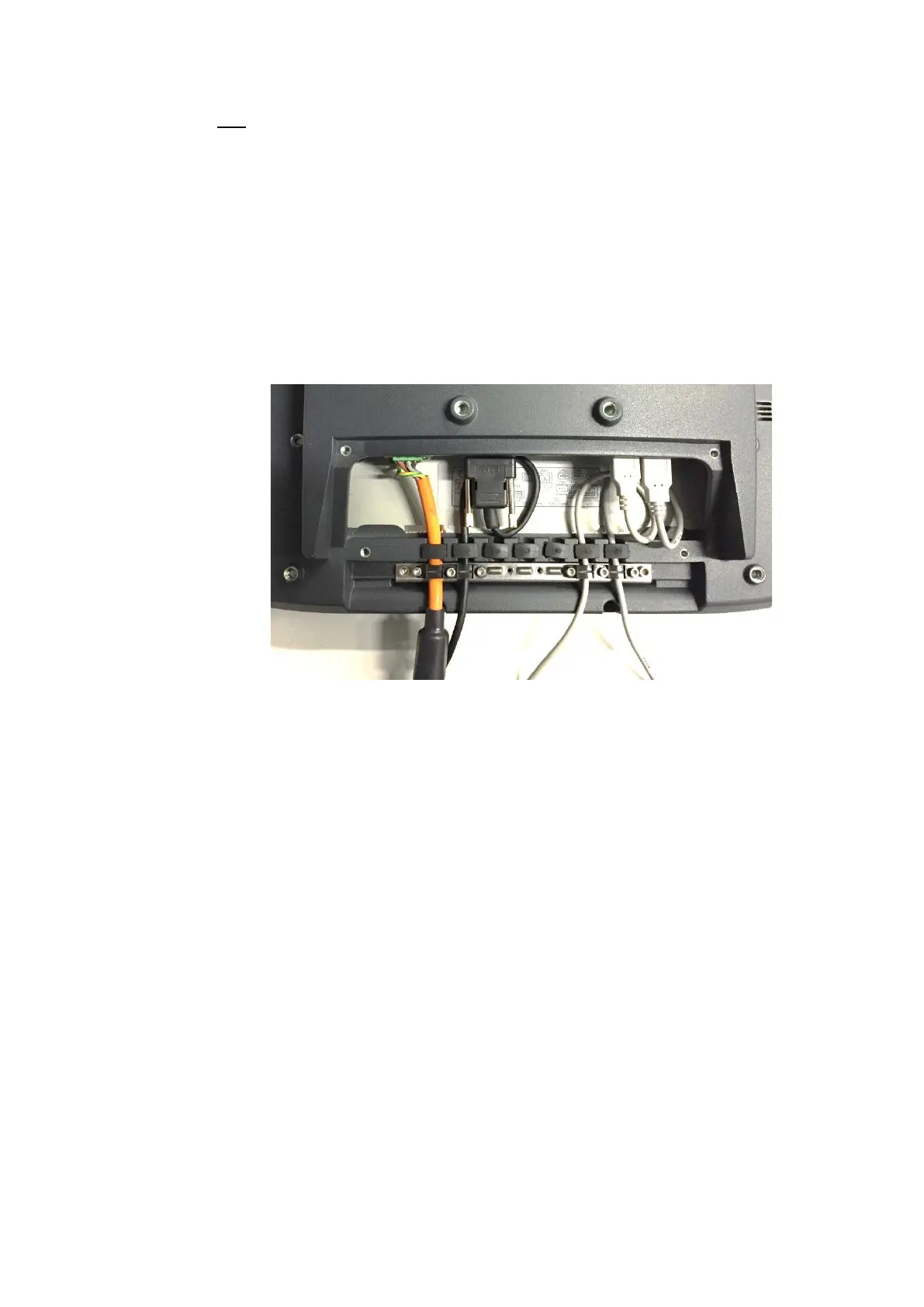

Example: Cables are fixed, dummy grommets are positioned
Fig. 7.12: Cables and dummy grommets
