Configuration

Advantech-DLoG DLT-V83 Series Manual V1.31 Page 53 of 178

6.5.2. Installation, configuration, test

The following information describes the installation on 32-bit operating system.

The installation on 64-bit systems is done in the same manner, only the name of the

files and directories is different.

Driver installation

 Copy Sierra Wireless driver to "C:\Util\".

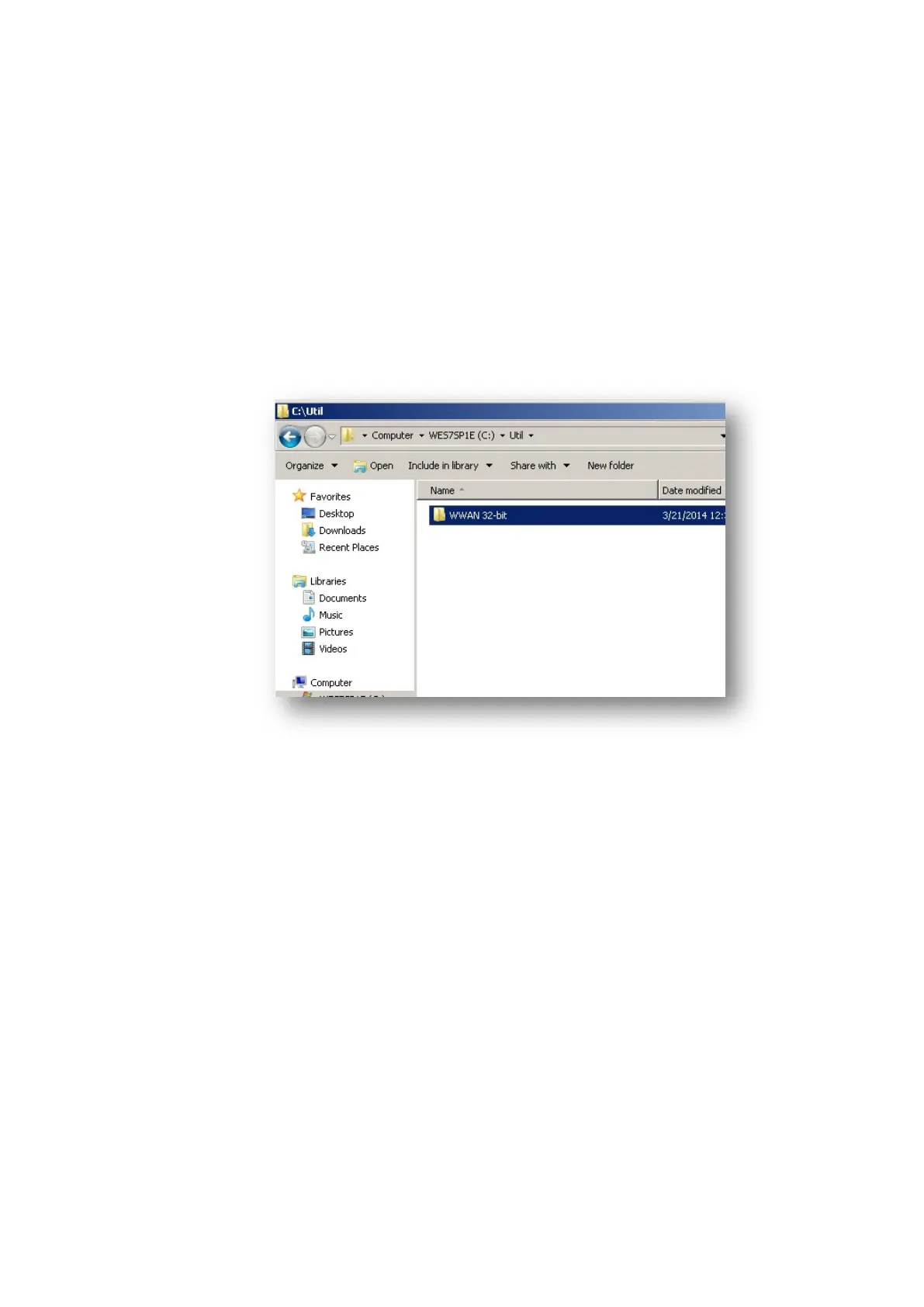

Fig. 6.7: WWAN driver installation, Sierra Wireless driver to C:\Util\
