Configuration

Advantech-DLoG DLT-V83 Series Manual V1.31 Page 57 of 178

 The following is entered under the Advanced tab:

+CGDCONT=1,“IP“,“web.vodafone.de“

Function test GSM / GPS

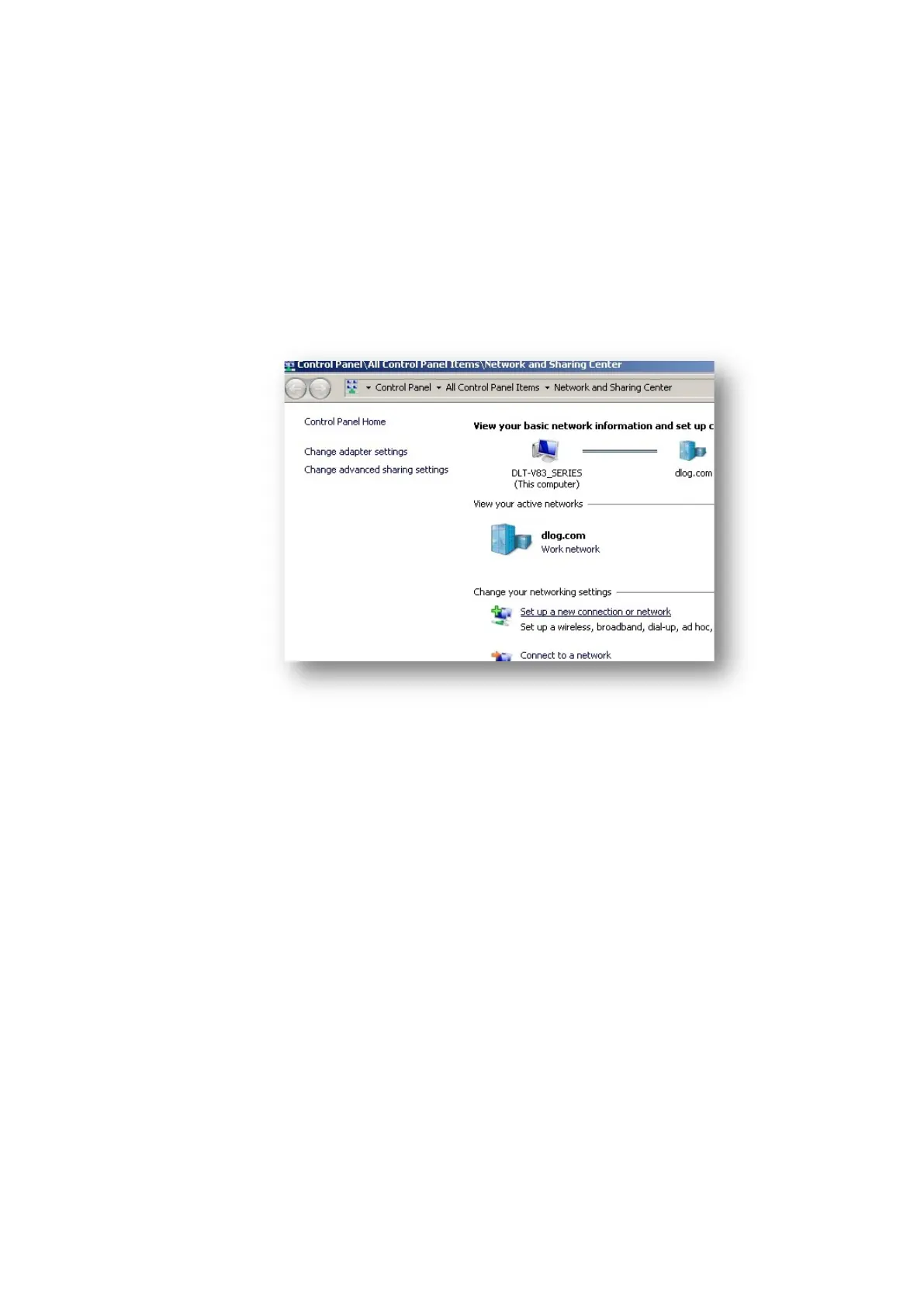

Fig. 6.13: Function test GSM / GPS, Network and Sharing Center

 Open the Network and Sharing Center.

 Open Set up a new connection or network.
